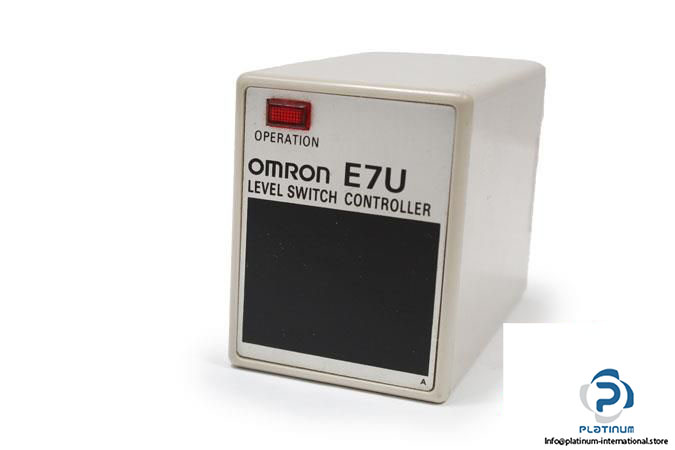

Omron E7U Level Switch Controller

Manufacturer: OMRON

Type: LEVEL SWITCH CONTROLLER

Model: E7U

For Use with: Model E7B

Exclusive Power Supply for: Model E7B CAPACITANCE LEVEL SENSOR

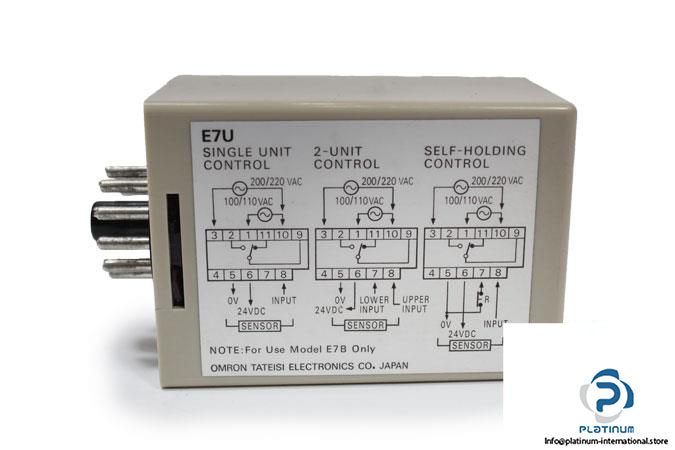

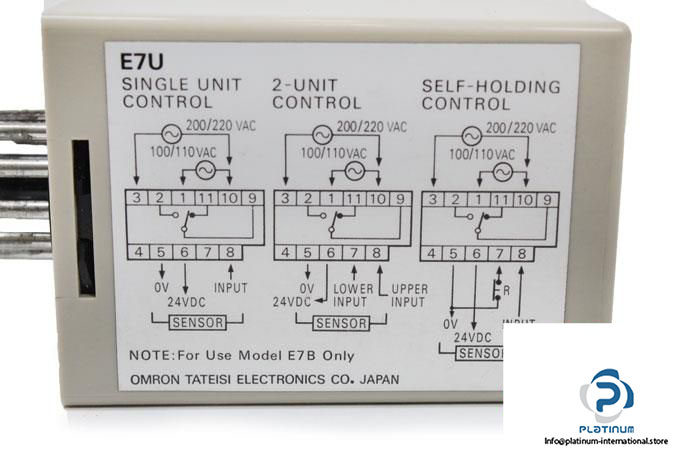

Connecting Methods with E7B: Single-unit Control, 2-unit Control, Self-holding Control

Supply Voltage: 100/110/200/220 VAC, 50/60 Hz

Power Consumption: 4 VA max.

Output Voltage: 24 VDC

Output Current: 35 mA

Control Output: 220 VAC, 2 A /12 VDC, 10 mA

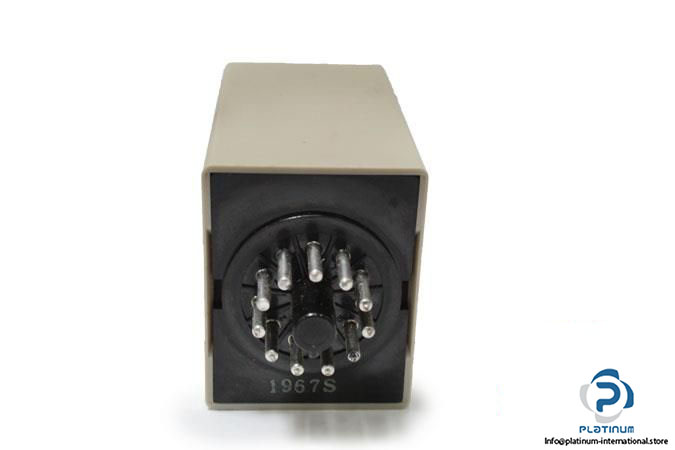

Connection: 11-pin

Ambient Temperature: −10 … 40 °C

Accessories: Retainer/Retractor Clip (Pair)

Weight: 0.2 Kg
