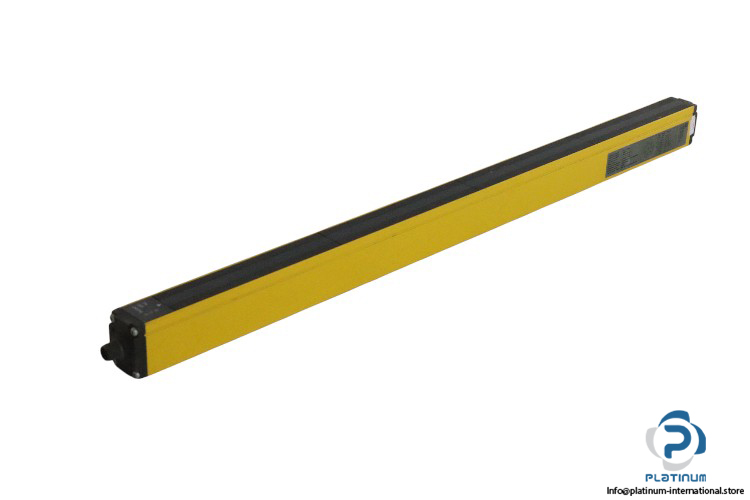

Omron F3S-B242P-D Safety Light Curtain
99,99$
The Omron F3S-B242P-D Safety Light Curtain offers a 0.3 to 5 m sensing range, PNP output, 20 ms response time, and IP65 protection, ideal for industrial safety and automation applications.
Omron F3S-B242P-D Safety Light Curtain
The Omron F3S-B242P-D Safety Light Curtain offers precise and reliable protection for personnel in industrial environments. With a sensing distance range of 0.3 to 5 meters, it provides excellent detection performance in a wide variety of applications. This unit operates with a 24V DC supply voltage and has a maximum current consumption of 400 mA. It features a PNP output for seamless integration with control systems. The optical-axis pitch is 25 mm, ensuring high resolution and accurate detection. The F3S-B242P-D boasts a rapid response time of just 20 ms and has an optical resolution of 30 mm diameter minimum, offering a fast, reliable response to safety breaches. With a robust IP65 degree of protection, this safety curtain is built to withstand harsh industrial environments and ensures dust and water resistance. Designed to operate in temperatures ranging from “10 to 55 °C, this model is ideal for diverse industrial safety applications. Its compact size (30 x 40 mm) allows it to fit into tight spaces, making it a versatile solution for equipment safety.
- Manufacturer: Omron
- Type: Safety Light Curtain
- Model: F3S-B242P-D
Technical Specifications:
- Sensing Distance: 0.3 to 5 m
- Supply Voltage: 24V DC
- Current Consumption: 400 mA max
- Output: PNP
- Optical-axis Pitch: 25 mm
- Response Time: 20 ms
- Optical Resolution: 30 mm dia min
- Degree of Protection: IP65
- Ambient Temperature: “10 to 55 °C
- Size (Cross Section): 30 x 40 mm
The Omron F3S-B242P-D Safety Light Curtain ensures reliable protection and fast response times, making it an ideal solution for industrial safety and automation systems.
