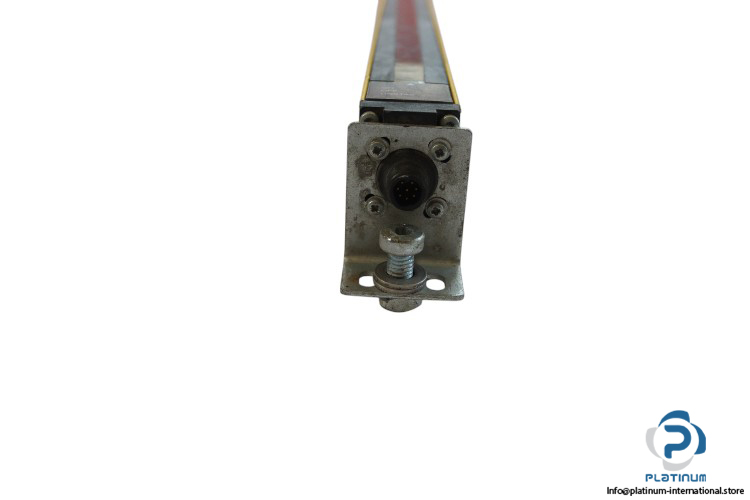

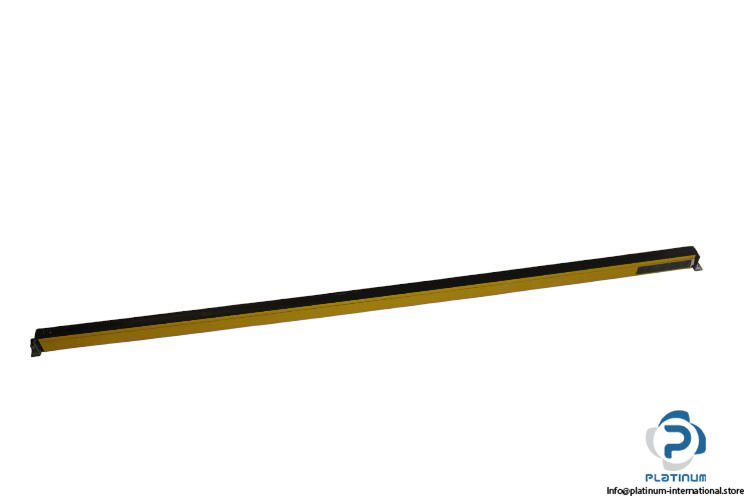

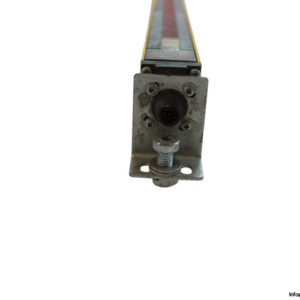

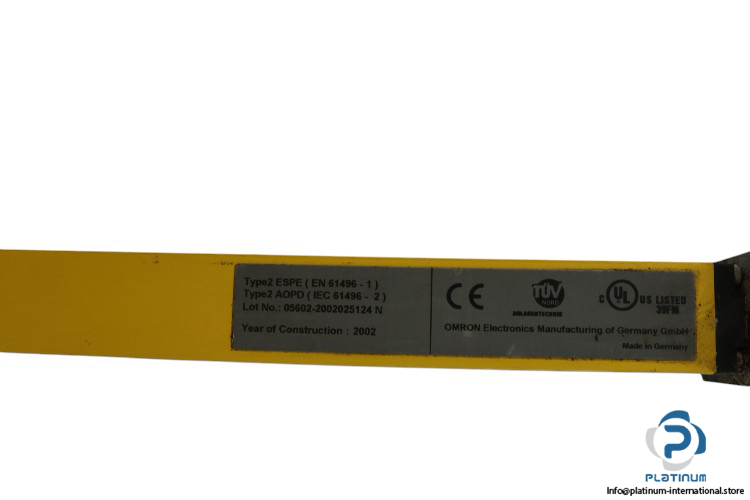

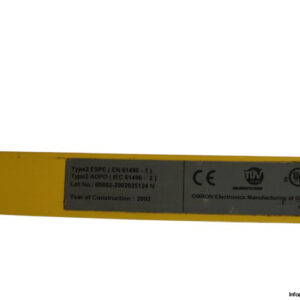

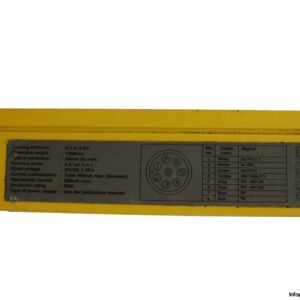

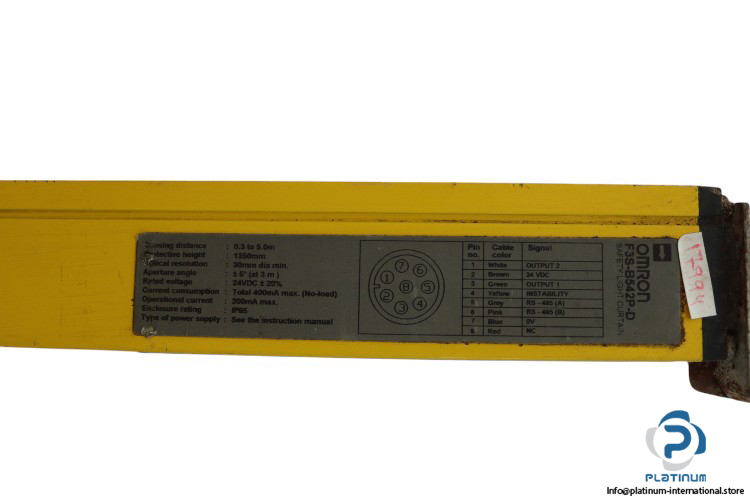

Omron F3S-B542P-D Safety Light Curtain
249,99$
The Omron F3S-B542P-D Safety Light Curtain offers a 0.3 to 5 m sensing range, 24V DC supply, PNP output, 37 ms response time, and IP65 protection, ideal for industrial safety applications.
Omron F3S-B542P-D Safety Light Curtain
The Omron F3S-B542P-D Safety Light Curtain is a high-performance safety solution designed to ensure the protection of personnel and equipment in industrial applications. With a sensing distance range of 0.3 to 5 meters, it offers flexible installation options for a variety of safety applications. The unit operates with a 24V DC supply voltage and has a maximum current consumption of 400 mA. It features PNP output for easy integration into control systems. The safety curtain has an optical-axis pitch of 25 mm, ensuring reliable detection of objects. With a fast response time of 37 ms and an optical resolution of 30 mm diameter minimum, the F3S-B542P-D provides accurate and quick safety responses. Its IP65 degree of protection ensures resistance to dust and water, making it suitable for harsh environments. The safety light curtain operates effectively within an ambient temperature range of -10 to 55 °C. Its compact design (30 x 40 mm) allows easy installation in confined spaces.
- Manufacturer: Omron
- Type: Safety Light Curtain
- Model: F3S-B542P-D
Technical Specifications:
- Sensing Distance: 0.3 to 5 m
- Supply Voltage: 24V DC
- Current Consumption: 400 mA max
- Output: PNP
- Optical-axis Pitch: 25 mm
- Response Time: 37 ms
- Optical Resolution: 30 mm dia min
- Degree of Protection: IP65
- Ambient Temperature: “10 to 55 °C
- Size (Cross Section): 30 x 40 mm
The Omron F3S-B542P-D Safety Light Curtain is an essential safety device for applications requiring rapid response, high reliability, and protection against environmental factors in industrial settings.
