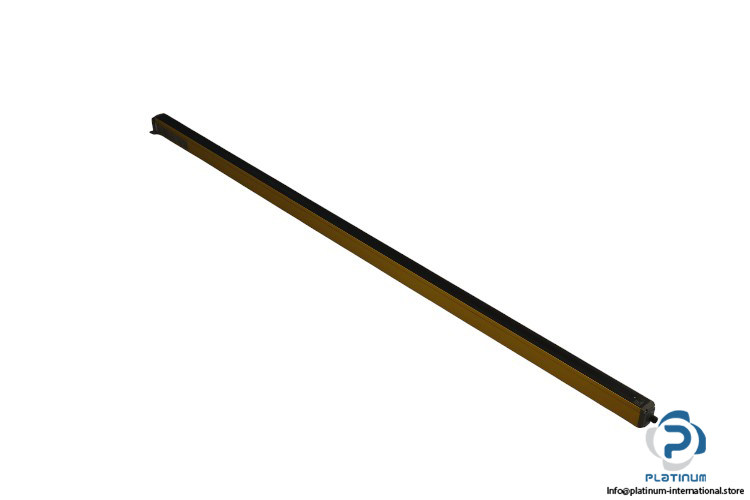

Omron F3S-B542P-L Safety Light Curtain

Omron Safety Light Curtain F3S-B542P-L

The Omron Safety Light Curtain F3S-B542P-L provides reliable safety solutions for industrial applications. With a sensing distance of 0.3 to 5 m and 54 optical axes, this safety curtain ensures secure detection of any obstruction. It features IP66 protection, making it resistant to dust and water, and operates efficiently in a wide temperature range of -10 to 55°C.

Manufacturer: Omron

Type: Safety Light Curtain

Model: F3S-B542P-L

Technical Specifications

• Supply Voltage: 24V DC
• Current Consumption: 600 mA max
• Sensing Distance: 0.3 to 5 m
• Output: PNP
• Optical-axis Pitch: 25 mm
• Response Time: 37 ms
• Optical Resolution: 30 mm dia min
• No. of Optical Axes: 54
• Degree of Protection: IP66
• Ambient Temperature: -10 to 55 °C
