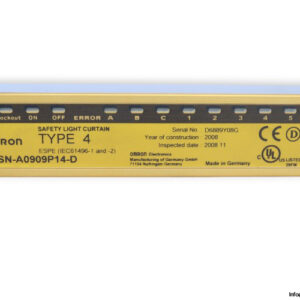

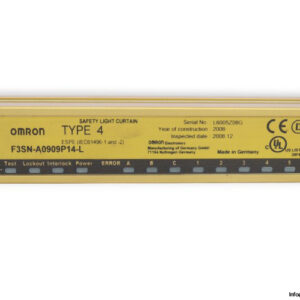

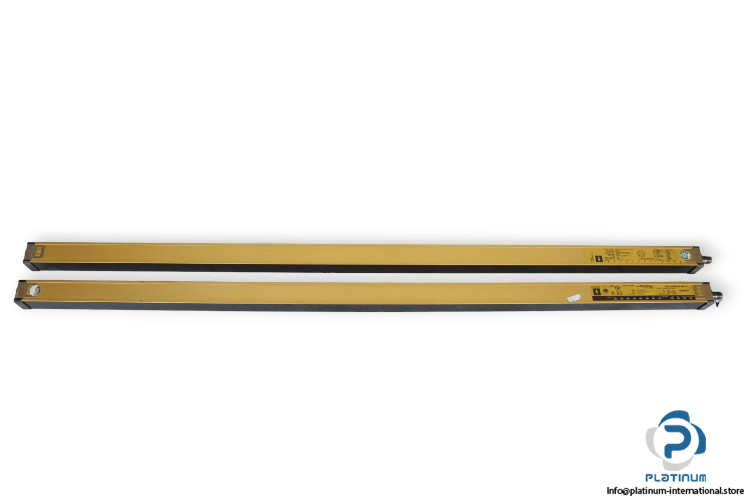

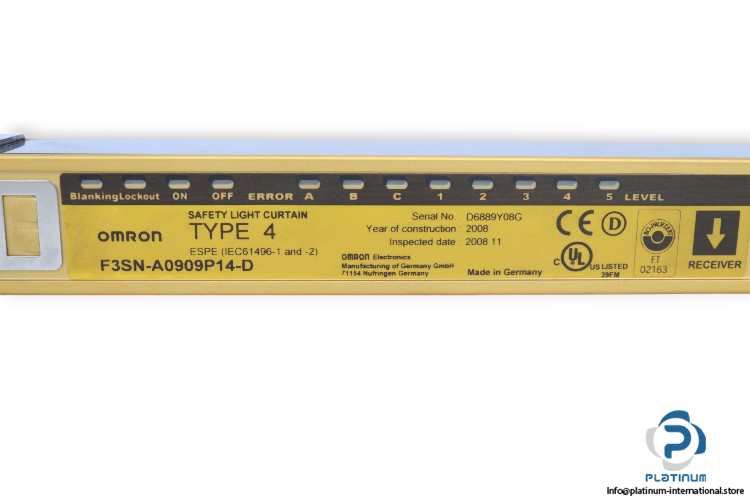

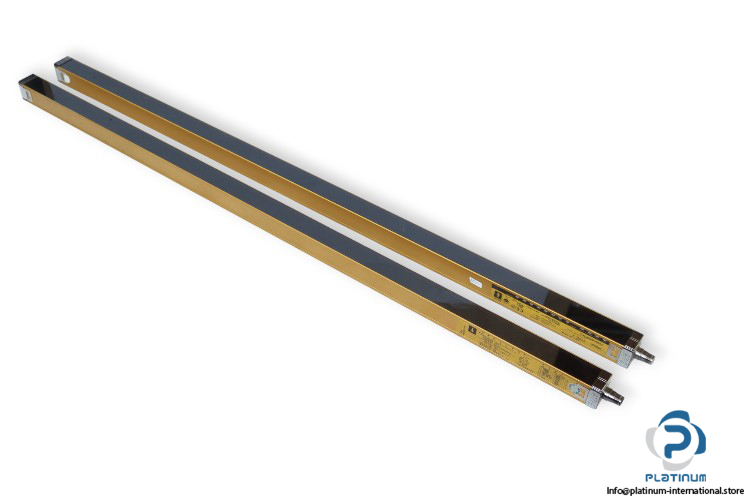

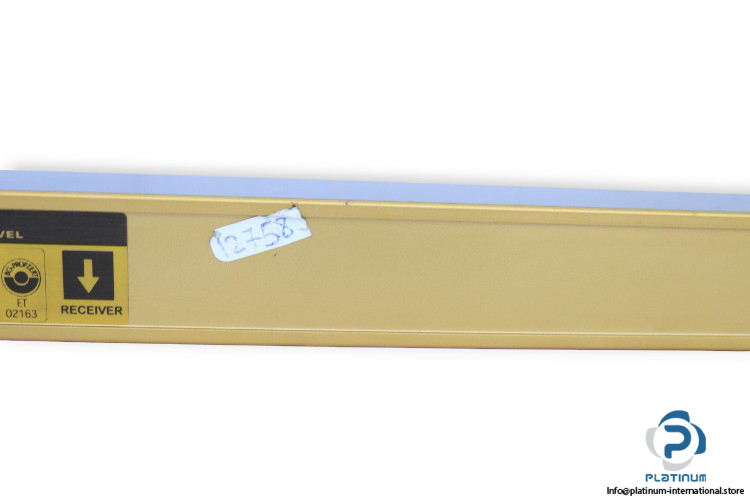

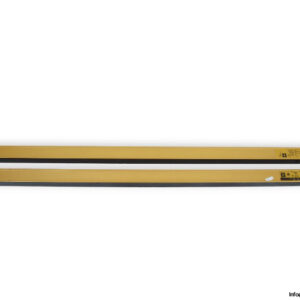

Omron F3SN-A0909P14-D / F3SN-A0909P14-L Multi-Beam Safety Sensor

Omron Safety Light Curtain / Multi-beam Safety Sensor

Omron Safety Light Curtain / Multi-beam Safety Sensor is designed for high-precision, reliable safety in industrial applications. With its multi-beam technology and robust features, it provides optimal protection against access to hazardous areas, ensuring maximum safety in various operational environments. The product is equipped with multiple detection capabilities and a durable construction to meet rigorous standards.

• Manufacturer: Omron
• Type: Safety Light Curtain / Multi-beam Safety Sensor
• MNR: F3SN-A0909P14-D / F3SN-A0909P14-L

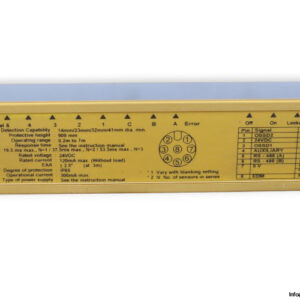

Technical Data:

• Supply Voltage: 24 V DC
• Operating Range: 0.2 / 7.0 m
• Beam Gap (P): 9 mm
• Protective Height: 909 mm
• Detection Capability: 14 mm, 23 mm, 32 mm, 41 mm
• Light Source (Luminous Wavelength): Infrared LED (870 nm)
• Rated Current:
• Emitter: 170 mA max (Without load)
• Receiver: 120 mA max (Without load)
• Operational Current:
• Emitter: 300 mA max
• Receiver: 300 mA max
• Auxiliary Output: One PNP transistor output, load current 50 mA max., residual voltage 2 V max.
• Output Operation Mode:
• OSSD output: Light-ON
• Auxiliary output: Dark-ON (can be changed by the F39-MC11)
• External indicator output: Light-ON (can be changed by the F39-MC11)
• Response Time:
• ON to OFF: 10 ms to 15.5 ms max.
• OFF to ON: 40 ms to 62 ms max.
• Startup Waiting Time: 1 s max.
• Ambient Temperature During Operation: -10 / 55°C
• Degree of Protection: IP65

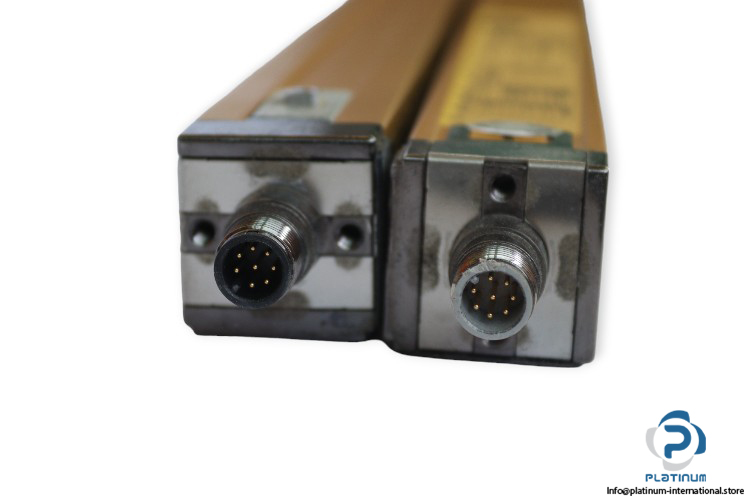

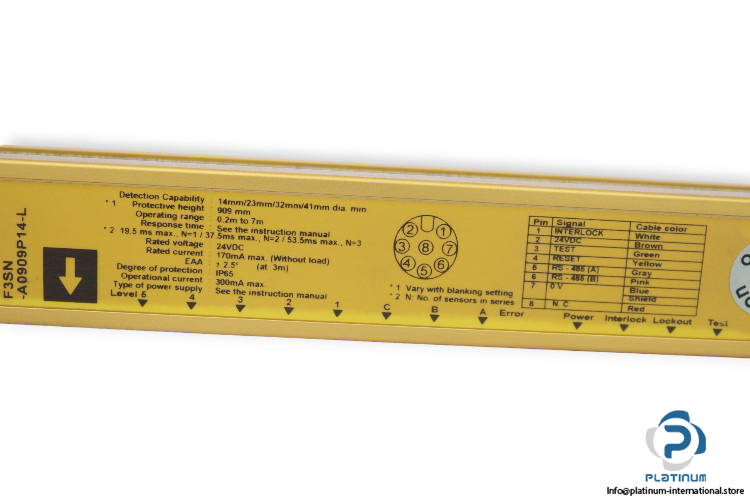

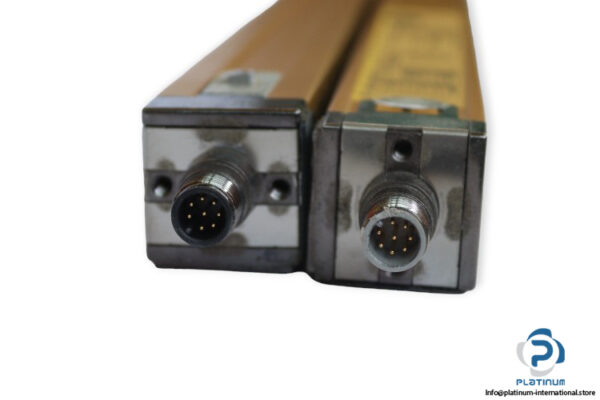

• Connection Method: M12 connector, 8 pins
• Materials:
• Case: Aluminum
• Cap: Zinc die-cast
• Optical Cover: PMMA (Acrylic Resin)
• Cable: Oil-proof PVC
