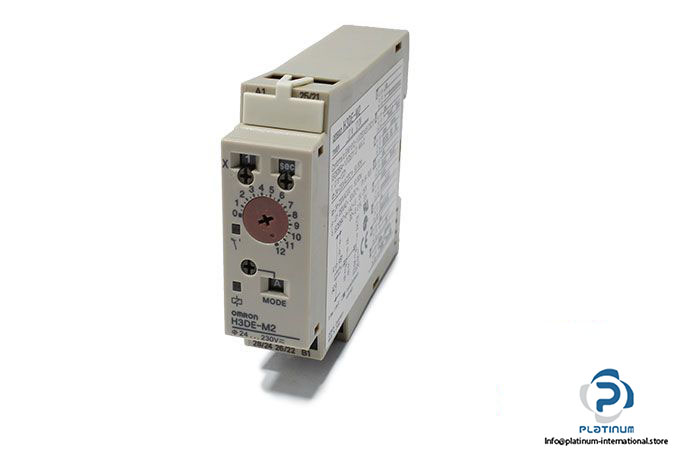

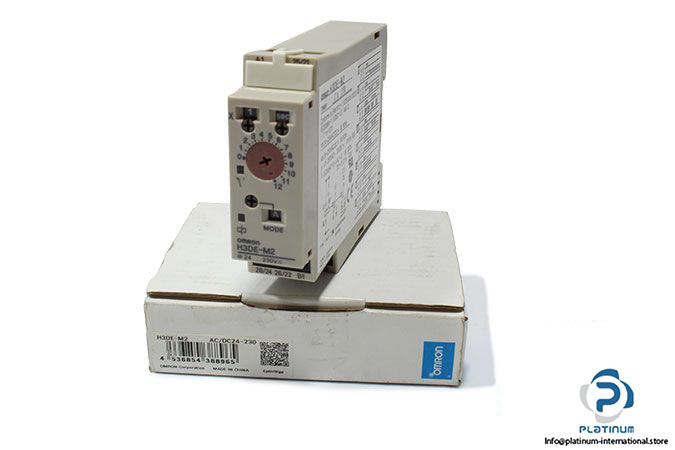

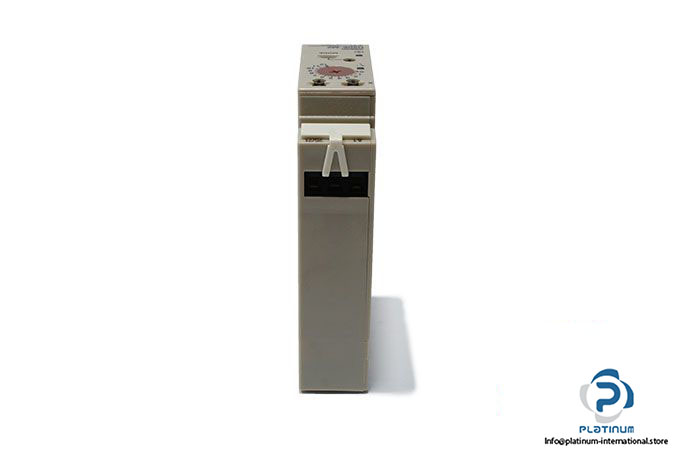

Omron H3DE-M2 Multifunction Timer

In stock3 unitsReady to ship

Omron H3DEM2 Multifunction Timer “ H3DE Series High-precision multifunction timer with DPDT relay output, supporting 24-230V AC/DC. Features DIN rail mounting and a wide time range of 0.1s to 120 hrs.

Manufacturer
OMRON
SKU
1055247
Category
Timers
Condition
Used
New Available on request
This product is also available brand new
View New Version →
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Omron H3DEM2 Multifunction Timer “ H3DE Series

The Omron H3DEM2 is a high-performance multifunction timer from the H3DE series, designed for precise time control in industrial automation and electrical applications. With its wide supply voltage range and reliable DPDT relay output, this timer ensures stable operation and easy DIN track mounting for seamless integration.

Key Details:

Manufacturer: Omron

Type: Multifunction Timer

Model: H3DEM2

Series: H3DE

Lot No.: 0560M

Power:

Perfect for industrial automation, this multifunction timer offers precise timing control and versatile installation, ensuring reliable performance in electrical and control applications.

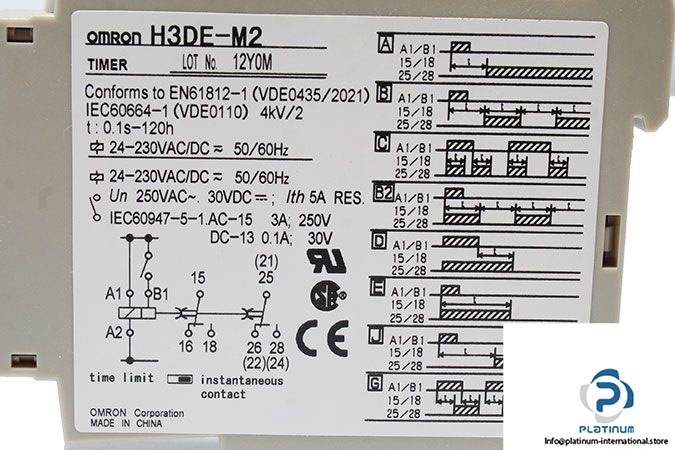

Rated Supply Voltage24 to 230 V AC/DC
Frequency50/60 Hz
ACApprox. 4.8 VA (2.4 W) at 230 VAC
DCApprox. 1.0 W at 24 V
Terminal Screw Tightening Torque0.98 N.m max.
Terminal BlockClamps two 2.5 mm² max. bar terminals without sleeves
Output Type (Relay)2 changeover contact (DPDT)
Contact Rating250 V AC, 3 A / 30 V DC, 0.1 A
StandardIEC50947-5-1
Mounting MethodDIN track mounting
Time Range0.1 s to 120 hrs
Enclosure Rating / Terminal BlockIP30 / IP20
Ambient Temperature (Operating)-10 to 55°C
Dimensions22.5 x 100 x 77 mm
