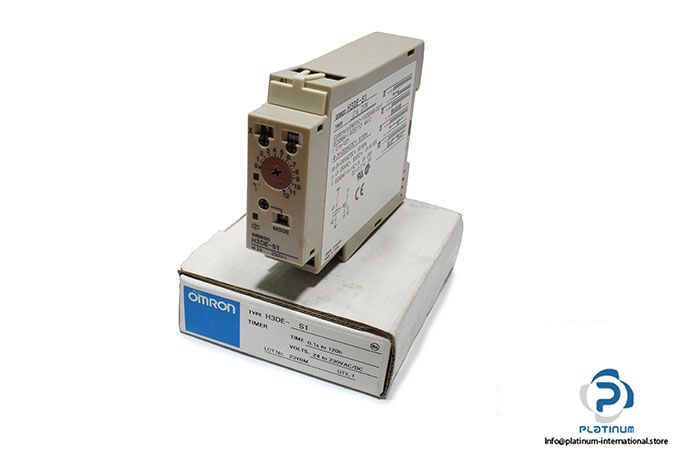

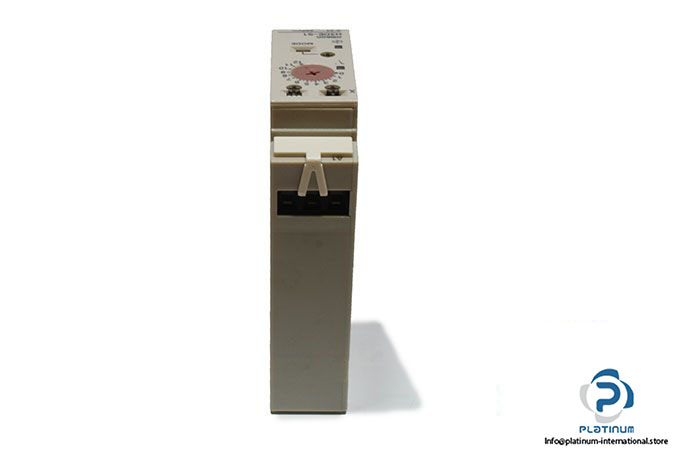

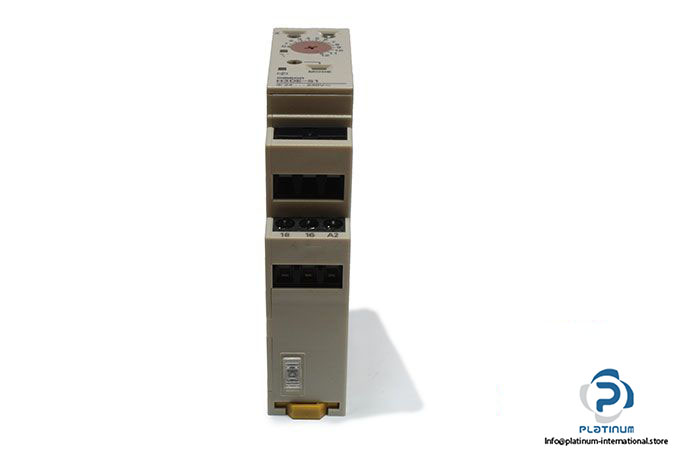

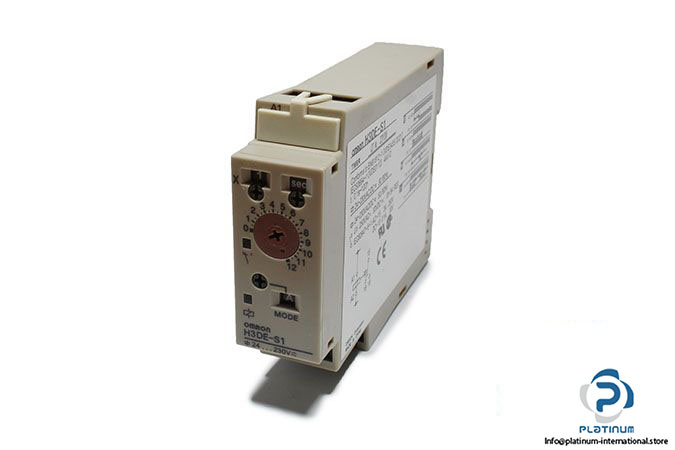

Omron H3DE-S1 Solid-State Timer
Used
In stock2 unitsReady to ship
22,22$
Omron Solid-State Timer H3DES1 with a time setting range from 0.1 s to 120 hr, rated supply voltage of 24 to 230 V AC/DC, and a contact output of 5 A at 250 V AC.
New
In stock 35,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Omron Solid-State Timer H3DES1
Omron Solid-State Timer H3DES1 is designed for accurate time delay control in various industrial applications. It offers precise timing functions with a wide range of time settings and voltage ratings. Below are the key technical specifications:
- Manufacturer: Omron
- Type: Solid-State Timer
- Model: H3DES1
- Lot No.: 2948T
Technical Data:
- Rated Supply Voltage: 24 to 230 V AC/DC
- Frequency: 50/60 Hz
- Time Setting: 0.1 s to 120 hr
- Power Consumption: AC: approx. 2.7 VA (1.6 W) at 230 VAC / DC: approx. 0.7 W at 24 VDC
- Thermal Current Ith: 5 A
- Nominal Voltage Un: 250 V AC, 30 V DC
- Contact Output: 5 A at 250 V AC with resistive load / 0.1 A at 30 VDC with resistive load
- Standard: IEC60947-5-1
- Ambient Temperature: -10 to 55°C
- Dimensions: 22.5 X 100 X 75.6 mm
