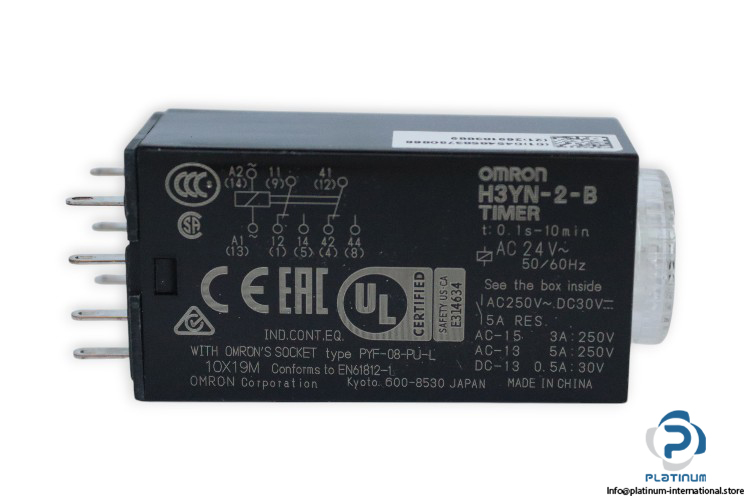

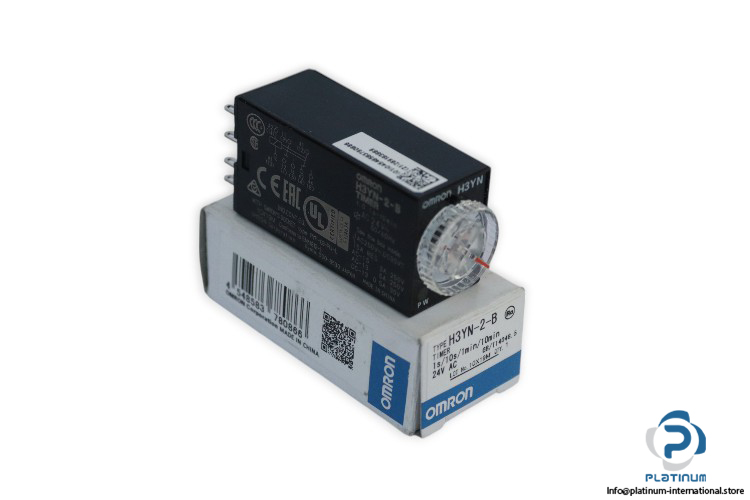

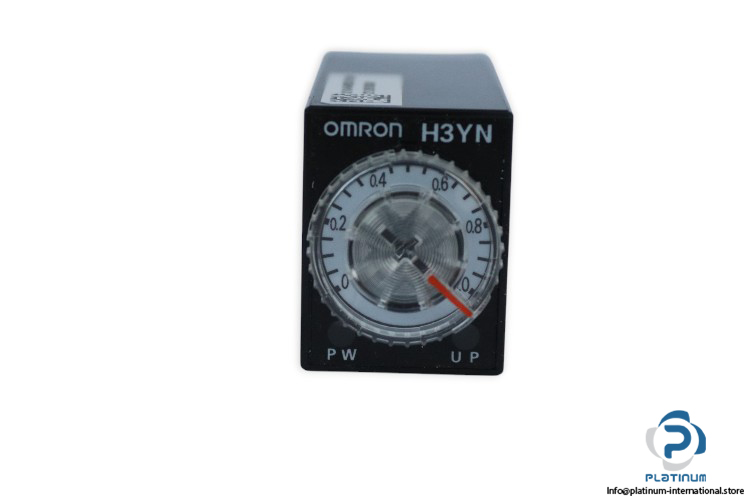

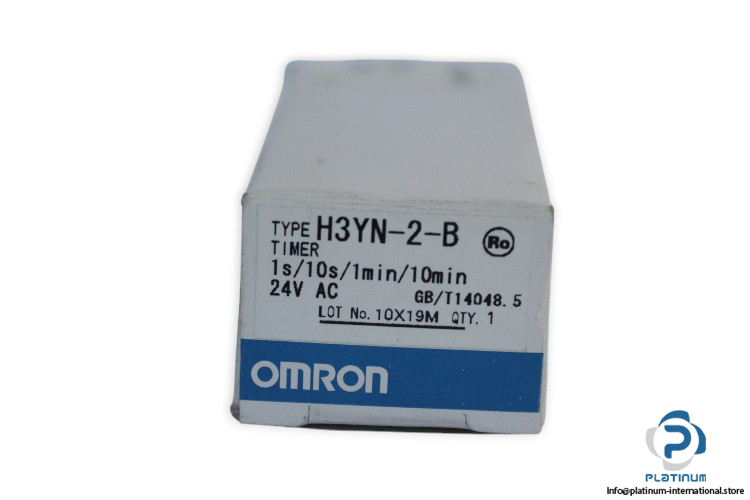

Omron H3YN-2-B Solid-State Timer

Manufacturer: OMRON
Type: Solid-state Timer
Model: H3YN-2-B
GB/T14048.5
10X19M

Rated power supply voltage: 24 VAC
Frequency: 50/60 Hz
Time range: 0.1s … 10 min
Allowable voltage variable range: 85 to 110%
Power consumption:
Relay ON: Approx. 1.8 VA (at 24 V)
Relay OFF: Approx. 1.4 W (at 24 V)
Number of time ranges: 4
Operation mode: ON delay, Interval, Flicker OFF start, Flicker ON start
max. Reset time: 0.1 s
Control output (Type): Time-limit, DPDT
Control output (Contact output)
Resistive load: 250 VAC 5 A
Minimum applicable load: 1 mA at 5 VDC
Degree of protection: IP40

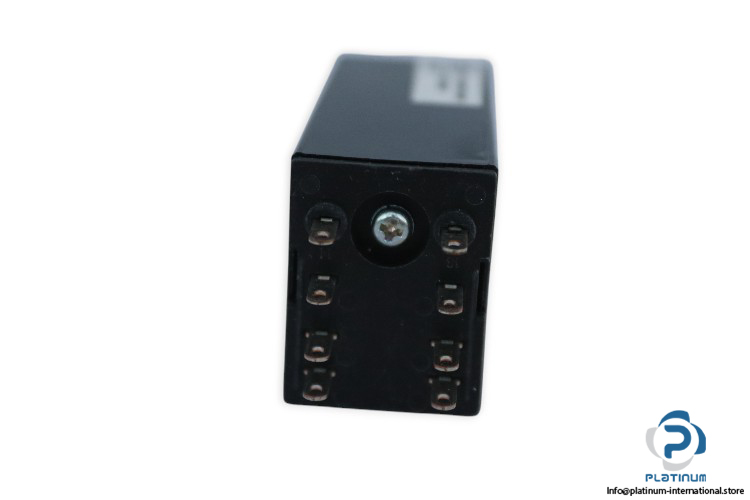

Connecting method: 8-pin round socket
Ambient temperature range Operating: -10 to 55 „ƒ
