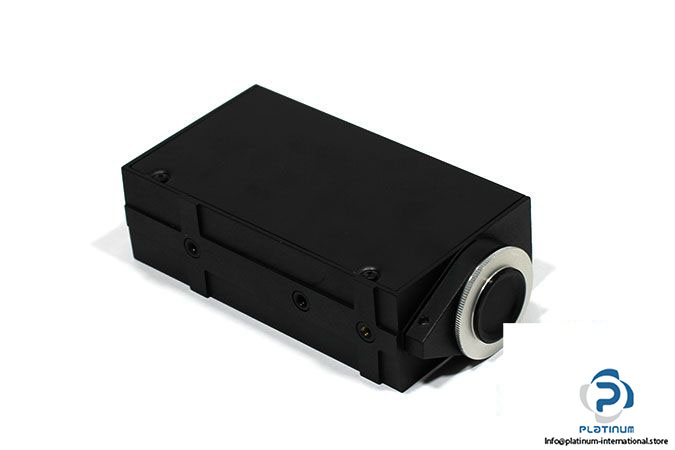

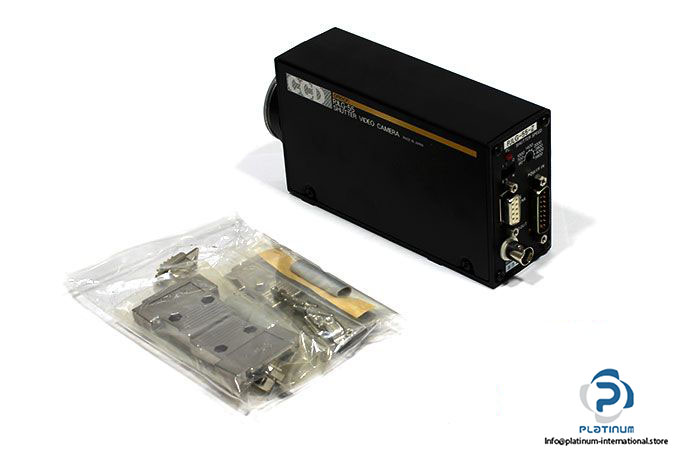

Omron PJLG-55-Z Shutter Video Camera

Manufacturer: Omron

Type: Shutter Video Camera

Model: PJLG-55-Z

For: F300-A20R / F300-A20RS

Unit: Camera I/F Unit

Input: Shutter / Simultaneously

Camera Cable: F309-VSR (5 m)

Video System: Conforms to NTSC

Image Pickup Elements: 0.5” CCD (Charge Coupled Device) Elements, Number of Effective Pixel: 365.904 (756 x 484 (H x V))

Lens Mounting: C-Mounting System

Scanning: 2:1 Interlace / Non-Interlace

Synchronization: Local/Remote

Illumination Intensity of Object: 100 lx min

Horizontal Resolution: 450 Lines min.

Vertical Resolution: 242 Lines per Field

Signal-to-Noise Ratio: 46 Db min.

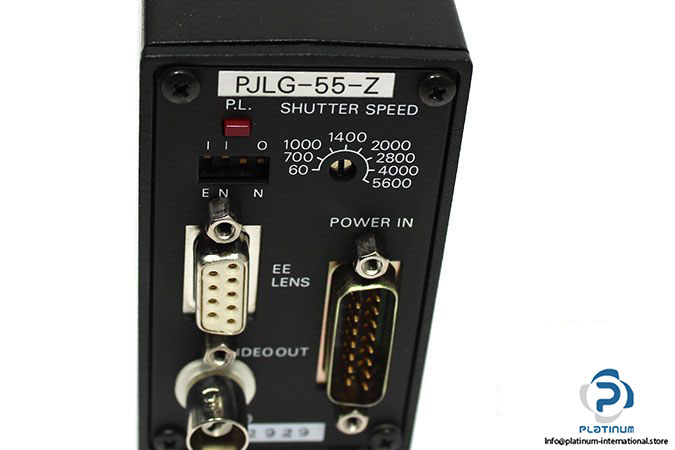

Shutter Speed: 1/60 to 1/5600 s

Power Supply: 12 VDC

Operating Temperature: 0…40 °C

Dimensions: 45 x 81 x 158 mm

Weight: 0.75 kg
