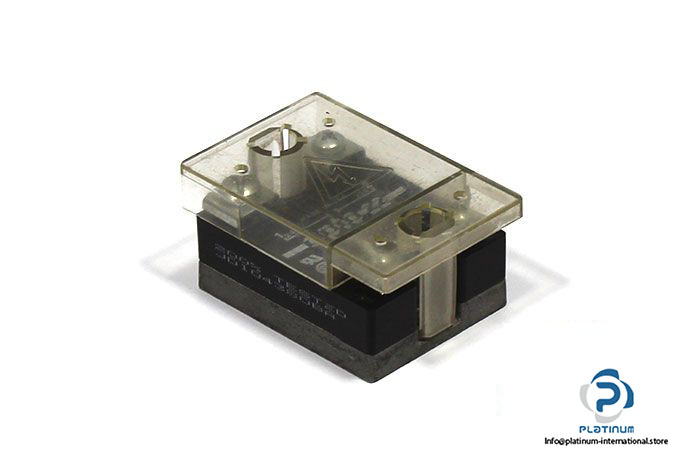

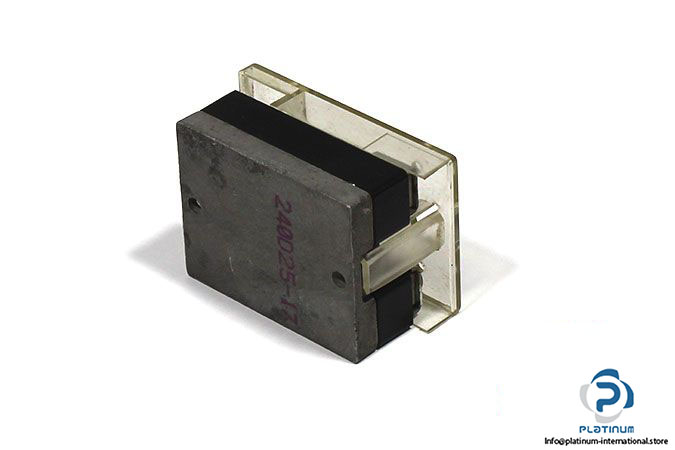

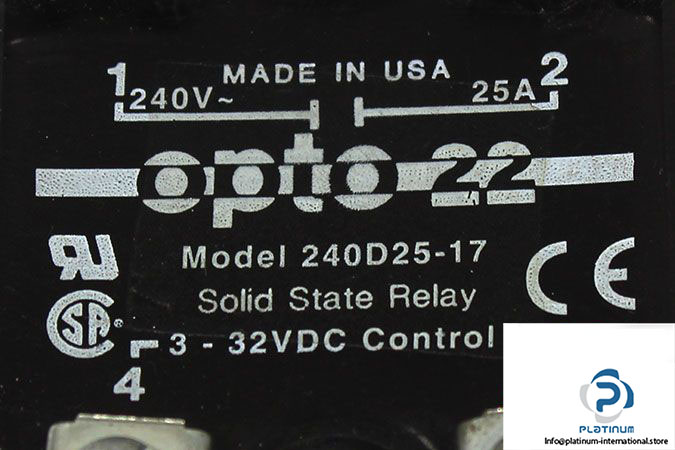

OPTO22 240D25-17 Solid State Relay

Manufacturer: Opto 22

Type: Solid State Relay

Model: 240D25-17

Nominal AC Line Voltage: 240 V

Operating Voltage Range: 24…280 V AC

Nominal Current Rating: 25 A

Nominal Signal Input Resistance: 1000 Ω

Signal Pick-up Voltage: 3 VDC (32 V Allowed)

Signal Drop-out Voltage: 1 VDC

Peak Repetitive Voltage Maximum: 600

Maximum Output Voltage Drop: 1.6 V

Max. Off-State Leakage: 14 mA

Dissipation: 1.3 W/A

Operating Temperature: -40…100 °C

Dimensions: 57 x 44 x 20 mm

Weight: 0.10 kg
