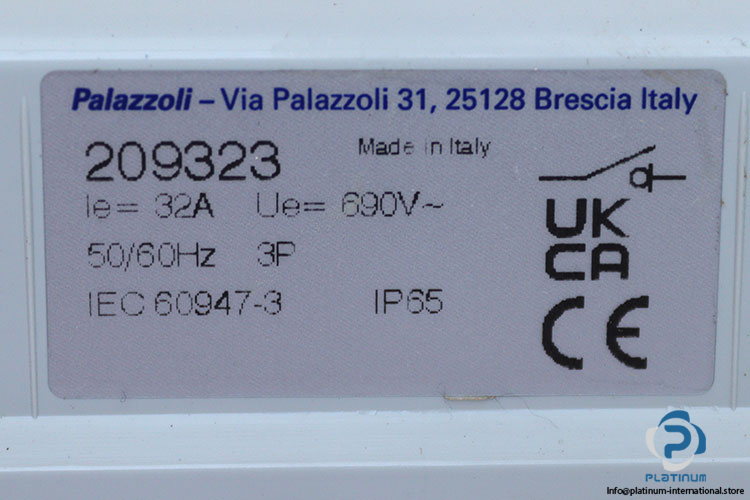

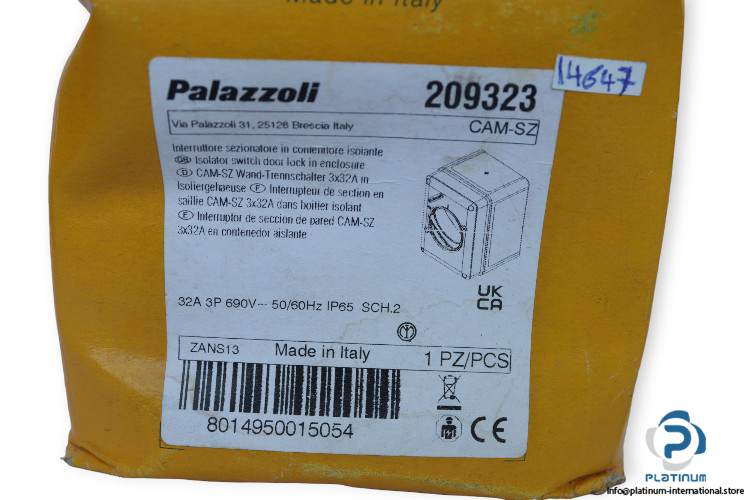

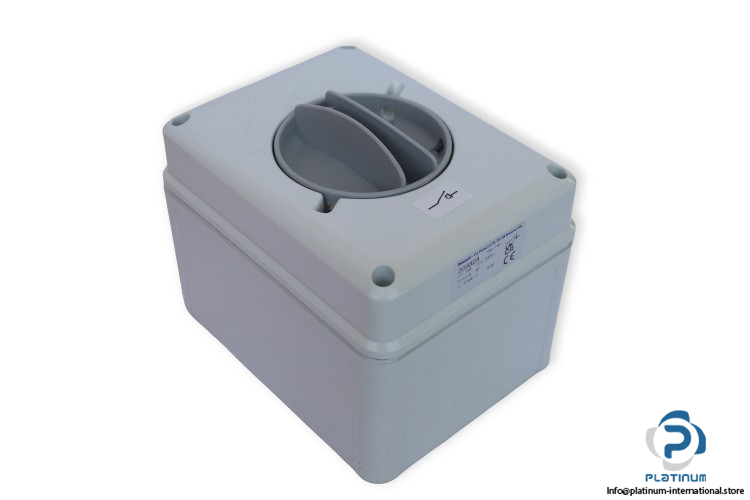

Palazzoli 209323 Control Isolator Switch

Manufacturer: PALAZZOLI
Type: Control Isolator Switch
Model: 209323

Description: CAM-SZ Isolator Switch with Grey Handle and Cover, in Insulating Material, for Wall Mounting
Rated Operating Voltage: 690 V AC
Rated Current: 32 A
Frequency: 50 … 60 Hz
Rated Insulation Voltage: 690 V
CAM Layout: 2
Poles No.: 3-Pole
Material: Technopolymer Recyclable Palazzoli
Protection Class: IP65
Ambient Temperature: -25 … 50 °C
Lockable Handle: 2 Locks Ø 5 mm
Dimensions: 158 x 121 x 126 mm
