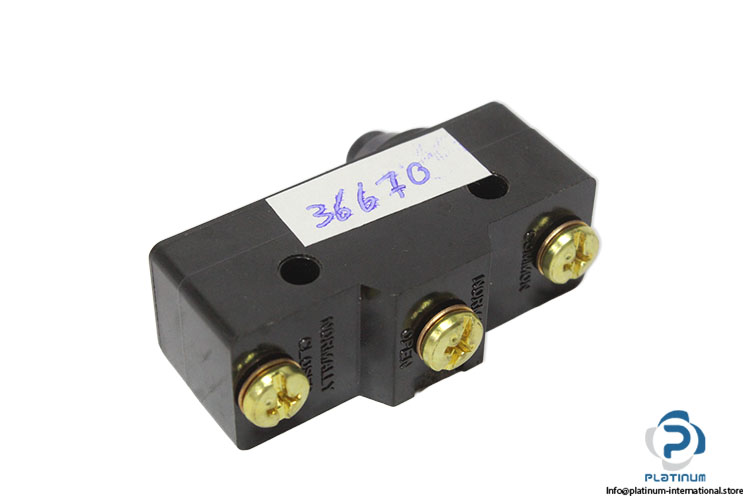

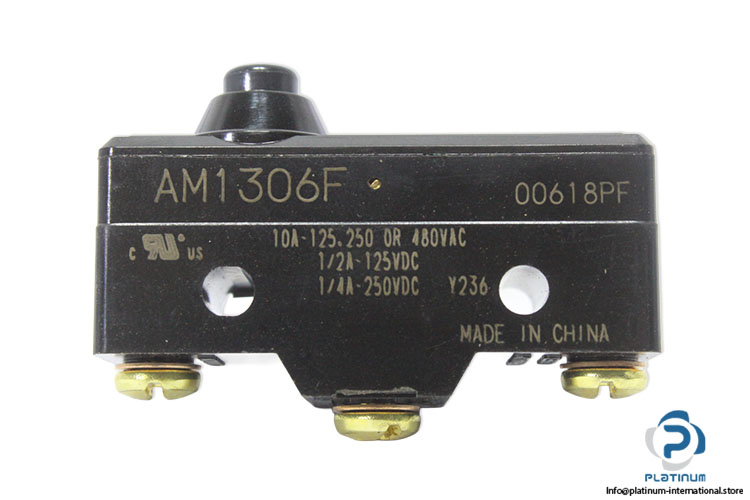

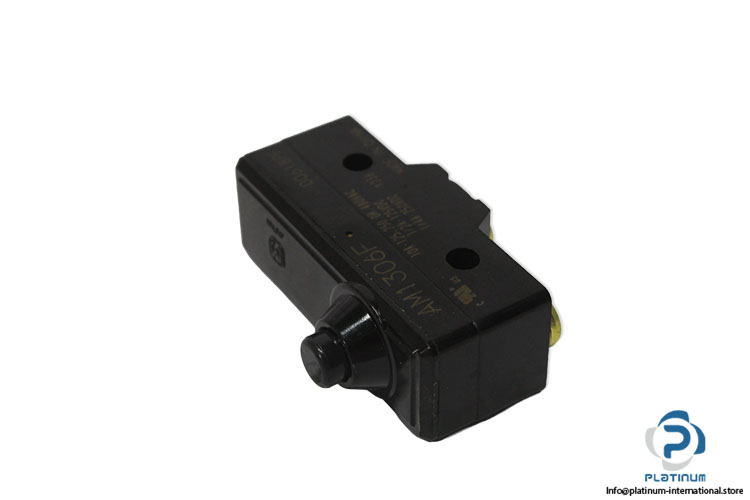

Panasonic AM1306F Basic Switch
New
In stock3 unitsReady to ship
14,44$
Basic Switch with High Capacity Panasonic AM1306F high-capacity basic switch featuring a compact overtravel plunger actuator, screw terminals, and precise switching characteristics for industrial automation and control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | AM1 |
| Part No. | 00618PF |
| Upper body cover shape & terminal | Flat, screw terminal |
| Basic specifications | Standard type |
| Type of Actuators | Compact overtravel plunger |
| Operating Force OF, max. | 3.63 N |
| Release Force RF, min. | 1.12 N |
| Pretravel PT, max. | 0.4 mm |
| Movement Differential MD, max. | 0.05 mm |
| Overtravel OT, min. | 1.5 mm |
| Operating Position OP | 21.2±0.5 mm |
| Allowable operating speed (at no load) | 0.1 to 1,000 mm/sec. (at pin plunger position) |
| Max. operating cycle rate (at no load) | 240 cpm |
| Ambient temperature | –25°C to +80°C |
| Condition | New |
| SKU | 1099382 |
| Weight | 0,03 |
