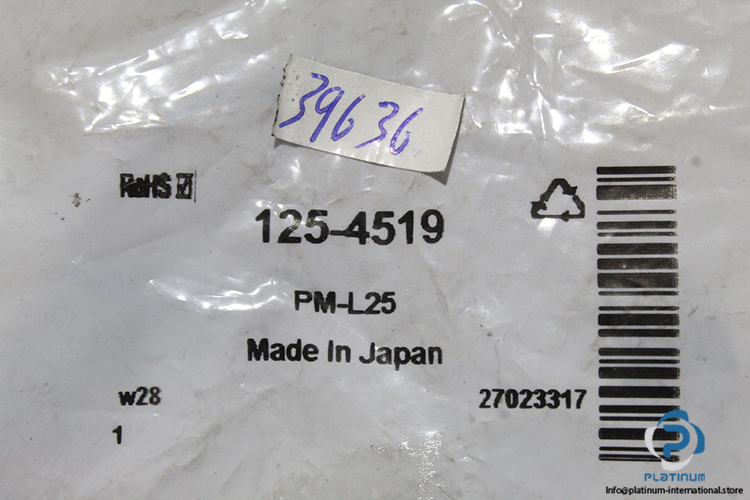

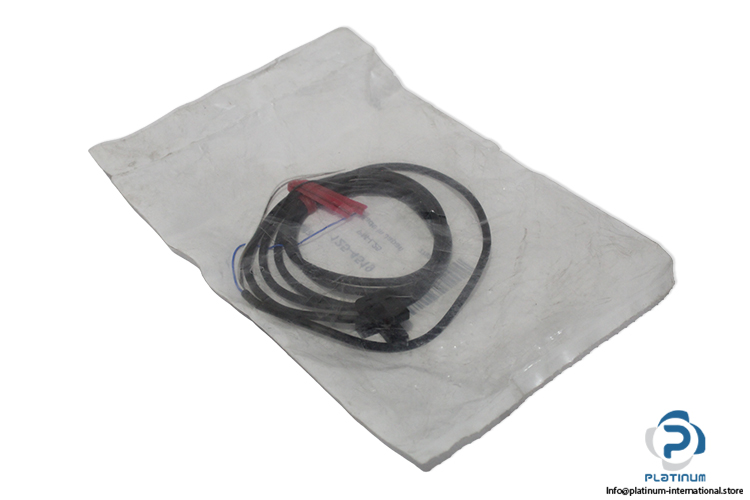

Panasonic PM-L25 Photoelectric Sensor

In stock5 unitsReady to ship

Photoelectric Sensor The Panasonic PM-L25 is a compact photoelectric sensor with a 6 mm sensing range, NPN output and fast response, designed for precise industrial object detection.

Manufacturer
PANASONIC
SKU
1101053
Category
Sensors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
RS Part No125-4519
Ref No27023317
(Note)Conformed from December 2021 production.
Sensing range6 mm
Minimum sensing object0.8 × 1.2 mm
Hysteresis0.05 mm 0.002 in or less
Repeatability0.01 mm 0.0004 in or less
Supply voltage5 to 24 V DC
Current consumption15 mA or less
OutputNPN open-collector transistor
·Maximum sink current50 mA
·Applied voltage30 V DC or less (between output and 0 V)
·Residual voltage2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output,Output operationIncorporated with 2 outputs: Light-ON / Dark-ON
Response time,Under light received condition20 µs or less
Under light interrupted condition80 µs or less
Operation indicatorOrange LED (lights up under light received condition)
Pollution degree3
ProtectionIP64 (IEC)
Ambient temperature-25 to +55 ?
Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance20 MO, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock resistance15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting elementInfrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Material EnclosurePBT
Display sectionPolycarbonate
Cable0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long
Stock keyCON003
ConditionNew
SKU1101053
Weight0,01
