Parker 3199 06 10 Push-IN Fitting
New
In stock4 unitsReady to ship
Pneumatic Push-In Fitting
The PARKER Legris 31990610 LF 3000 elbow fitting connects 6 mm tubes to G 1/8 BSPP ports, featuring a 90° design, polymer body, NBR seals, and stainless-steel gripping ring for secure compressed-air connections.1/8300031990610690AirBsppComponentsCompressedConnectorElbowfittingGIndustriallegrisLFmmParkerPneumaticPolymerPush-InSeriesStudTechnicalTube
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

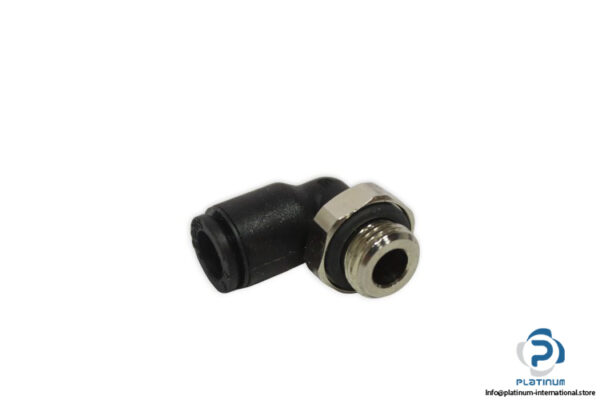

PARKER Legris 31990610 Pneumatic Push-In Fitting
The PARKER Legris 31990610 from the LF 3000 series is a high-quality pneumatic push-in fitting designed for fast installation and secure connections in compressed-air systems. Its 90° elbow configuration and durable polymer body ensure reliable performance and leak-free operation in demanding environments.
Manufacturer: PARKER Legris
Type: Pneumatic Push-In Fitting
Part No.: 31990610
Series: LF 3000
Ref Code: 0701144 G07 LOG
| Product Style | Stud Fitting |
| Configuration | Tube to Port |
| Shape | Elbow 90° |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Type | Male BSPP |
| Connection 2 Size | G 1/8 inch Thread |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Size | 13 mm |
| Hex Type | Hexagon Metric |
| Maximum Operating Temperature | 80 °C |
| Minimum Operating Temperature | -20 °C |
| For Fluid Type | Air (Compressed Air); other fluids on request |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
