Parker 3199 08 13 Push-IN Fitting
New
In stock1 unitReady to ship
Pneumatic Push-In Fitting
The PARKER Legris 31990813 LF 3000 elbow fitting connects 8 mm tubes to G1/4 BSPP ports, offering quick installation, reliable sealing, and durability under compressed air systems up to 80 °C.3000319908138mm90BsppConnectorElbowfittingG1/4IndustriallegrisLFParkerPneumaticPolymerPortPush-InStudtoTube
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

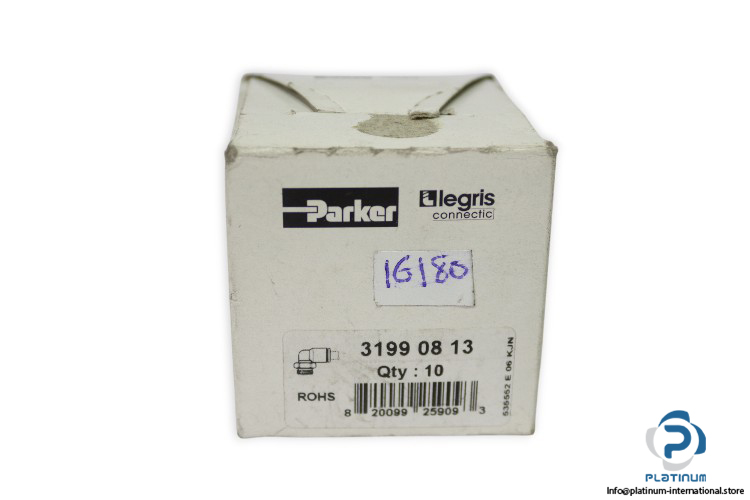

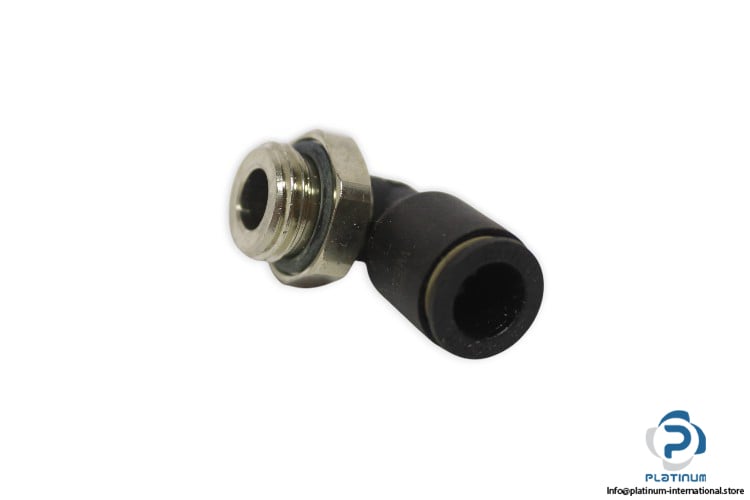

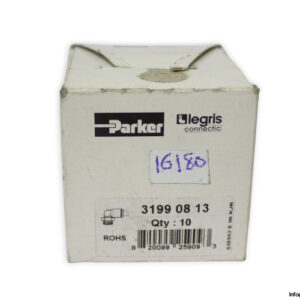

PARKER Legris 31990813 Pneumatic Push-In Fitting
The PARKER Legris 31990813 Pneumatic Push-In Fitting from the LF 3000 series is engineered for reliable air and fluid connections in pneumatic systems. Its 90° elbow design and durable polymer construction provide easy installation, leak-free performance, and long service life.
Manufacturer: PARKER Legris
Type: Pneumatic Push-In Fitting
Part No.: 31990813
Series: LF 3000
Ref Code: 536562 E 06 KJN
SN: 8 20099 25909 3
| Connection 1 Type | Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Type | Male BSPP |
| Connection 2 Size | G 1/4 inch Thread |
| Configuration | Tube to Port |
| Product Style | Stud Fitting |
| Shape | Elbow 90° |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Size | 16 |
| Hex Type | Hexagon Metric |
| Maximum Operating Temperature | 80 °C |
| Minimum Operating Temperature | -20 °C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
