Push-In Fitting
The PARKER Legris 3699 06 10 is a chemical nickel-plated brass push-in elbow fitting with 6 mm tube and G1/8 male BSPP connection, suitable for water, air, and lubricants up to 20 bar and 150 °C.0“610360036996mm90brassBsppConnectorElbowfittingFKMG1/8HighIndustriallegrisLFmalenickel-platedParkerPneumaticPortPressurePush-InSealSeriestoTube
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

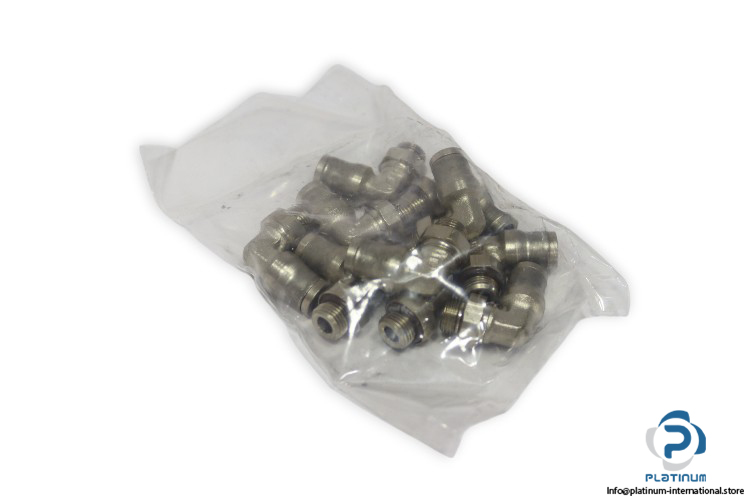

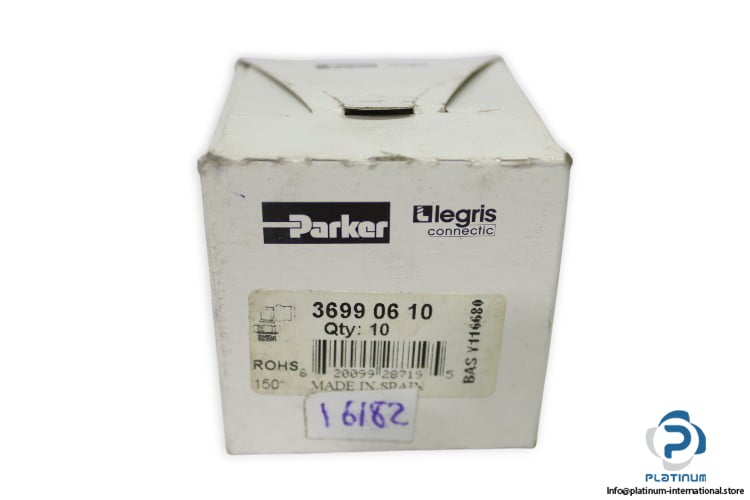

PARKER Legris 3699 06 10 Chemical Nickel-Plated Brass Push-In Fitting
The PARKER Legris 3699 06 10 Push-In Fitting is engineered for high-performance connections in water, air, and lubricant systems. Designed with an FDA-approved chemical nickel-plated brass body, it ensures durability, corrosion resistance, and reliable sealing for industrial fluid transfer applications.
Manufacturer: PARKER Legris
Type: Chemical Nickel-Plated Brass Push-In Fitting
Part No.: 3699 06 10
Series: LF 3600
Ref Code: BAS Y116680
SN: 8 20099 287195
| Seal Material | FKM |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Size | G 1/8 |
| Connection 2 Type | Male BSPP |
| Configuration | Tube to Port |
| Product Style | Stud Fitting - Adjustable |
| Shape | Elbow 90° |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Body Material | Brass, FDA Chemical Nickel-plated |
| Coating | FDA Chemical Nickel-plated |
| Division | Low Pressure Connectors Europe Division |
| Maximum Operating Pressure | 20 bar |
| Vacuum Pressure Rating | 755 mm-Hg |
| Maximum Operating Temperature | 150 °C |
| Minimum Operating Temperature | -25 °C |
