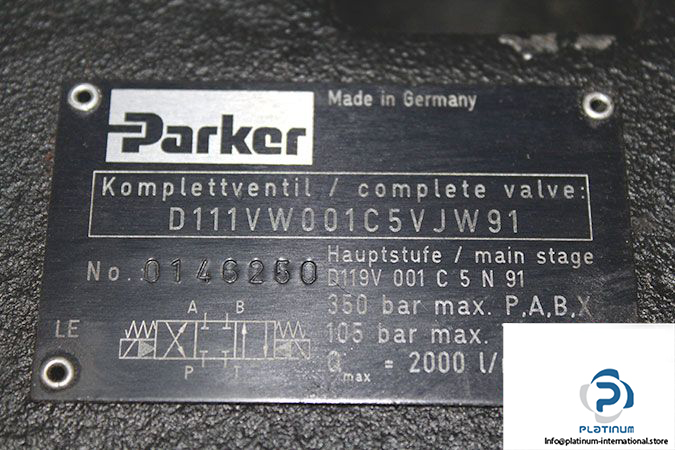

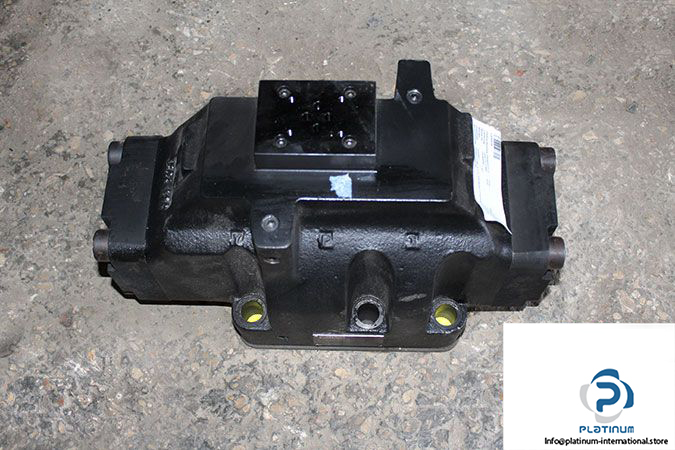

Parker D111VW001C5VJW91 Pilot Operated Directional Control Valve
Manufacturer: Parker
Type: Pilot Operated Directional Control Valve
Model: D111VW001C5VJW91
Nominal Size: NG32
Type of Actuation: Electro-Hydraulic
Max. Working pressure (Port P, A, B): 350 bar
Max. Pressure (Port T): 105 bar
Max. Flow Rate: 2000 L/min
Hydraulic Connection: Sub-Plate
Seals: Fluorocarbon
Fluid Temperature Range: -20 ….. +80 °C
Nominal Voltage per Pilot Coil: 24 VDC
Function: 4/3 way valve
Weight: 68.00 kg
