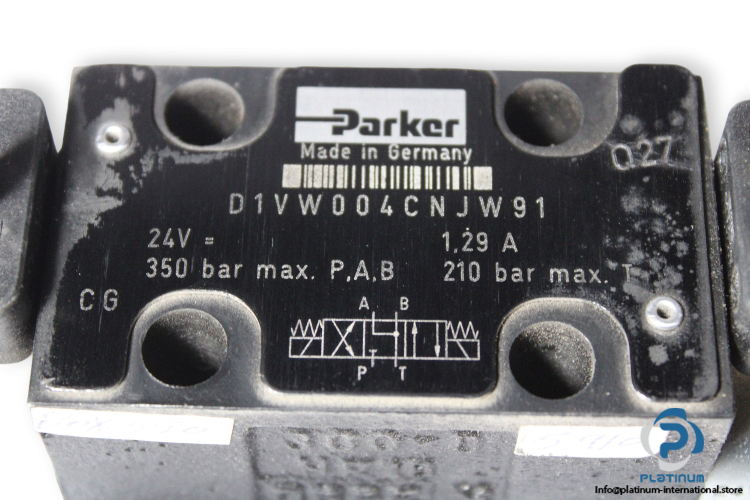

Parker D1VW004CNJW91 Directional Control Valve

Manufacturer: Parker
Type: Directional Control Valve
Model: D1VW004CNJW91

Size: NG6
Type of Actuation: Electrically
Maximum Operating Pressure at Ports P, A, B [bar]: 350
Maximum Operating Pressure at Port T [bar]: 210
Fluid Temperature Range [°C]: -20 …. +80
Connection: Sup-Plate
Voltage [Vdc]: 24
Current [A]: 1.29

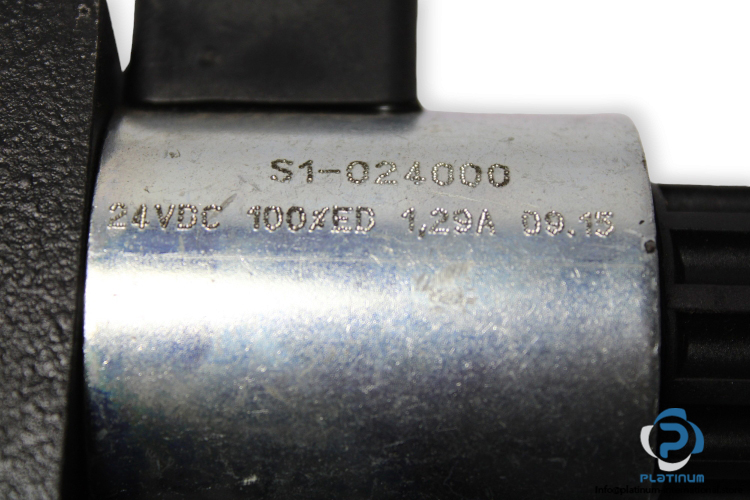

Attachment: Parker S1-024000 Solenoid Coil
Manufacturer: Parker
Type: Solenoid Coil
Model: S1-024000
Voltage [Vdc]: 24
Current [A]: 1.29

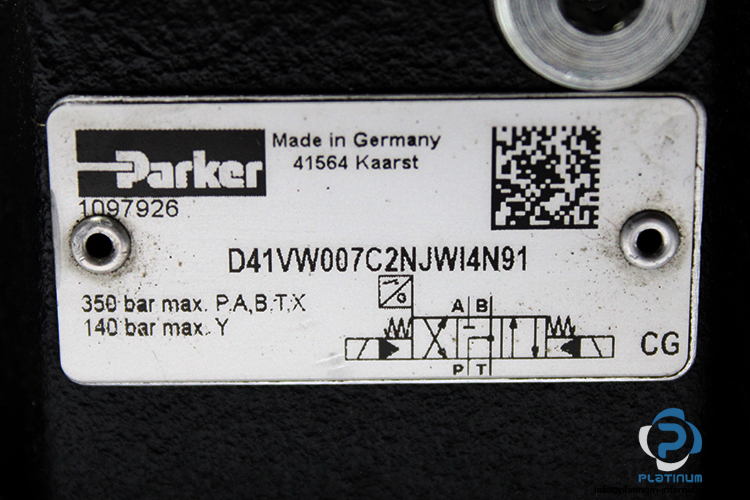

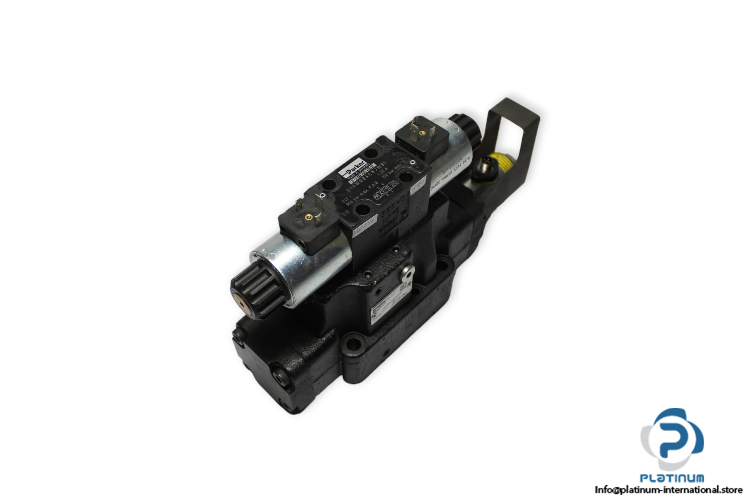

Parker D41VW007C2NJWI4N91 Pilot Operated Directional Valve
Nominal Size: NG 16
Type of Actuation: Solenoid
Max. Operating pressure [bar]: 350
Fluid: Oil
Flow Maximum [LPM]: 300
Hydraulic Connection: Sub-Based
Fluid Temperature [°C]: -25…50
Protection Class: IP65
