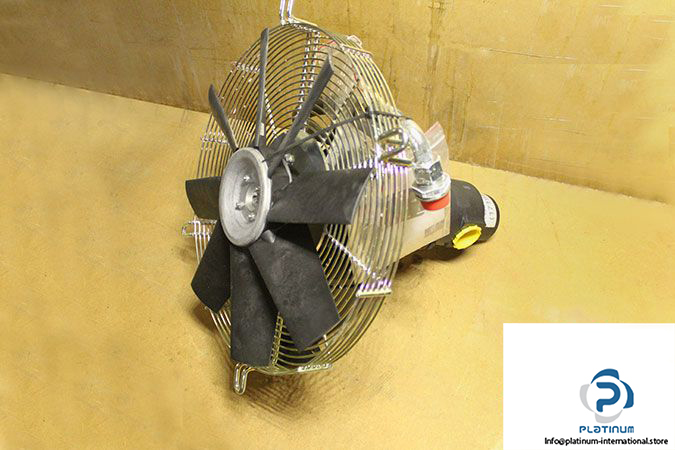

Parker LOC3 016-6-D-D FAN

Manufacturer: parker

Type: Fan

Model: LOC3 016-6-D-D

MRN: LOC3-016-6-D-D-L-00-000-P-00-0

Cooler Size: 16

Nom. oil flow: 55 l/min

Cooling capacity: 14 kW

Acoustic pressure level LpA dB(A) 1m*: 64

Supply Voltage:

230/400 V .. 50 Hz

480 V .. 60 Hz

No. of poles/ Capacity: 6 – 1.10 kW

Pump Size: 60 cm3 /r

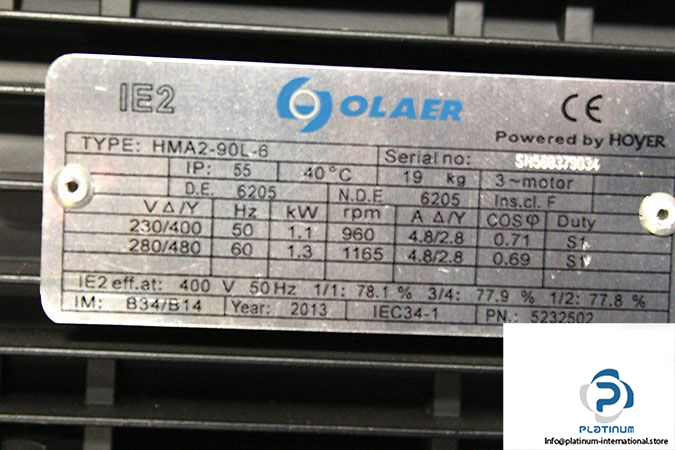

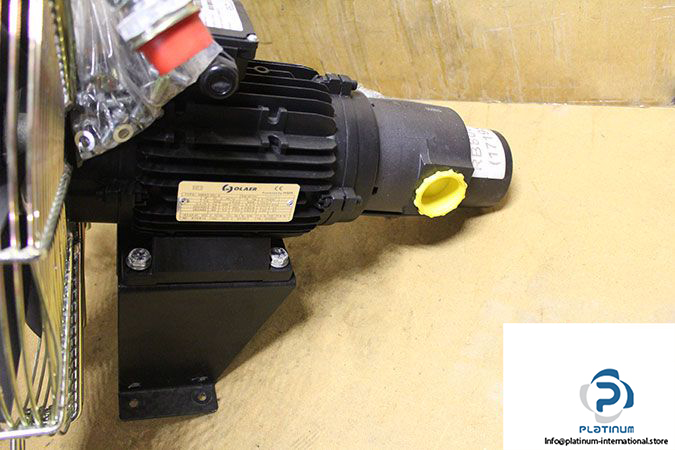

Attachment: OLAER HMA2-90L-6 ELECTRIC MOTOR

Manufacturer: HOYER OLAER

Type: Electric Motor

Model: HMA2-90L-6

Input Voltage, Rated Current: Delta ( Δ ): 230 V,4.8 A

Star ( Y ): 400 V, 2.8 A… at 50 Hz

Power: 1.1 Kw

Speed: 960 RPM

Input Voltage, Rated Current: Delta ( Δ ): 280 V,4.8 A

Star ( Y ): 480 V, 2.8 A… at 50 Hz

Power: 1.3 Kw

Speed: 1165 RPM

Protection Class: IP55

Operating Temperature: 0 … 40 °C
