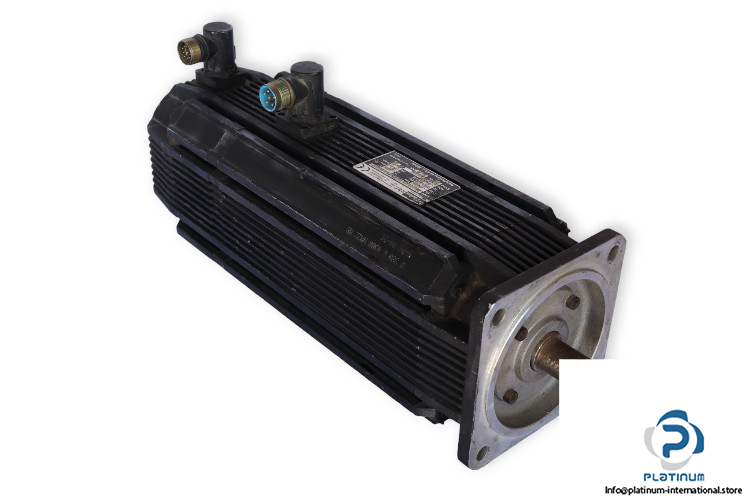

PARKER MBA14545225242164M Servo Motor

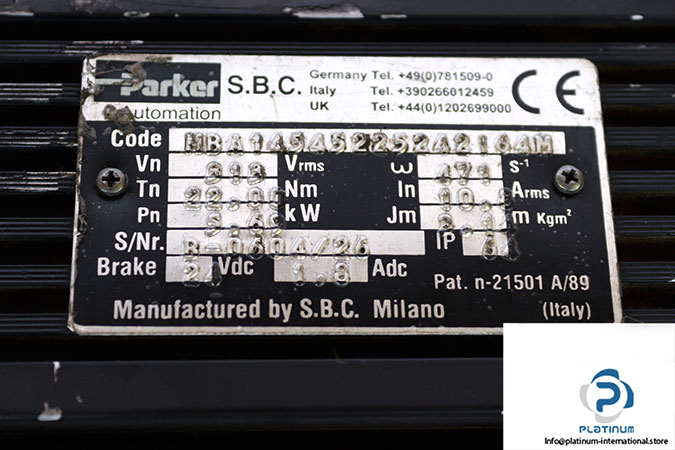

Manufacturer: S.B.C /Parker Automation
Type: Servo Motor
Model: MBA14545225242164M
S/NR: b-0604/26

Motor frame sizes: 145
Rated Voltage: 313 V
Rated Torque: 22 Nm
Rated Power: 5.65 Kw
Rated Current: 10.32 A
Nominal speed: 4500 rpm
Protection Class: IP 64
Rotational Mass Moment of Inertia: 3.14 kgm²
Angular: 471 S^-1
operating threshold: PTC
Feedback: 2-pole resolver
Flange: B5
Brake Voltage: 24 V
Brake Current: 1.8 A
Ambient Operating Temperature: -10°C… +40°C
