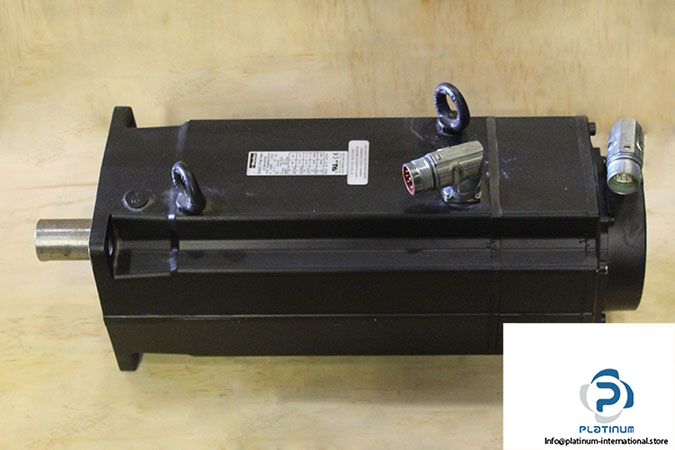

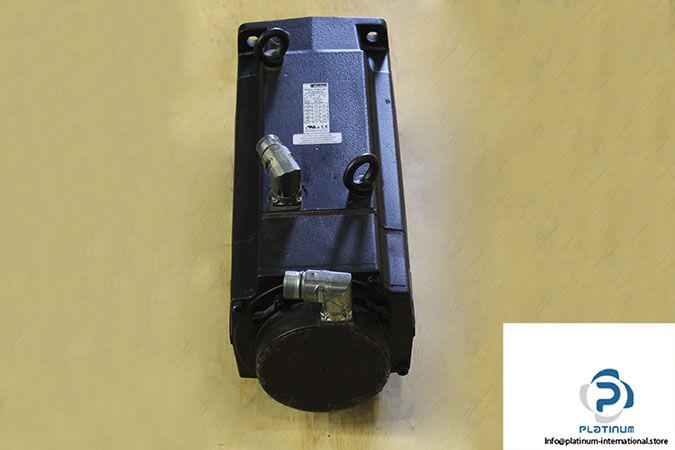

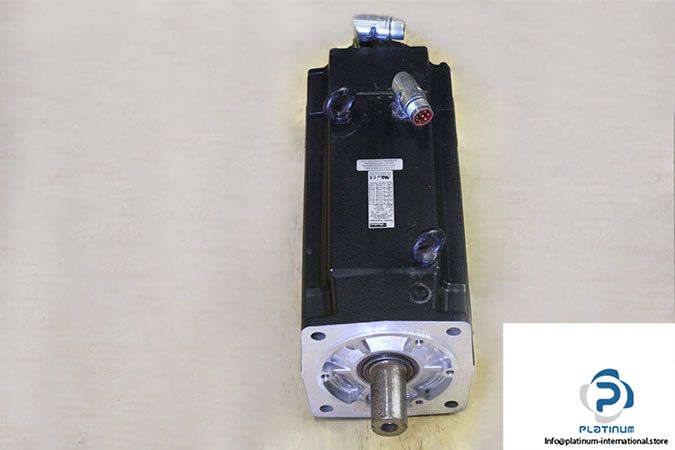

Parker NX860EAJB7401 Brushless AC Servo Motor

Manufacturer: PARKER SSD Parvex

Type: Brushless AC Servo Motor

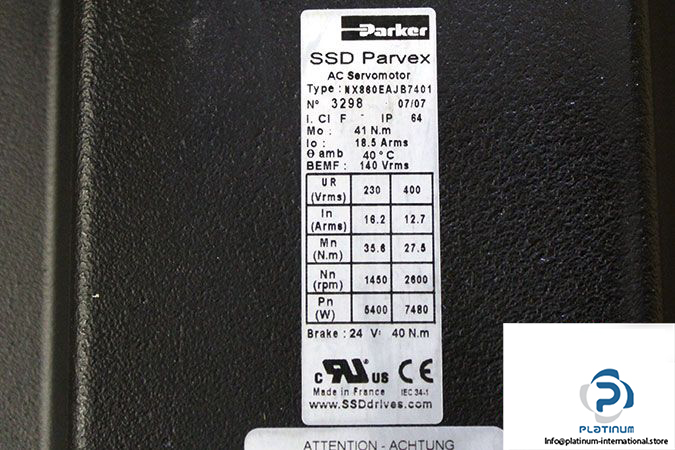

Model: NX860EAJB7401

Rated Voltage: 230 / 400 Vrms

Rated Current: 16.2 / 12.7 Arms

Stall Current: 18.5 Arms

Rated Torque: 35.6 / 27.5 Nm

Stall Torque: 41 Nm

Rated Power: 5400 / 7480 W

Rated Speed: 1450 / 2600 min^-1

Brake Voltage: 24 VDC

Brake Torque: 40 Nm

Temperature: 40 °C

Insulation Class: F

Protection Class: IP 64

Weight: 30.42 kg
