Parker P1C-S032MS-0125 ISO Cylinder
New
In stock3 unitsReady to ship
ISO Cylinder
PARKER P1C-S032MS-0125 ISO Cylinder is designed for high-precision pneumatic applications. With a 32 mm bore, 125 mm stroke, and double-acting operation, it ensures efficient motion control and reliability. Featuring a male piston rod end and square shape, this cylinder is optimized for industrial automation.1/810125mm32mmActuatorAirAutomationbarboreCompressedconnectionCylinCylinderdouble-actingGhigh-performanceIndustrialISOP1C-S032MS-0125ParkerPneumaticPressureShapeSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

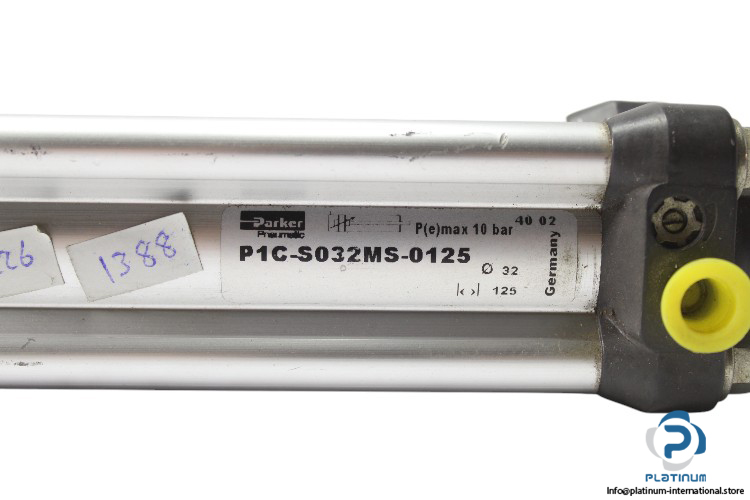

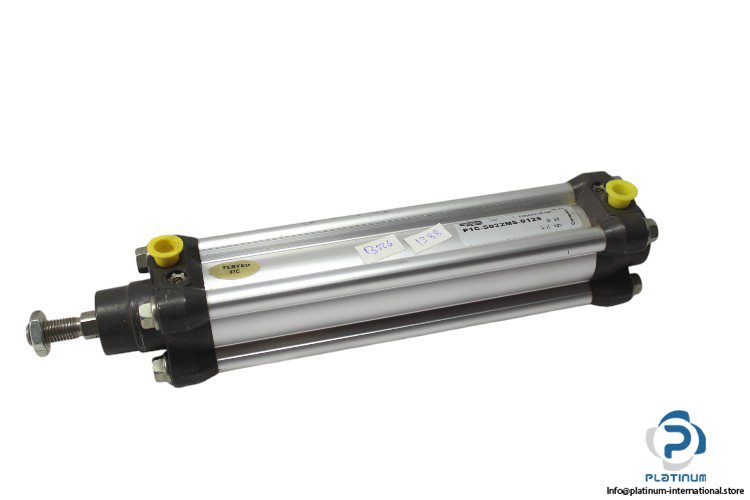

PARKER P1C-S032MS-0125 ISO Cylinder
The PARKER P1C-S032MS-0125 ISO Cylinder is a high-performance pneumatic actuator designed for industrial applications requiring precision, durability, and efficient force transmission. This double-acting cylinder operates with compressed air and meets ISO standards for compatibility and reliability.
Manufacturer: PARKER
Type: ISO Cylinder
Model: P1C-S032MS-0125
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke | 125 mm |
| Bore x Stroke | 32 x 125 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 50 x 240 mm |
| Pneumatic Connection | G 1/8 |
| Maximum Pressure | 10 bar |
| Operation Mode | Double-Acting |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
