Parker P1C-S050AS50025 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The PARKER P1C-S050AS50025 ISO Cylinder is designed for use with compressed air, featuring a 50 mm bore, 25 mm stroke, G 1/4 connection, and a durable square shape for reliable industrial performance.1/4102550ActingActuatorAirAutomationbarboreCompressedconnectionCylinderDirectionDoubleGIndustrialISOmmOneP1C-S050AS50025ParkerPneumaticPressureRODShapesideSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

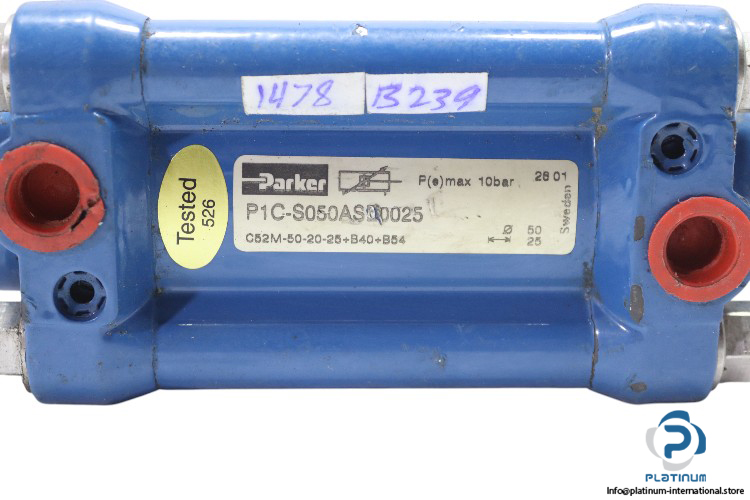

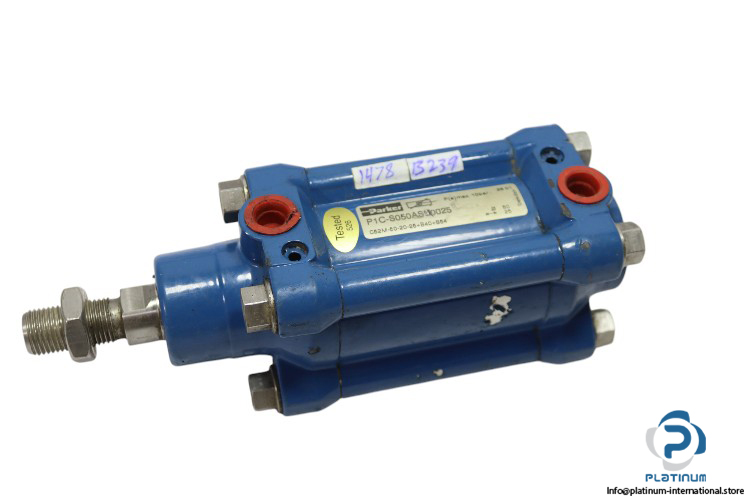

PARKER P1C-S050AS50025 ISO Cylinder
The PARKER P1CS050AS50025 ISO Cylinder is a compact and efficient pneumatic actuator designed for precise movement using compressed air. With its square shape, one-side rod direction, and durable construction, it is ideal for a wide range of industrial automation applications.
Manufacturer: PARKER
Type: ISO Cylinder
Model: P1C-S050AS50025
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 25 mm |
| Bore x Stroke | 50 x 25 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 67 x 165 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
