Parker P1C-S050MS-0125 ISO Cylinder
Used
In stock11 unitsReady to ship
ISO Cylinder
PARKER P1C-S050MS-0125 ISO Cylinder is designed for precise pneumatic motion control. With a 50 mm bore, 125 mm stroke, and double-acting operation, it provides reliable and efficient performance. Featuring a G 1/4 connection and a male piston rod end, this ISO-standard cylinder ensures durability and seamless system integration.1/4125mm50mmActuatorAutomationboreconnectionControlCylinderdouble-actingEndGhigh-performanceIndustrialISOmaleMotionone-siP1C-S050MS-0125ParkerPistonPneumaticPrecisionRODSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

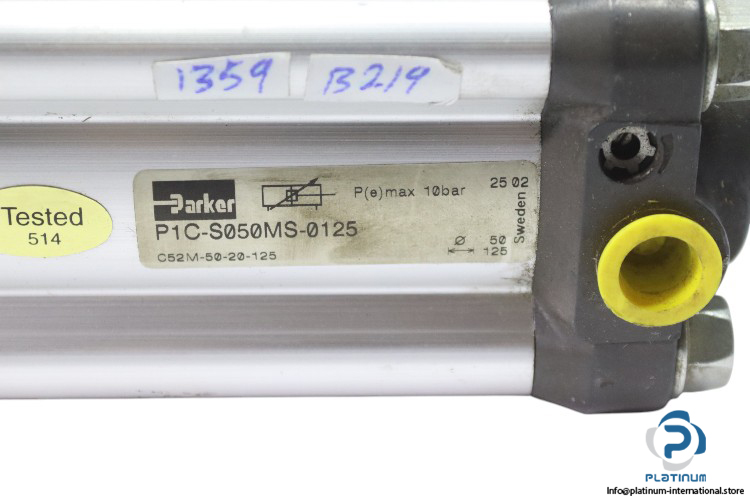

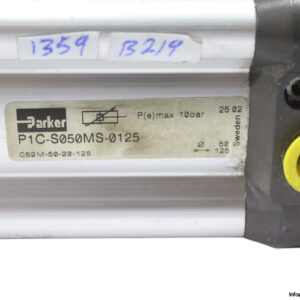

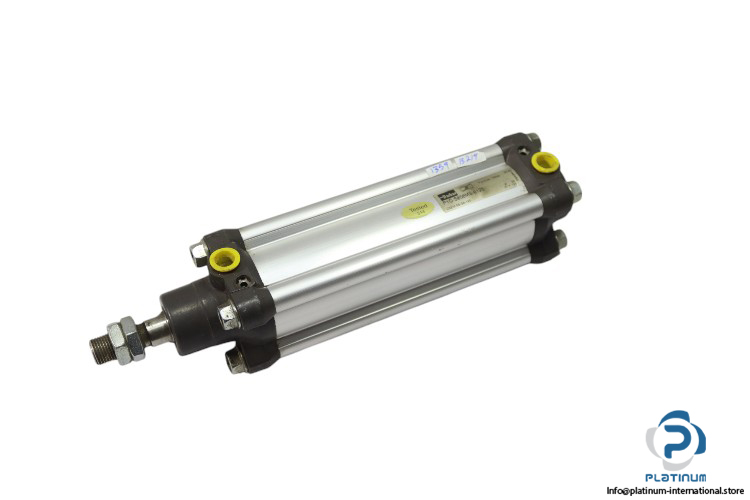

PARKER P1C-S050MS-0125 ISO Cylinder
The PARKER P1C-S050MS-0125 ISO Cylinder is a high-precision pneumatic actuator designed for industrial applications requiring reliable and efficient motion control. Built to ISO standards, this double-acting cylinder ensures optimal performance, durability, and seamless integration into automated systems.
Manufacturer: PARKER
Type: ISO Cylinder
Model: P1C-S050MS-0125
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 125 mm |
| Bore x Stroke | 50 x 125 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 65 x 260 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
