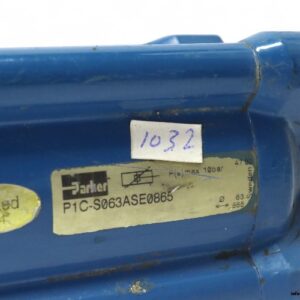

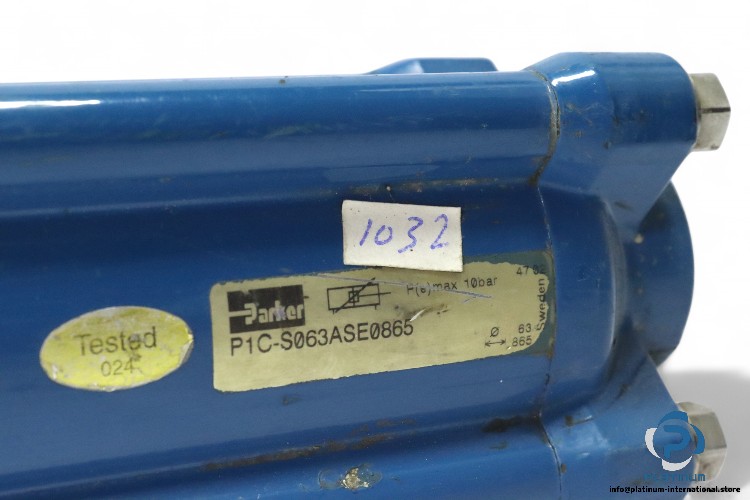

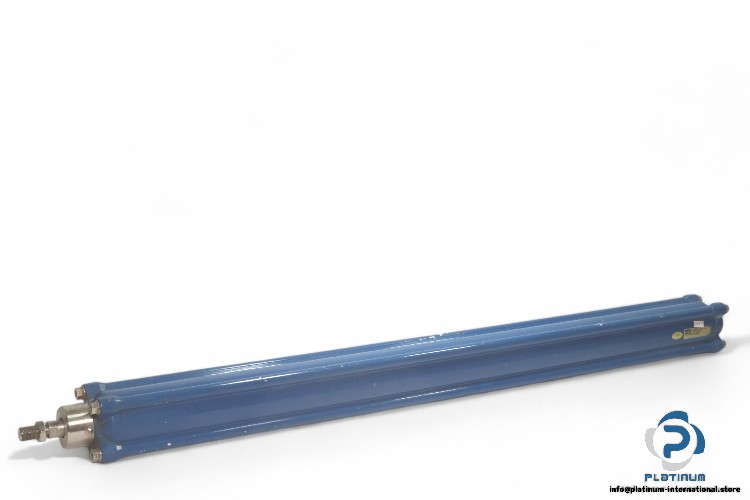

Parker P1C-S063ASE0865 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
PARKER ISO Cylinder P1C-S063ASE0865 is designed for compressed air applications, with a 63 mm bore diameter and 865 mm stroke. It offers high performance with a double operation mode, male piston rod end, and a maximum pressure of 10 bar.103/863865AirbarboreCompressedconnectionCylinderdiameterDoubleEndGIndustrialISOmalemmModeOperationP1C-S063ASE0865ParkerPistonPneumaticPressureRODStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
PARKER ISO Cylinder P1C-S063ASE0865
The PARKER ISO Cylinder P1C-S063ASE0865 is designed for use in pneumatic systems, offering precise movement with high durability. Built for compressed air applications, this cylinder features a 63 mm bore diameter, a 865 mm stroke, and a robust design ideal for a variety of industrial applications.
Manufacturer: PARKER
Model: P1CS063ASE0865
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 865 mm
- Bore x Stroke: 63 x 865 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 77 x 1010 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
