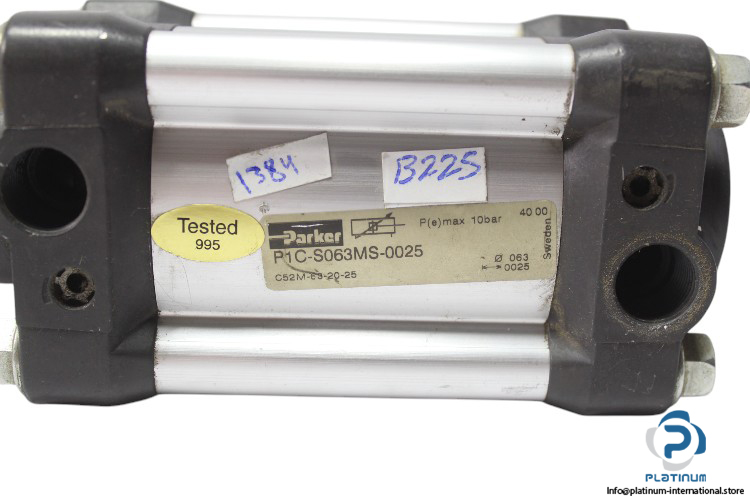

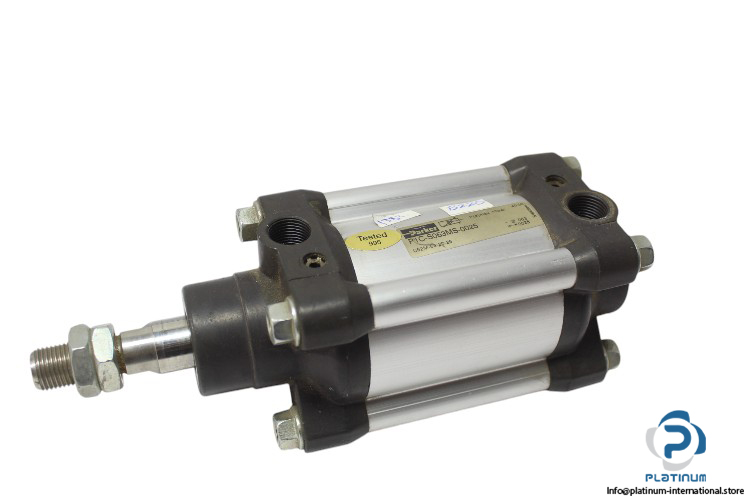

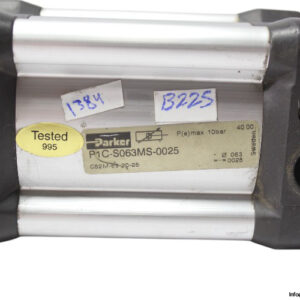

Parker P1C-S063MS-0025 ISO Cylinder
New
In stock1 unitReady to ship
ISO Cylinder
PARKER P1C-S063MS-0025 ISO Cylinder is a precision-engineered pneumatic actuator designed for industrial automation. Featuring a 63 mm bore, 25 mm stroke, and double-acting operation, it ensures efficient motion control and reliable performance. Equipped with a male piston rod end and G 3/8 pneumatic connection.25mm3/863mmActuatorAutomationboreCconnectionControlCylinderdouble-actingGhigh-performanceIndustrialISOmaleMotionP1C-S063MS-0025ParkerPistonPneumaticRODSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
PARKER P1C-S063MS-0025 ISO Cylinder
The PARKER P1C-S063MS-0025 ISO Cylinder is a high-quality pneumatic actuator designed for industrial applications requiring precise motion control and durability. Built to ISO standards, this cylinder ensures reliable performance with optimal efficiency in demanding automation systems.
Manufacturer: PARKER
Type: ISO Cylinder
Model: P1C-S063MS-0025
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke | 25 mm |
| Bore x Stroke | 63 x 25 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 78 x 175 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
