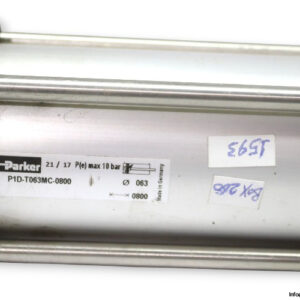

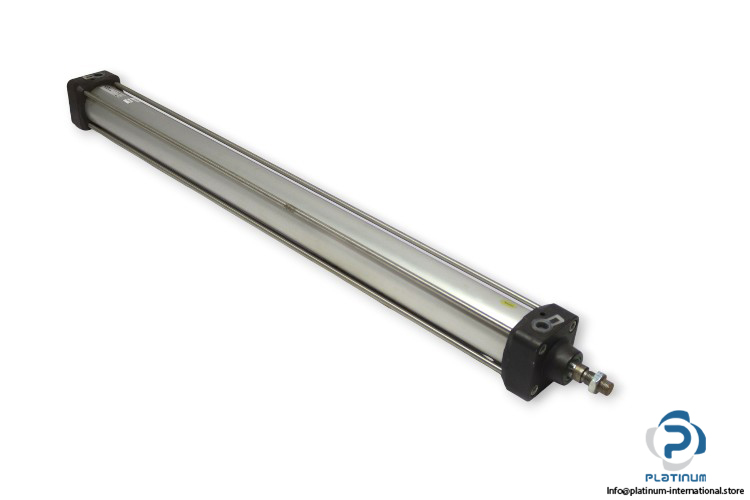

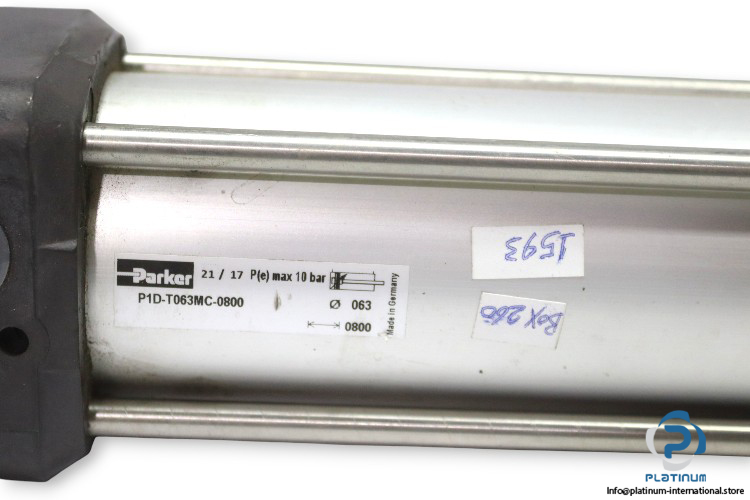

Parker P1D-T063MC-0800 Pneumatic Cylinder
New
In stock3 unitsReady to ship
Pneumatic Cylinder
The PARKER P1DT063MC0800 is a double-acting pneumatic cylinder with a 63 mm bore and 800 mm stroke, offering reliable motion control, G 3/8 connection, and 10 bar pressure capacity for industrial automation systems.63800ActingActuatorAirboreCompressedCylinderDoubleG3/8IndustrialLinearmmMotionP1DP1DT063MC0800ParkerPneumaticSeriesStrokeSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
PARKER P1DT063MC0800 Pneumatic Cylinder
The PARKER P1DT063MC0800 Pneumatic Cylinder is a robust double-acting actuator engineered for precise motion and long service life. Designed for reliable operation in industrial automation, it offers consistent performance and durability under demanding pneumatic conditions.
Manufacturer: PARKER
Type: Pneumatic Cylinder
Model: P1DT063MC0800
Ref No.: 21/17
Series: P1D
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke | 800 mm |
| Bore x Stroke | 63 x 800 mm |
| Rod Diameter | 22 mm |
| Frame Dimensions | 80 x 950 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
