GEA BIH/24V AC 50/60 Hz PNEUMATIC SYSTEM
New
In stock1 unitReady to ship
780,00$
Pneumatic System
GEA BIH/24V AC pneumatic system with integrated Parker solenoid valve, solenoid coil, and quick exhaust valve for controlled industrial pneumatic operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

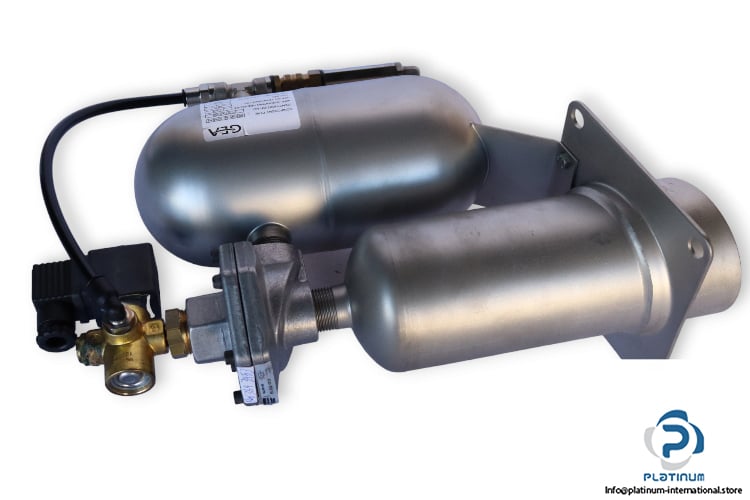

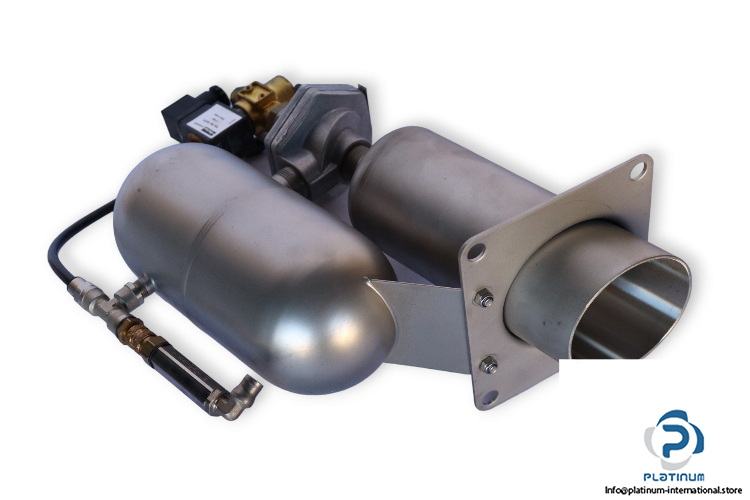

GEA BIH/24V AC Pneumatic System
The GEA BIH/24V AC pneumatic system is an integrated industrial assembly designed for controlled pneumatic operation. It combines a pneumatic unit with a Parker single solenoid valve, solenoid coil, and quick exhaust valve to ensure reliable actuation, pressure control, and efficient exhaust performance.

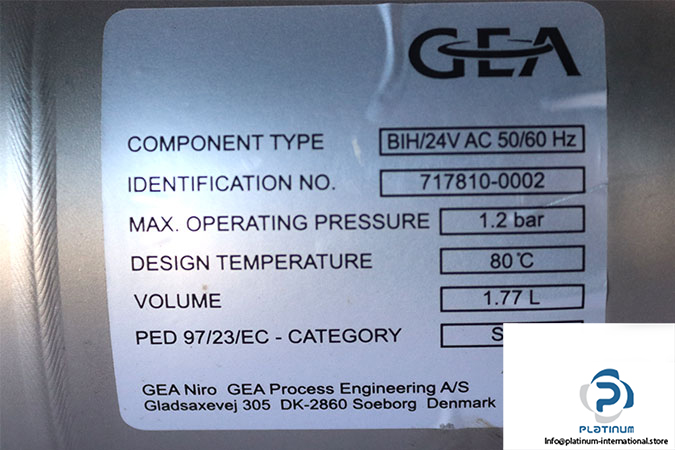

Manufacturer: GEA
Type: Pneumatic System
Model: BIH/24V AC 50/60 Hz
ID No.: 717810-0002
| Max. Operating Pressure | 1.2 bar |
| Volume | 1.77 L |
| Design Temperature | 80°C |
| Attachment | Parker Single Solenoid Valve |
| Series | T |
| Body Material | Brass |
| Valve Type | 3/2-Way |
| Port Size | 1/4 inch |
| Flow Coefficient | 4.5 L/min |
| Maximum Pressure Differential | 2 bar |
| Minimum Pressure Differential | 0 bar |
| Actuation Type | Direct Operated |
| Media | Fluids Air, Fluids Oil |

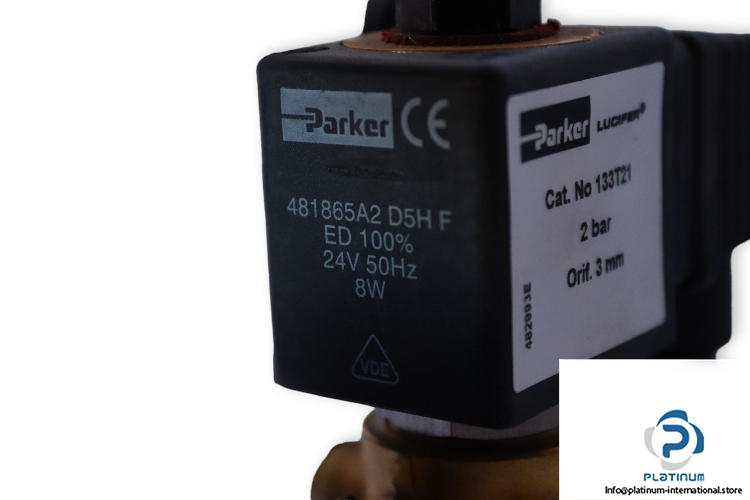

| Attached With | Solenoid Coil |
| Part No. | 482993E |
| Voltage | 24 V AC / 50 Hz |
| Power Consumption | 8 W |
| Protection | IP65 / 00 |
| Operation | ED 100% |
| Design | Rectangle |

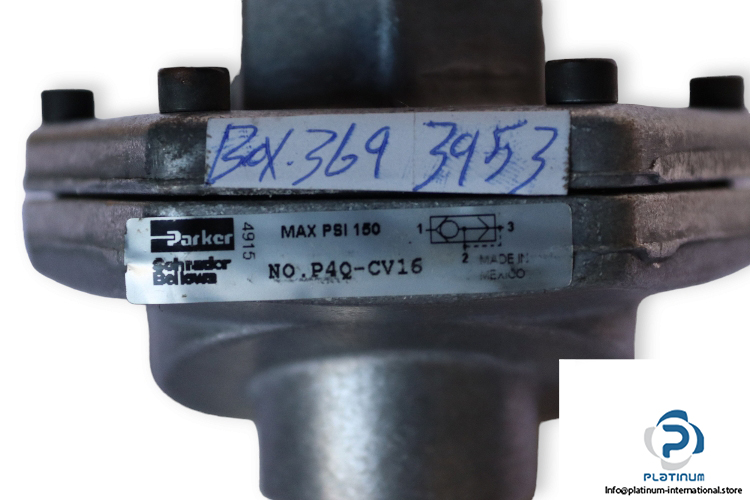

| Attached With | Parker Quick Exhaust Valve |
| Operating Pressure | 0.2 / 10 bar |
| Connection Size | G 3/4 |
| Operating Temperature | -10 / 80°C |
| CV Rating | 7.3 |
| Body Material | Aluminum |
