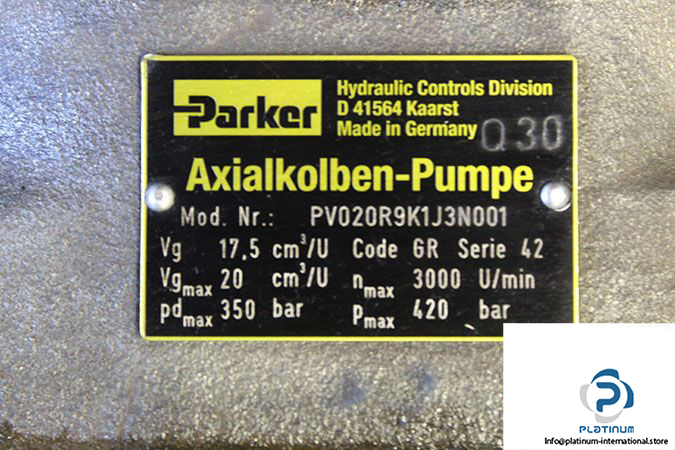

Parker PV020R9K1J3N001 Axial Piston Variable Pump

Manufacturer: Parker

Type: Axial Piston Variable Pump

Model: PV020R9K1J3N001

Size: 20

Displacement: 20 cm³

Output flow at 1500 rpm: 30 l/min

Nominal Pressure: 350 bar

Max. Pressure: 420 bar

Shaft Diameter: 25 mm

Input Power at 1500 rpm and 350 bar: 19.5 kW

Max Speed: 3000 min^-1

Moment of Inertia: 0,0017 kgm²

Viscosity Range: 12 …. 150 mm²/s

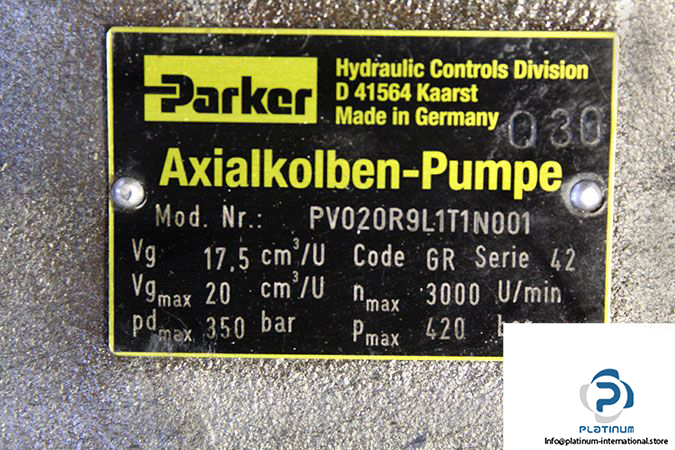

Attachment: PARKER PV020R9L1T1N001 AXIAL PISTON VARIABLE PUMP

Manufacturer: Parker

Type: Axial Piston Variable Pump

Model: PV020R9L1T1N001

Size: 20

Displacement: 20 cm³

Output flow at 1500 rpm: 30 l/min

Nominal Pressure: 350 bar

Max. Pressure: 420 bar

Weight: 37.2 Kg
