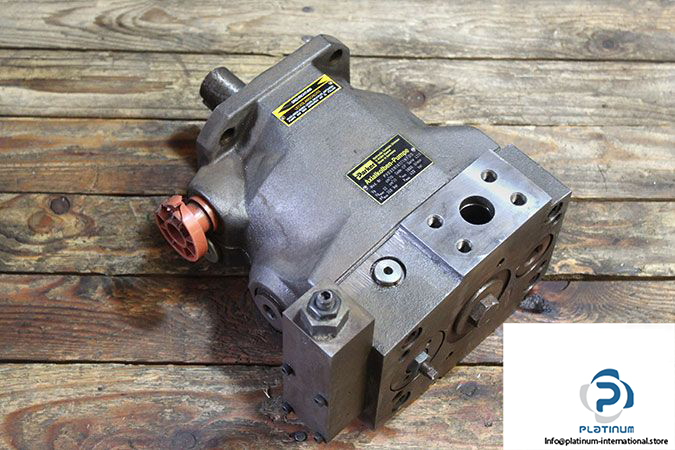

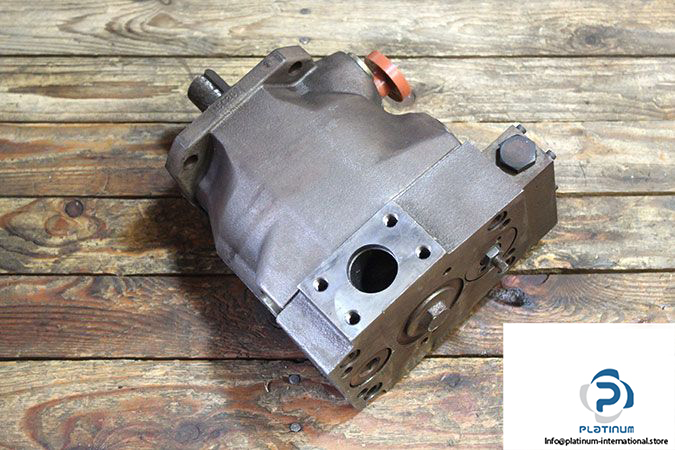

Parker PV032R1K1T1NFDS Axial Piston Variable Pump

Manufacturer: Parker

Type: Axial Piston Variable Pump

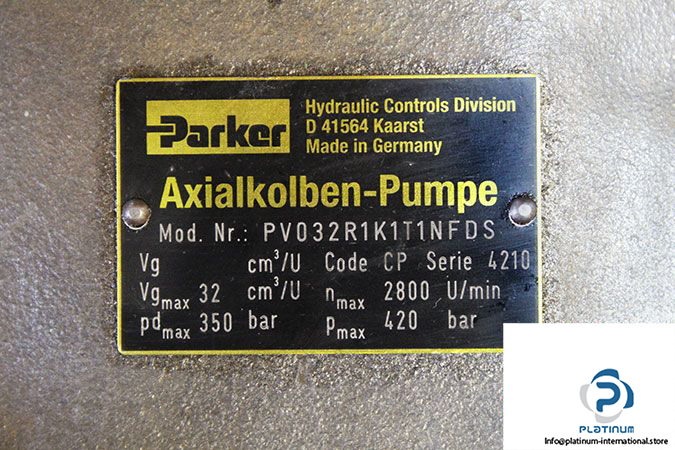

Model: PV032R1K1T1NFDS

Size: 32

Displacement: 32 cm³

Output flow at 1500 rpm: 48 l/min

Nominal Pressure: 350 bar

Max. Pressure: 420 bar

Max. Case Drain Pressure: 2 bar

Min. Inlet Pressure: 0,8 bar

Max. Inlet Pressure: 16 bar

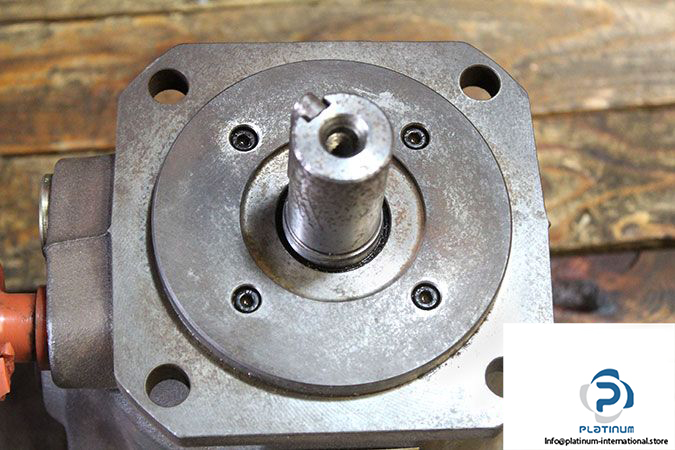

Shaft Diameter: 32.5 mm

Input Power at 1500 rpm and 350 bar: 31 KW

Max Speed: 2800 min^-1

Moment of Inertia: 0,0043 kgm²

Viscosity Range: 12 …. 150 mm²/s

Weight: 31.5 Kg
