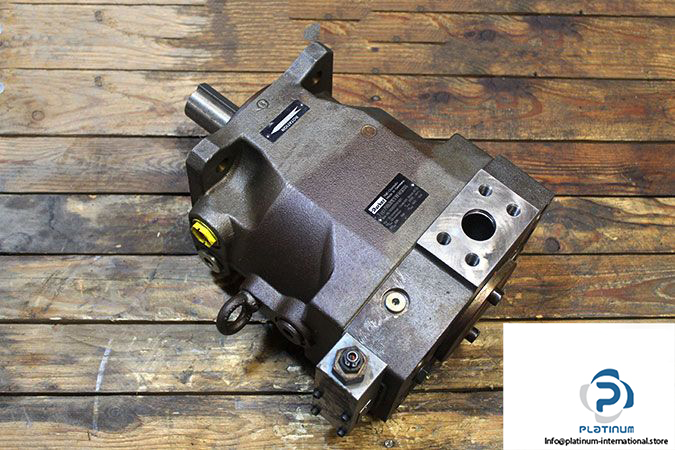

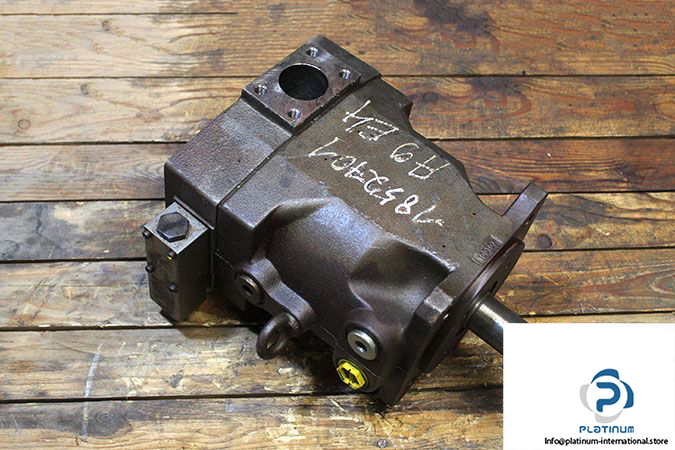

Parker PV063R9K1T1NFWSK0176 Axial Piston Variable Pump
Manufacturer: Parker
Type: Axial Piston Variable Pump

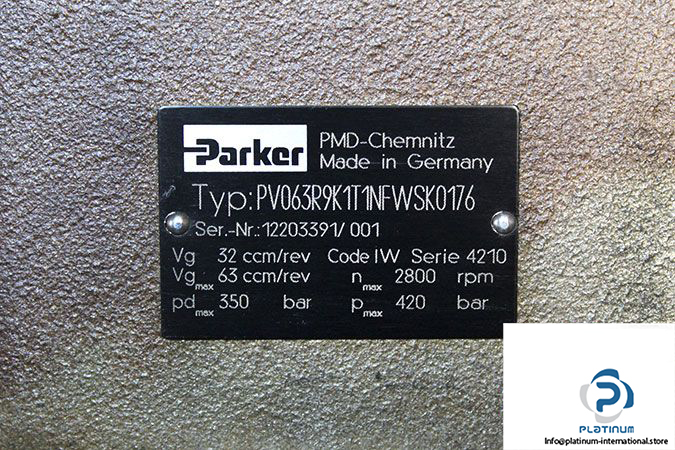

Model: PV063R9K1T1NFWSK0176
Ser.-Nr: 12203391/001
Size: 63
Max. Displacement: 63 cm3
Output flow at 1500 rpm: 94.5 l/min
Nominal Pressure: 350 bar
Max. Pressure: 420 bar
Max. Case Drain Pressure: 2 bar
Min. Inlet Pressure: 0.8 bar
Max. Inlet Pressure: 16 bar

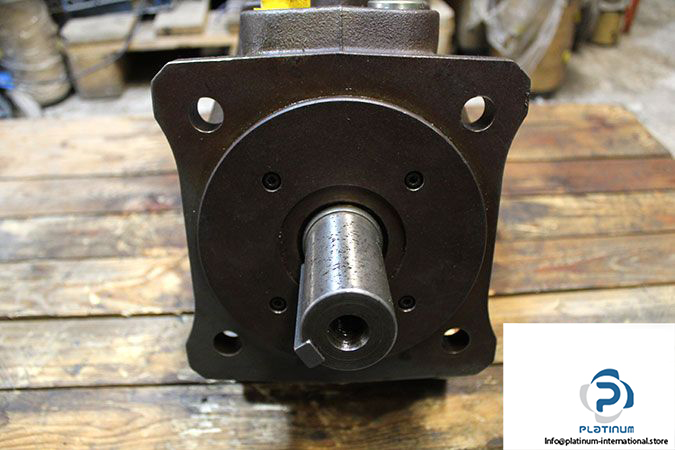

Shaft Diameter: 40 mm
Input Power at 1500 rpm and 350 bar: 61.3 kW
Max Speed rpm: 2800 min-1
Moment of Inertia: 0.018 kgm2
Viscosity Range: 16 … 100 mm2/s
Weight: 60 kg

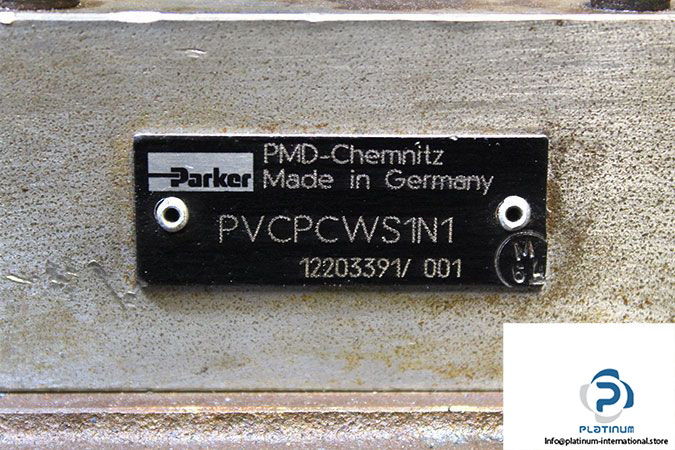

Attachment: PARKER PVCPCWS1N1 COMPENSATOR
Manufacturer: Parker
Type: Compensator
Model: PVCPCWS1N1
