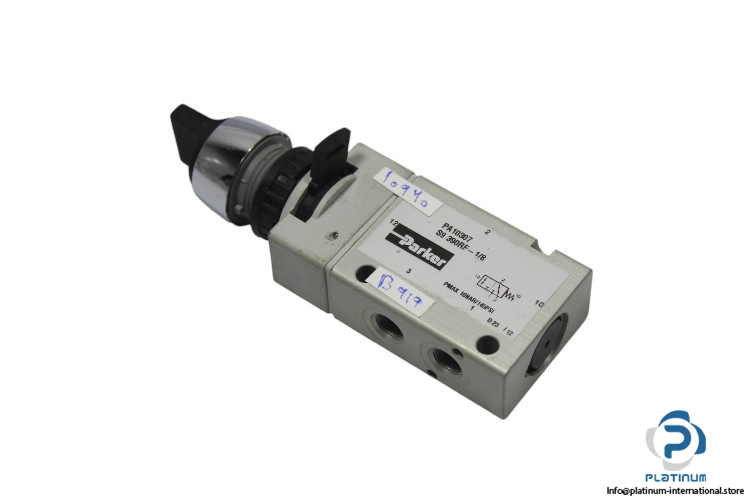

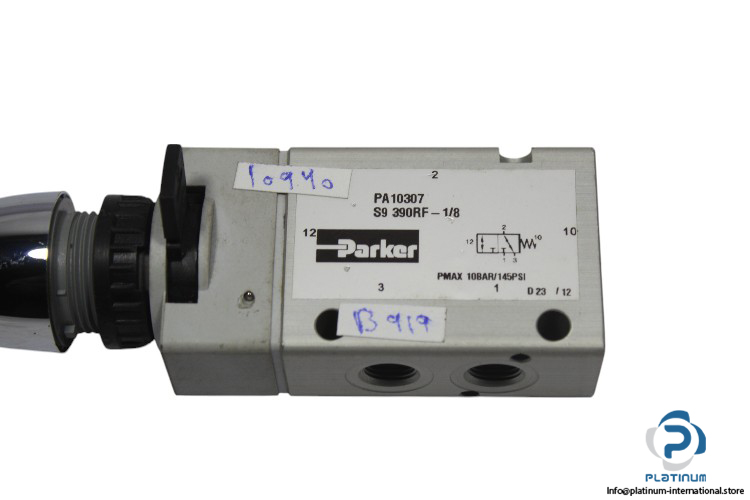

Parker S9 390RF-1/8 Directional Control Valve With Switch
Directional Control Valve with Switch
PARKER S9 390RF-1/8 Directional Control Valve offers precise airflow regulation for pneumatic systems. Designed for panel mounting, it features a G 1/8 port size, 500 l/min nominal flow, and operates at up to 10 bar. Suitable for industrial automation and compressed air applications.PARKER S9 390RF-1/8 Directional Control Valve with Switch
The PARKER S9 390RF-1/8 Directional Control Valve with Switch is designed for precise pneumatic control in industrial applications. Engineered for reliability and efficiency, this valve ensures smooth operation and optimal airflow regulation. Its compact design makes it ideal for panel mounting, providing seamless integration into various pneumatic systems.
Manufacturer: PARKER
Type: Directional Control Valve with Switch
Model: S9 390RF-1/8
Order No.: PA 10307
| Fluid | Filtered Compressed Air |
| Operating Pressure Max. | 10 bar |
| Nominal Flow | 500 l/min |
| Actuation System | Basic Valve for Panel Mounting |
| Port Size | G 1/8 |
| Temperature Range | -10 / 60 °C |
