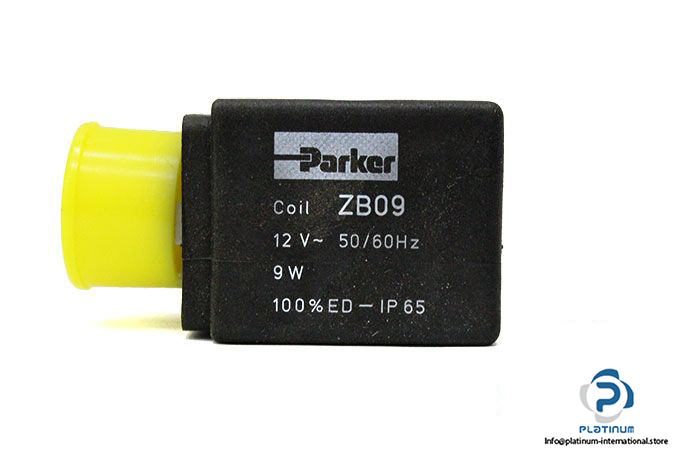

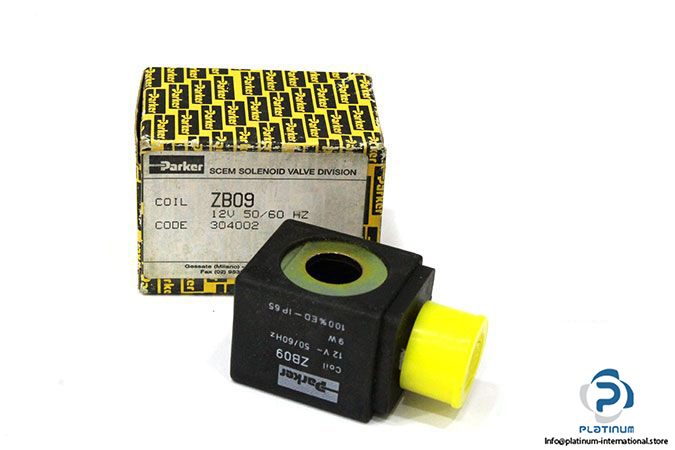

Parker ZB09 12V Solenoid Coil

Manufacturer: PARKER

Type: Solenoid Coil

Model: ZB09

Part No.: 304002

Power supply: 12 V AC

• Frequency: 50 / 60 Hz
• Power consumption: 9 W

Duty cycle: 100 % ED

Electrical connection: 3-pin

Connector: DIN 43650 A – PG 9 or PG 11

Plug design: Cylindrical

Inner diameter: 14.2 mm

Length: 33 mm

Solenoid coil material: encapsulated in thermoplastic containing 30% glass fiber

Ambient temperature: -10 °C … 50 °C

Insulation class: F (155°C)

Protection Class: IP65

Weight: 0.14 kg
