Paul Peuser DG ST 45 1.94 Dosing Control Unit
211,11$
Dosing Control Unit

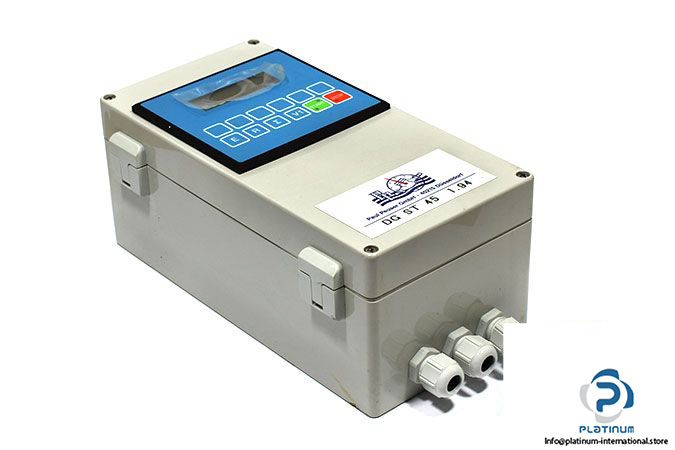

The Paul Peuser DG ST 45 1.94 Dosing Control Unit is designed for automated dosing, contact counting, and solenoid valve control. It features IP65 protection, easy quantity preselection, and membrane keyboard programming.Paul Peuser DG ST 45 1.94 Dosing Control Unit
The Paul Peuser DG ST 45 1.94 Dosing Control Unit is designed for precision dosing applications, contact counting, and solenoid valve control. Engineered for automated dosing processes, this unit provides accurate evaluation of volume-proportional impulses and enables easy quantity preselection.
Manufacturer: Paul Peuser
Type: Dosing Control Unit
Model: DG ST 45 1.94
Features:
Evaluation of volume-proportional impulses
Control of the solenoid valve
Easy-to-set quantity preselection
Connection for external start/stop buttons
Wall mounting or panel mounting housing
Customizable special designs available
With its reliable control features and user-friendly programming, the Paul Peuser DG ST 45 1.94 is an essential solution for automated dosing and process control applications.
| Application | Automated dosing processes, contact counters, solenoid valve control |
| Power Supply | 230V AC |
| Entrances | Reed switch, NAMUR encoder |
| Frequency | Max. 1000 Hz |
| Programming | By means of a membrane keyboard |
| Operating Temperature | 0 to 50 °C |
| Protection Class | IP65 |
| Dimensions | 240 x 120 x 100 mm |
