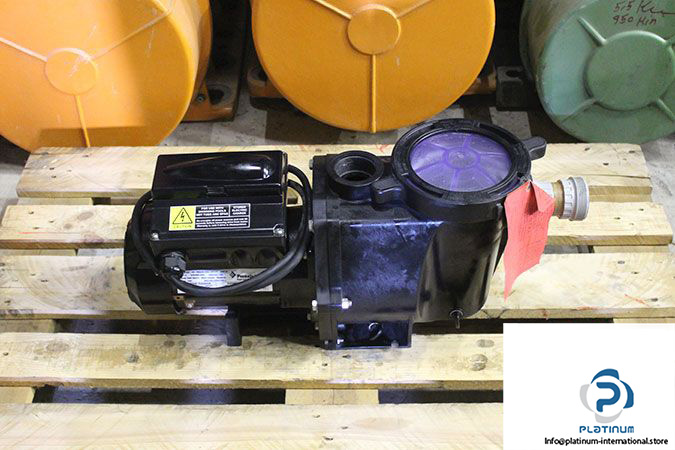

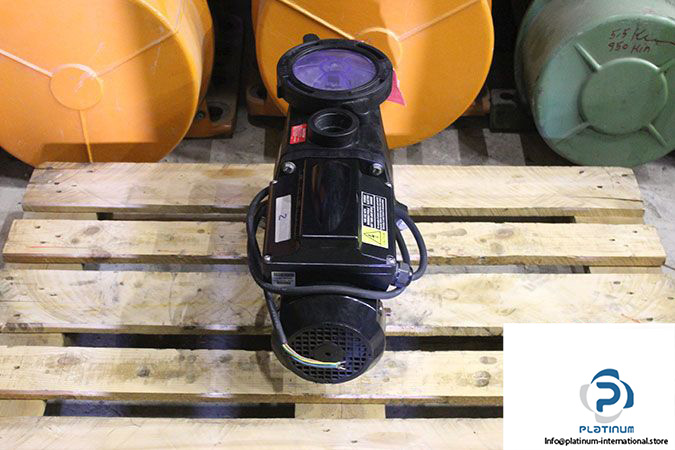

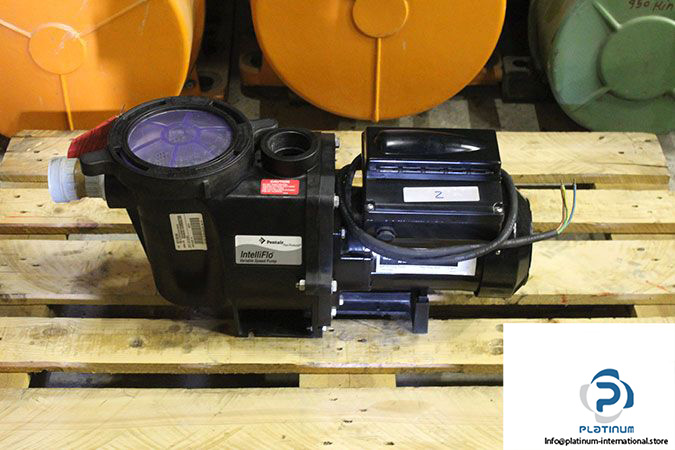

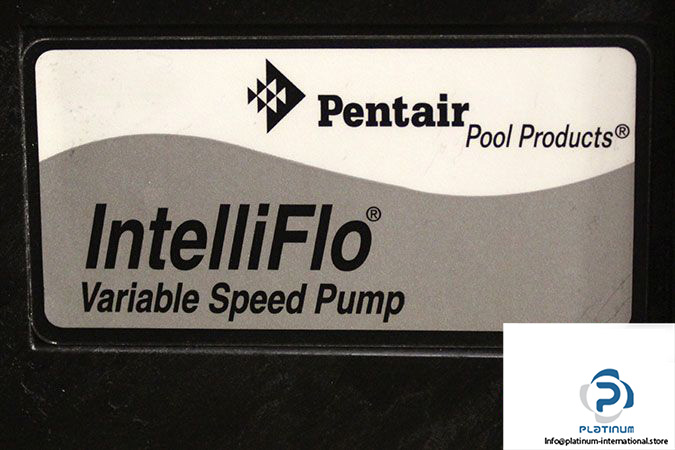

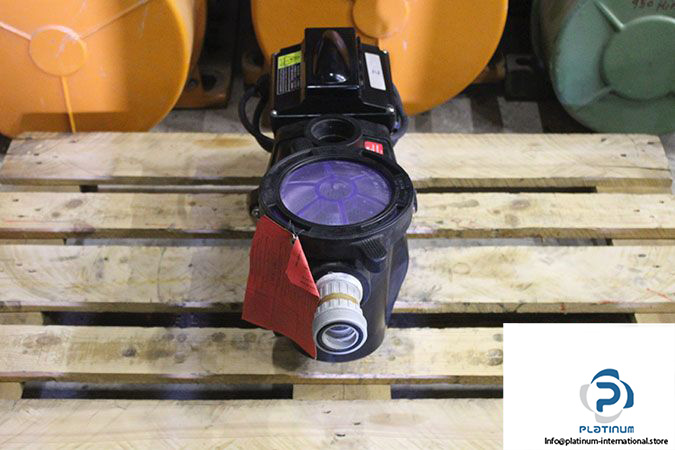

Pentair Water Intelliflo Variable Speed Pump

Manufacturer: Pentair Water

Type: Variable Speed Pump

Model: Intelliflo

Frame: 56

Type: 3

Total Head [m]: 88

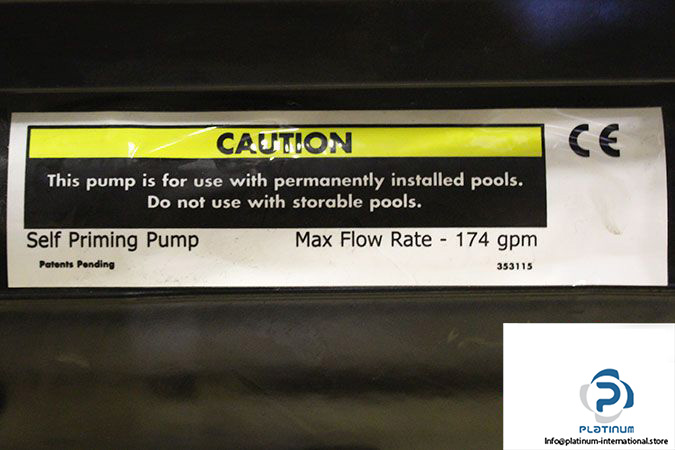

Max Flow Rate [gpm]: 174

Max Flow Rate [m³/h]: 40.0

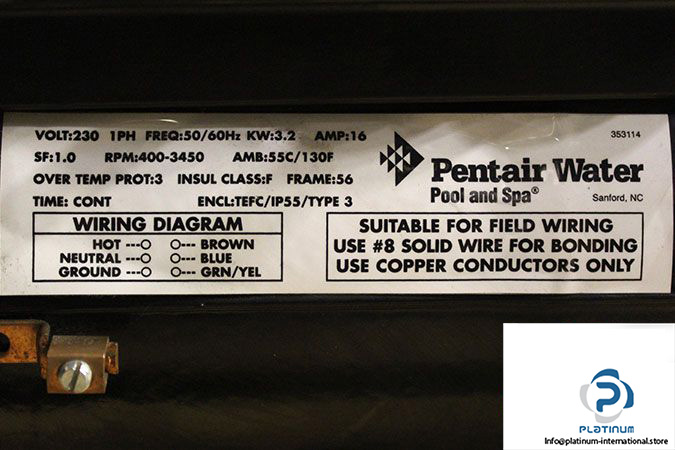

Rated Voltage [V]: 230

Rated Current [A]: 16.0

Rated Power [kW]: 3.2

Rated Speed [rpm]: 400-3450

Frequency [Hz]: 50/60

Ambient Temperature [°C]: 55

Protection Class [IP]: 55

Duty: S1

Insulation Class: F
