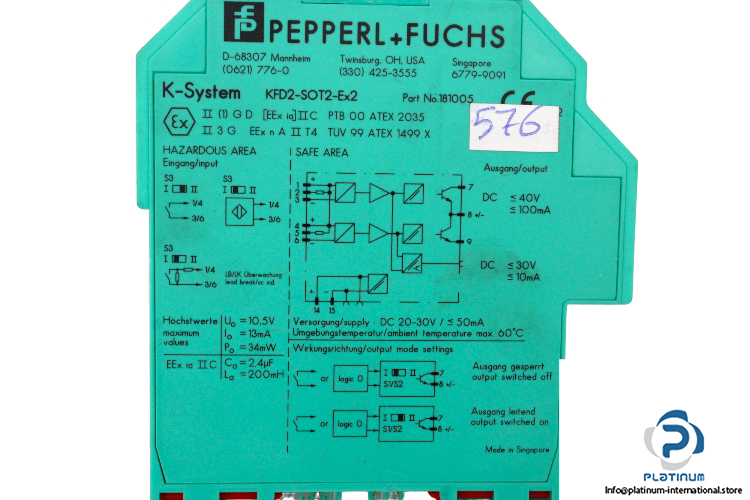

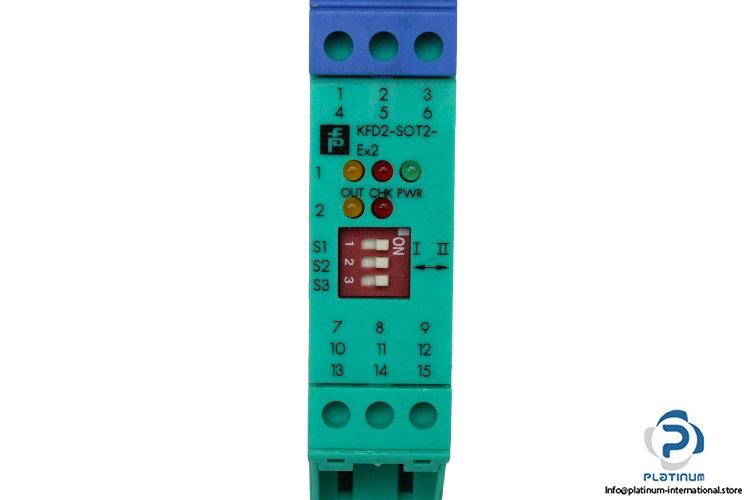

Pepperl Fuchs KFD2-SOT2-EX2 Switch Amplifier

Manufacturer: Pepperl Fuchs

Type: Switch Amplifier

Model: KFD2-SOT2-EX2

Part No.: 181005

Supply voltage: 20 … 30 V DC

Rated current: ≤ 50 mA

Switching voltage: max. 30 V DC

Display: LED

Data for application in connection with hazardous areas

Voltage: 10.5 V

Current: 13 mA

Power: 34 mW

Maximum safe voltage: 40 V DC

Ambient temperature: -20 … 60 °C

Degree of protection: IP20

Mounting: 35 mm DIN mounting rail

Connection: screw terminals

Dimensions: 20 x 119 x 115 mm
