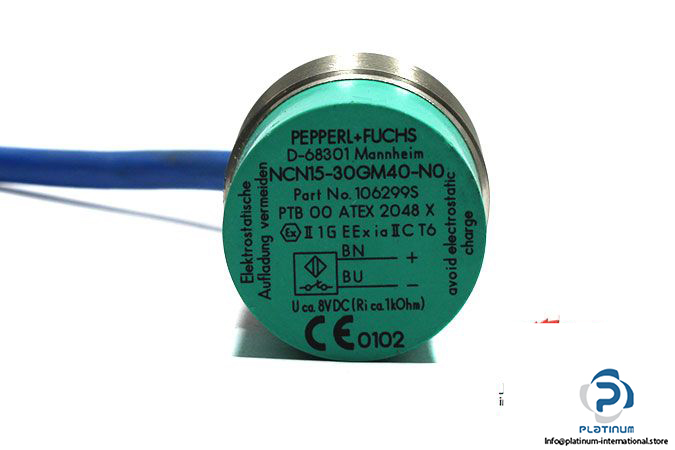

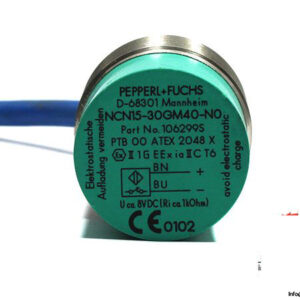

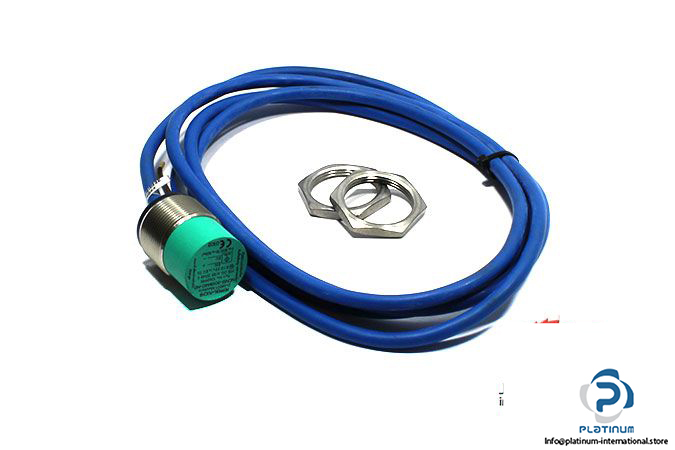

Pepperl Fuchs NCN15-30GM40-N0 Inductive Sensor

Manufacturer: Pepperl + Fuchs

Type: Inductive Sensor

Model: NCN15-30GM40-N0

Part No: 106299S

Rated Operating Distance: 15 mm

Assured Operating Distance: 0 … 12.15 mm

Operating Voltage: 8.2 V DC

Switching Function: Normally Closed

Output Type: NAMUR

Switching Frequency f: 0 … 150 Hz

Installation: Non-Flush

Protection Degree: IP66 / IP67

Ambient Temperature: -25 … 100 °C

Material: Housing: Stainless Steel 1.4305 / AISI 303, Sensing Face: PBT

Connection: Cable 2 m, 2 Wire

Diameter, Length: 30, 40 mm

Weight: 0.19 kg
