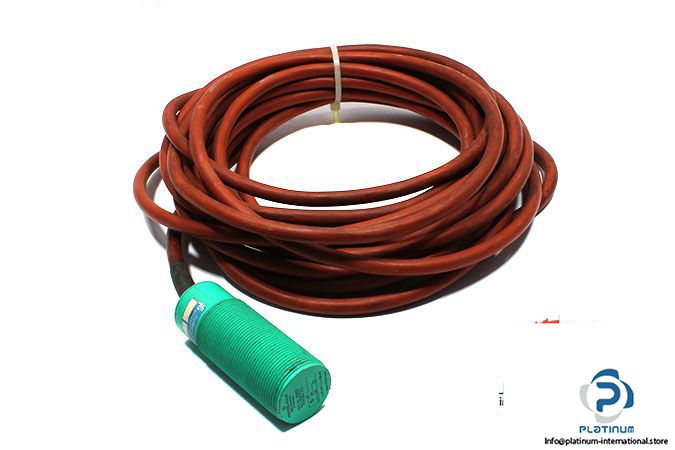

Pepperl Fuchs NJ15-30GK-E2-T Inductive Sensor

Manufacturer: Pepperl + Fuchs

Type: Inductive Sensor

Series: Comfort

Model: NJ15-30GK-E2-T

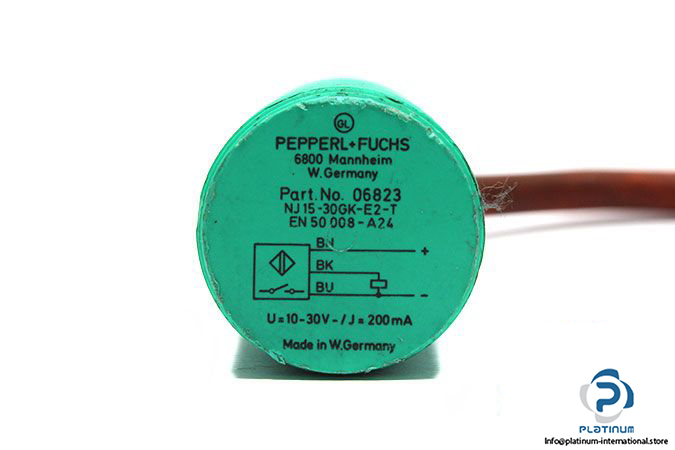

Part No: 06823

Rated Operating Distance: 15 mm

Assured Operating Distance: 0 … 12.15 mm

Operating Voltage: 10 … 30 V DC

Voltage Drop: ≤ 3 V

Operating Current: 0 … 200 mA

No-Load Supply Current: ≤ 20 mA

Output Type: PNP

Switching Function: Normally Open

Switching Frequency f: 0 … 300 Hz

Installation: Non-Flush

Protection Degree: IP68

Ambient Temperature: -25 … 100 °C

Material: Housing: PBT, Sensing Face: PBT

Connection: Cable PUR, 3 Wire

Diameter, Length: 30, 80 mm

Weight: 0.825 kg
