Pepperl Fuchs NJ4-12GM40-E2-V1 13952S Inductive Sensor
Used
In stock1 unitReady to ship
INDUCTIVE SENSOR
The Pepperl+Fuchs NJ4-12GM40-E2-V1 is a non-flush, PNP, normally open inductive sensor with a 4 mm sensing range, IP67 protection, and durable stainless steel housing for industrial automation applications.4mmAutomationDetectionDistanceFlushInductiveIndustrialIP67NJ4-12GM40-E2-V1NonNormallyOpenOutputPepperl+FuchsPNPProximitySensingSensorstainlessSteelSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

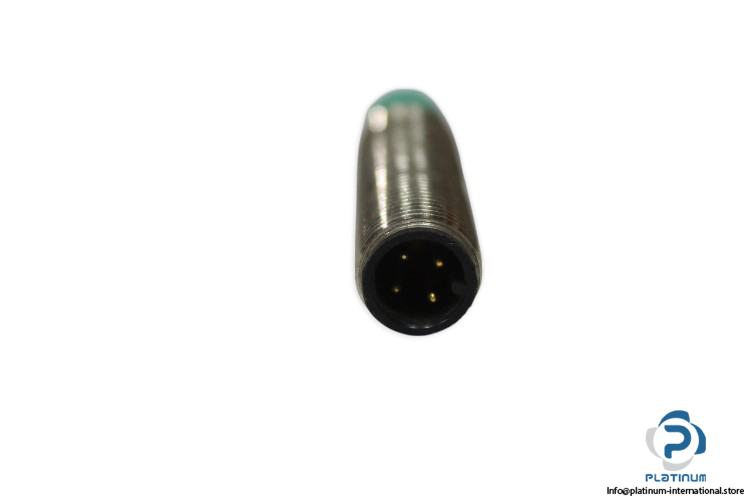

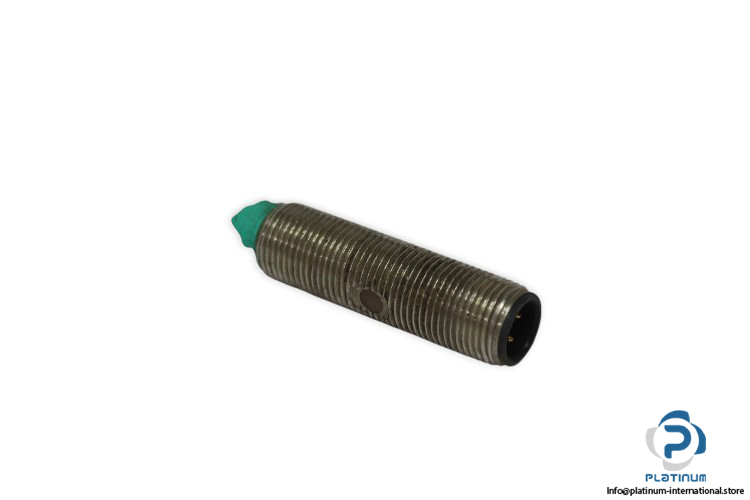

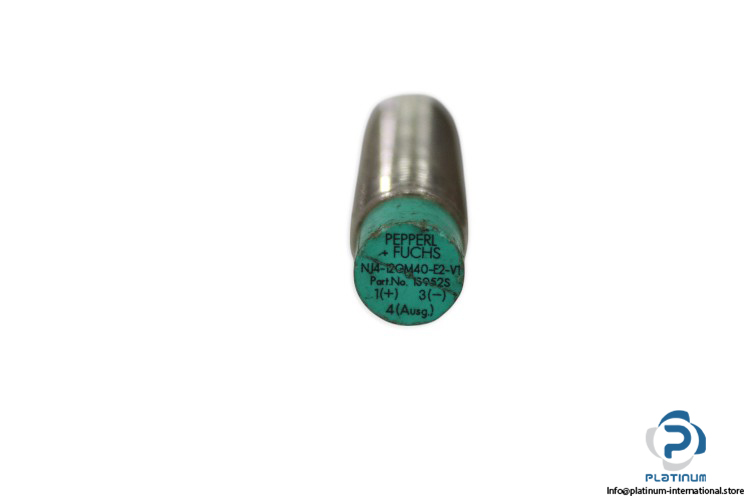

PEPPERL+FUCHS NJ4-12GM40-E2-V1 INDUCTIVE SENSOR
The Pepperl+Fuchs NJ4-12GM40-E2-V1 is a high-performance inductive sensor designed for precise and reliable detection of metal objects in industrial automation environments. With a robust stainless steel housing, IP67 protection, and non-flush installation design, this sensor offers long service life and consistent performance in demanding conditions.
Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NJ4-12GM40-E2-V1
Part No.: 13952S
| Rated Operating Distance | 4 mm |
| Assured Operating Distance | 0 / 3.24 mm |
| Operating Voltage | 10 / 60 V DC |
| Switching Current | 0 / 200 mA |
| No-Load Supply Current I‚ | ‰¤ 9 mA |
| Voltage Drop Ud | ‰¤ 3 V |
| Signal Output | PNP |
| Switching Function | Normally Open |
| Switching Frequency f | 0 / 2000 Hz |
| Installation | Non-Flush |
| Protection Degree | IP67 |
| Ambient Temperature | -25 / 70 °C |
| Material | Housing: Stainless Steel, Sensing Face: PBT |
| Connection | Connector M12 x 1, 4-pin |
| Dimensions (Diameter x Length) | 12 x 50 mm |
