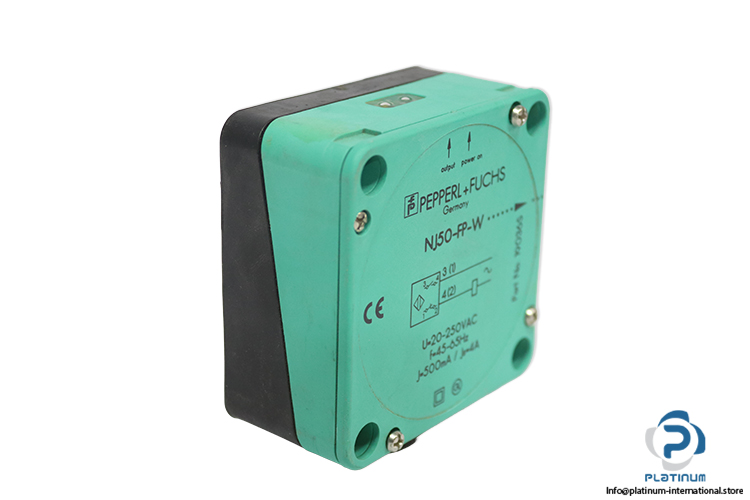

Pepperl + Fuchs NJ50-FP-W-P1 Inductive Sensor
New
In stock1 unitReady to ship
Inductive Sensor
A robust AC inductive proximity sensor with a 50 mm sensing distance, designed for reliable object detection in industrial automation and control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Pepperl + Fuchs NJ50-FP-W-P1 Inductive Sensor
A high-performance inductive proximity sensor designed for industrial automation applications requiring long sensing distance, AC switching capability, and robust environmental protection. This sensor is suitable for machinery monitoring, position detection, and control systems in harsh industrial environments. Manufacturer: Pepperl + Fuchs
Type: Inductive Sensor
Model: NJ50-FP-W-P1

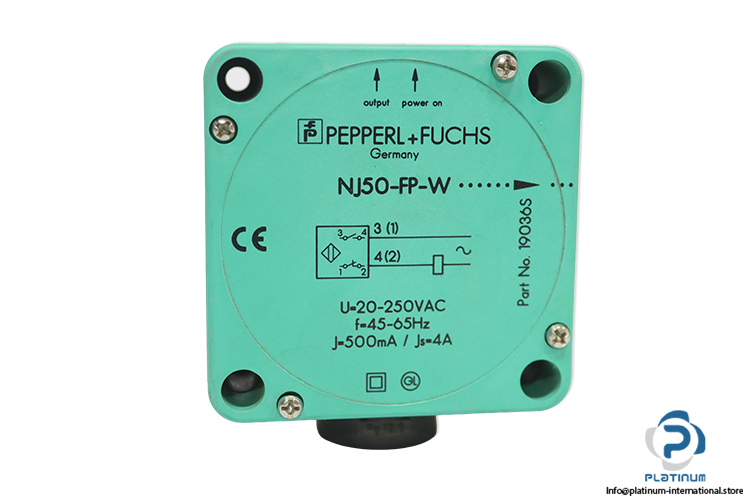

Part No.: 19036S

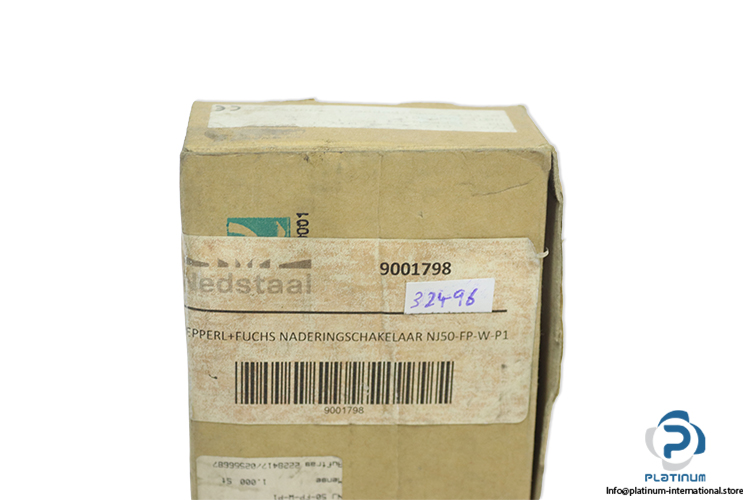

Code: 9001798

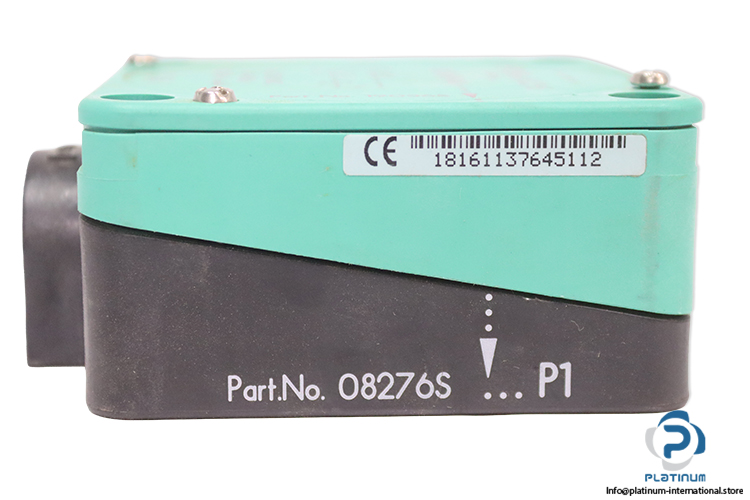

Serial No.: 18161137645112
| Switching Element Function | AC Make / Break Function |
| Rated Operating Distance (sn) | 50 mm |
| Assured Operating Distance (sa) | 0 / 40.5 mm |
| Installation | Not Embeddable |
| Output Polarity | AC |
| Reduction Factor (Al) | 0.4 |
| Reduction Factor (Cu) | 0.3 |
| Reduction Factor (V2A) | 0.85 |
| Nominal Operating Voltage (UB) | 20 / 250 V AC |
| Switching Frequency | 45 / 65 Hz |
| Hysteresis (H) | 0 / 10 % (typ.) |
| Voltage Drop (Ud) | 7 V |
| Momentary Current | 0 / 4000 mA (20 ms, 0.1 Hz) |
| Operating Current (IL) | 10 / 500 mA |
| Off-State Current (Ir) | 0 / 2.5 mA (typ.) |
| Operating Voltage Display | LED, Green |
| Switching State Indication | LED, Yellow |
| Standard Conformity | IEC / EN 60947-5-2:2004 |
| Ambient Temperature | -25 / +70 °C |

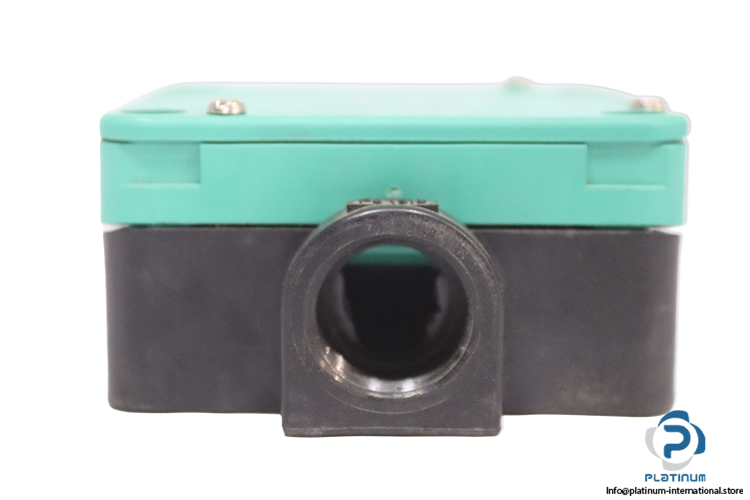

| Connection Type | Terminal Compartment |
| Core Cross-Section | Up to 2.5 mm² |
| Housing Material | PBT |
| Sensing Face Material | PBT |
| Dimensions | Length 80 × Height 40 mm |
| Protection Degree | IP67 |
