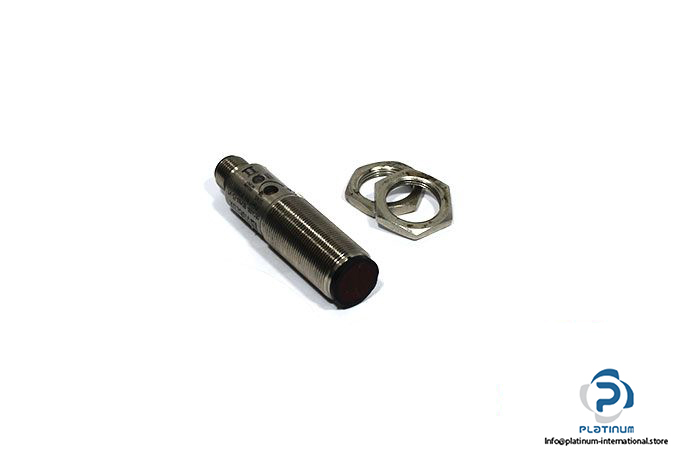

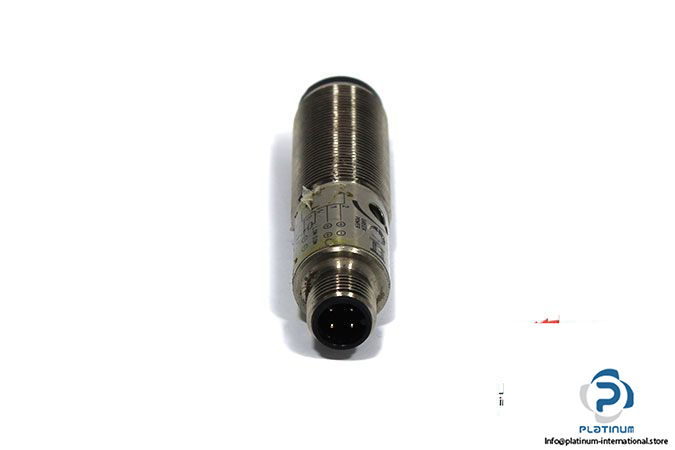

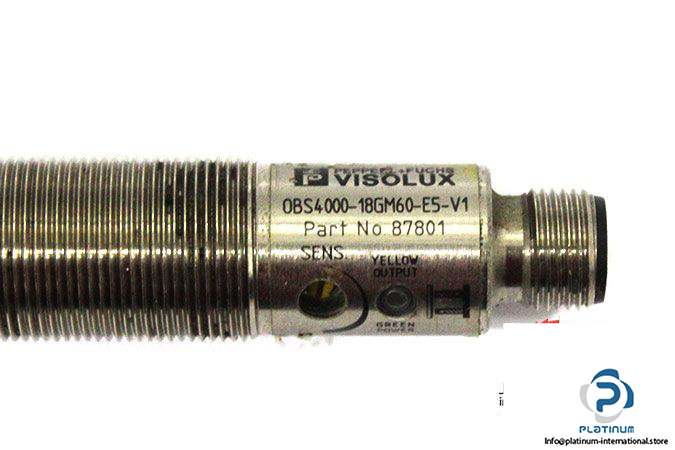

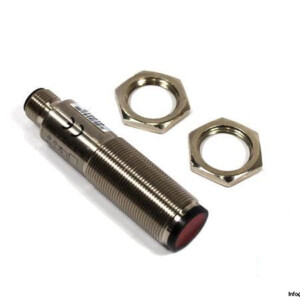

Pepperl Fuchs OBS4000-18GM60-E5-V1 Photoelectric Retro-Reflective Sensor

Manufacturer: PEPPERL + FUCHS

Type: Photoelectric Retro-Reflective Sensor

Model: OBS400018GM60E5V1

Part No.: 87801

Effective Detection Range: 0 … 4 mm

Threshold Detection Range: 4.5 mm

Operating Voltage: 10 … 30 V DC

Switching Current: 100 mA

Switching Frequency: 500 Hz

Electrical Design: PNP

Switching Output: Light/Dark on Electrically Switchable

Response Time: 1 ms

Type of Light: Modulated Visible Red Light, 660 nm

Angle of Divergence: 3 °

Adjustment: Potentiometer

Connector Type: M12 Connector, 4-Pin

Protection Class: II

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 55 °C

Diameter, Housing Length: 18, 60 mm

Housing Material: Brass, Nickel-Plated

Sensing Face Material: PMMA

Reference Target: H50 Reflector

Supplied Accessories: 2 Lock Nuts

Weight: 55 g
