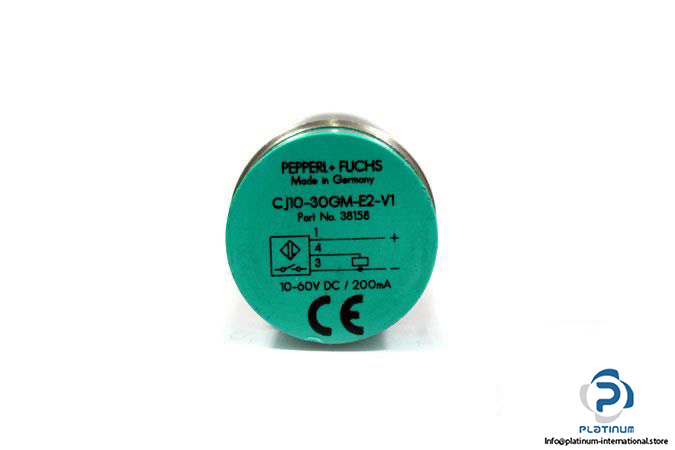

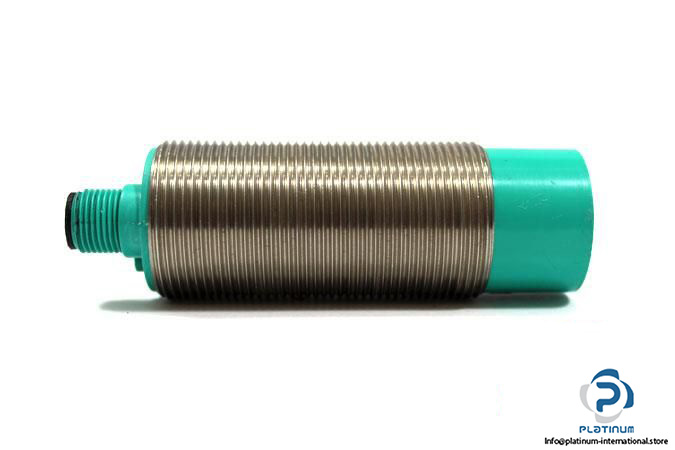

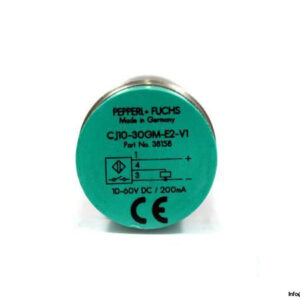

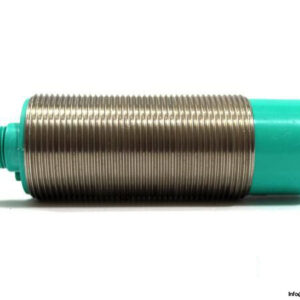

Pepperl+Fuchs CJ10-30GM-E2-V1 Capacitive Sensor

Manufacturer: PEPPERL FUCHS

Type: CAPACITIVE SENSOR

Model No.: CJ1030GME2V1

Part No.: 38156

Rated operating distance: 10 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200mA

Switching frequency: 0 … 10 Hz

Electrical design: PNP

Switching output: Normally open

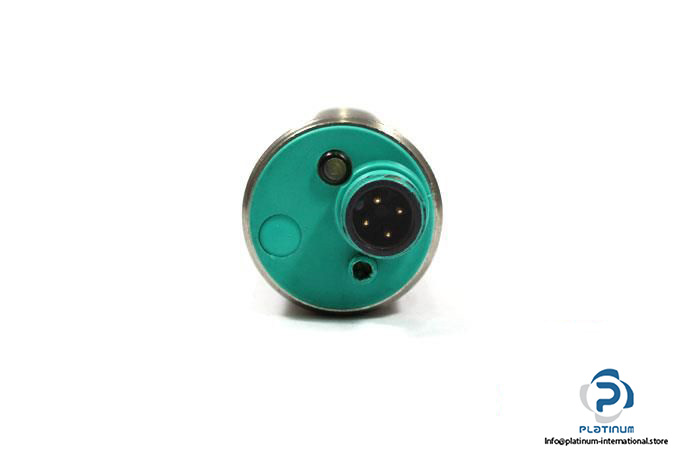

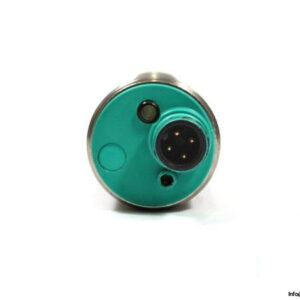

Connector type: M12 Connector, 4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 30, 80 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Non-flush mountable

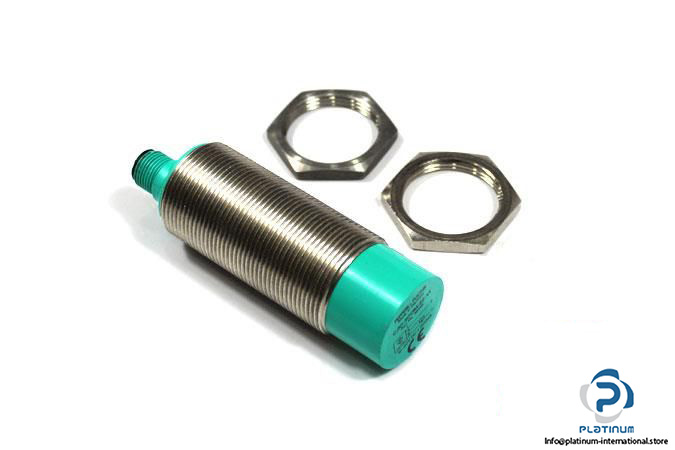

Supplied items: 2 lock nuts
