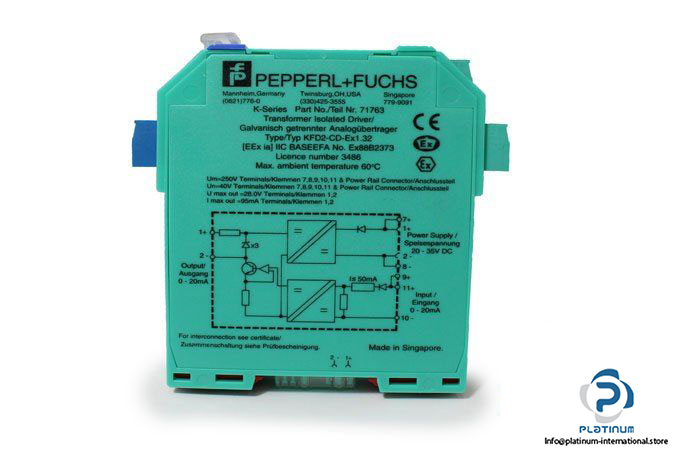

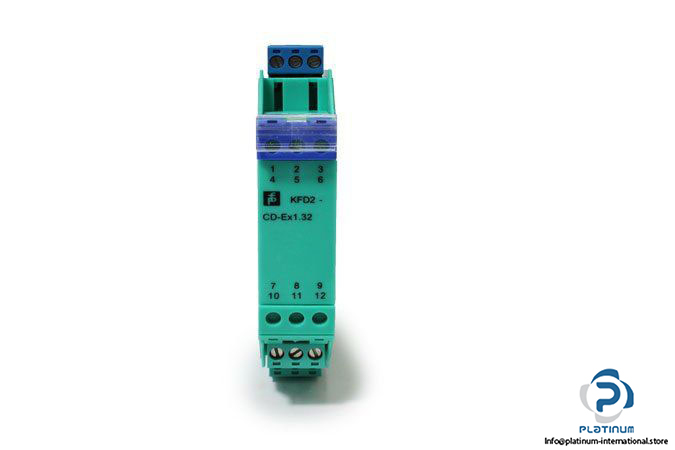

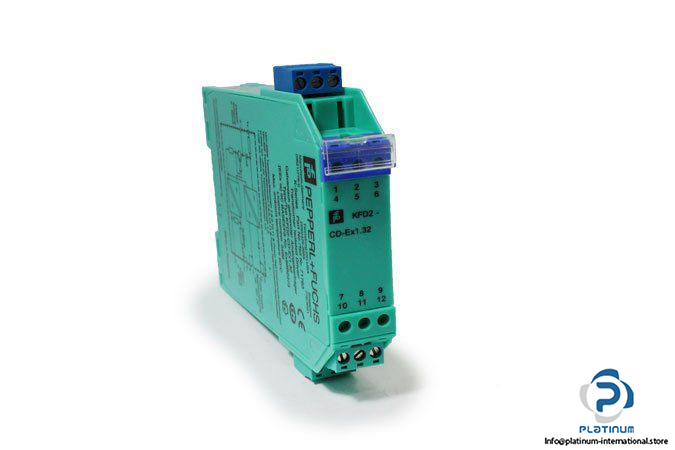

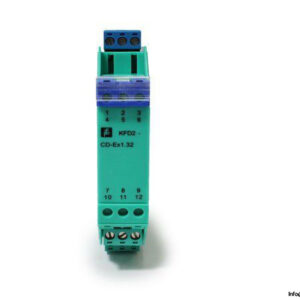

Pepperl+Fuchs KFD2-CD-EX1.32 Current/Voltage Driver

Manufacturer: PEPPERL+FUCHS

Type: CURRENT / VOLTAGE DRIVER ( ISOLATED BARRIER)

Model: KFD2-CD-EX1.32

Part No.: 71763

Signal Type: Analog output

Supply Voltage: 20 … 35 VDC

Rated Current: Current output: ≤ 50 mA; Voltage output: ≤ 20 mA

Power Dissipation: 1.2 W

Connection: Power Rail or terminals 7+, 8-

Input:

Connection Side: control side

Connection: terminals 9+, 10-, 11+

Voltage Drop Optional Current Input: approx. 4 V at 20 mA

Input Current: approx. ≤40 mA

Output:

Connection Side: field side

Connection: terminals 1+, 2-

Current Optional: current output: 0 … 20 mA/optional voltage

output: ≤ 20 mA

Voltage Optional: Current Output: 17 V at 20 mA/optional

voltage output: 0 … 10 V

Ambient Temperature: -20 … 60 °C

Protection Degree: IP20

Dimensions: 20 X 107 X 115 mm
