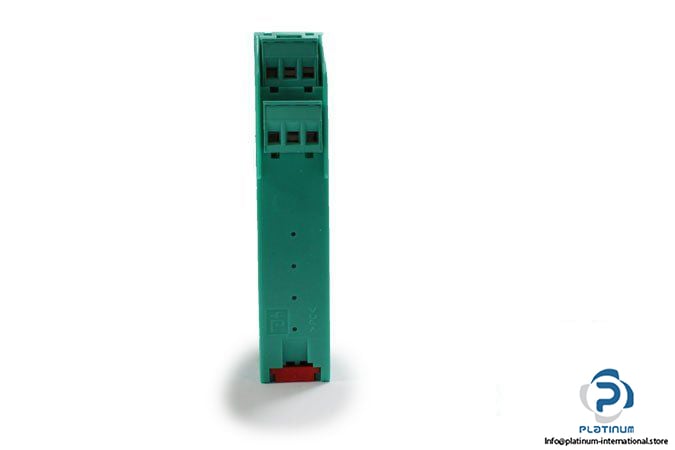

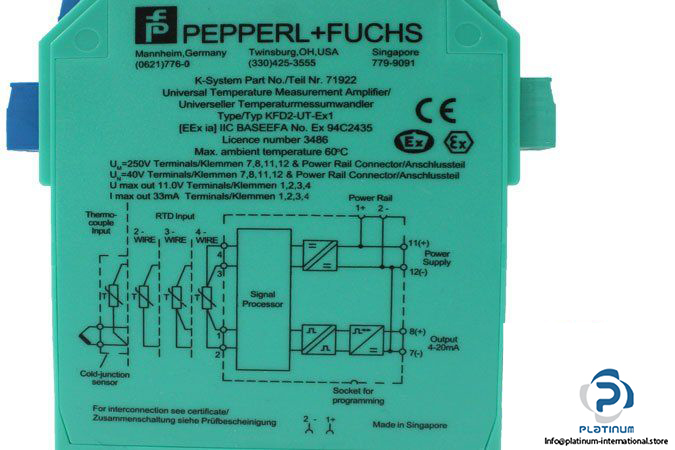

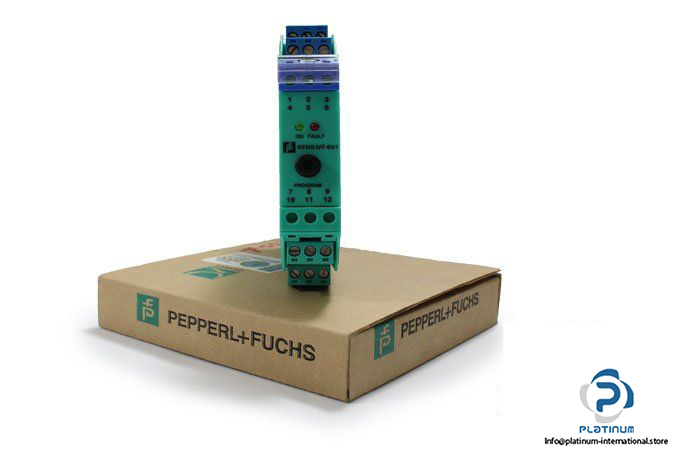

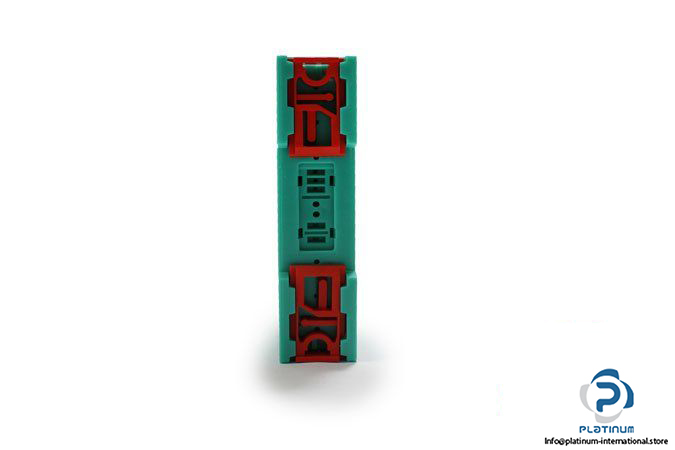

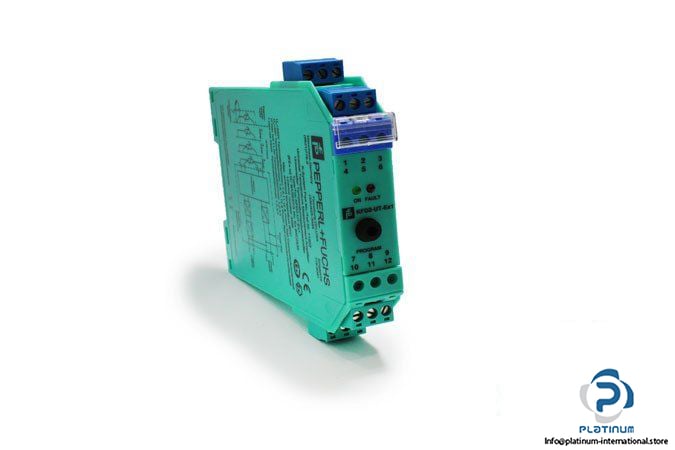

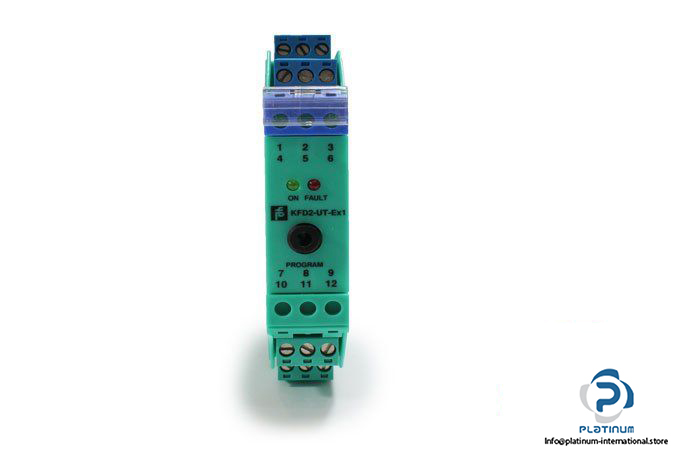

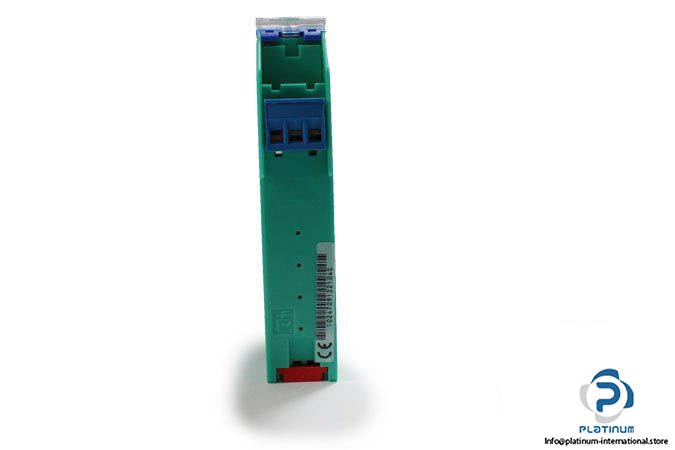

Pepperl+Fuchs KFD2-UT-EX1 Converter

Manufacturer: PEPPERL+FUCHS

Type: CONVERTER

Model: KFD2-UT-EX1

Part No.: 71922

Supply Voltage: 20 … 35 VDC

Supply Power Loss: 1 W

Power Consumption: ≤ 1.5 W

Connection: Power Rail or terminals 11+, 12-

Input:

Connection: terminals 1, 2, 3 and 4

Lead Resistance: ≤ 50 Ω per lead

Measuring Current: approx. 400 µA

Output:

Connection: terminals 7-, 8+

Safety Maximum Voltage: 250 V

Current Output: 4 … 20 mA; 20.5 mA at input signal overrange

Voltage Output: 1 … 5 V; 5.125 V at input signal overrange

Ambient Temperature: -20 … 60 °C

Dimensions: 20 X 119 X 115 mm

Protection Degree: IP20

Weight: approx. 0.11 Kg
