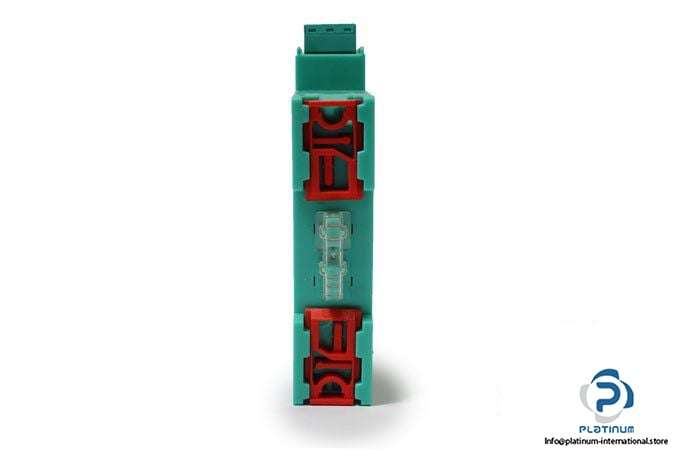

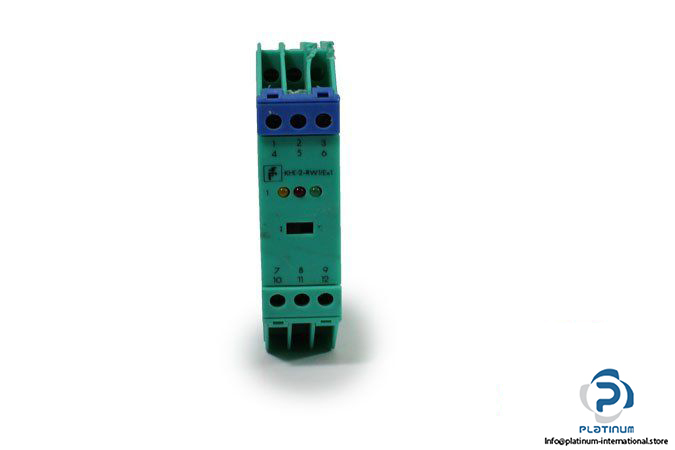

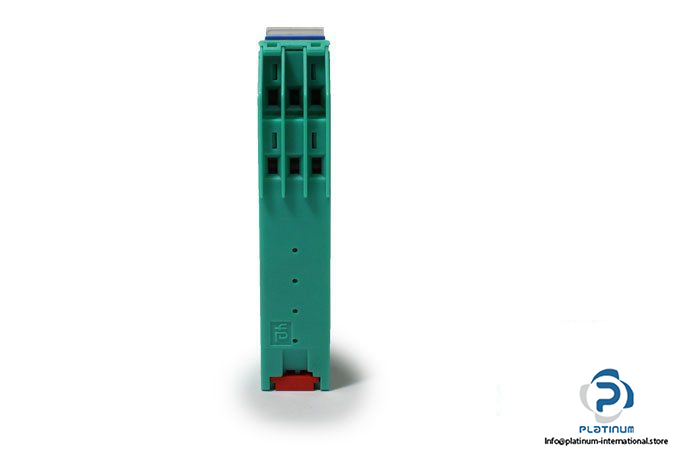

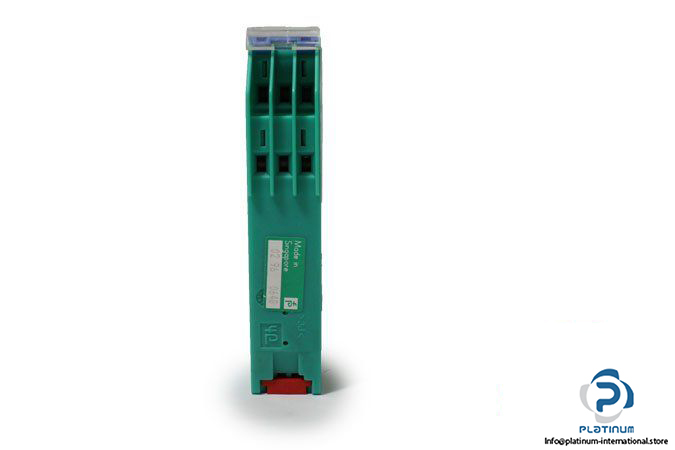

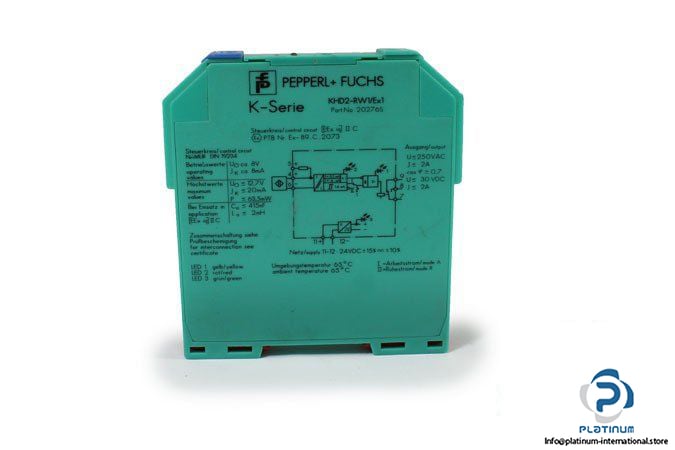

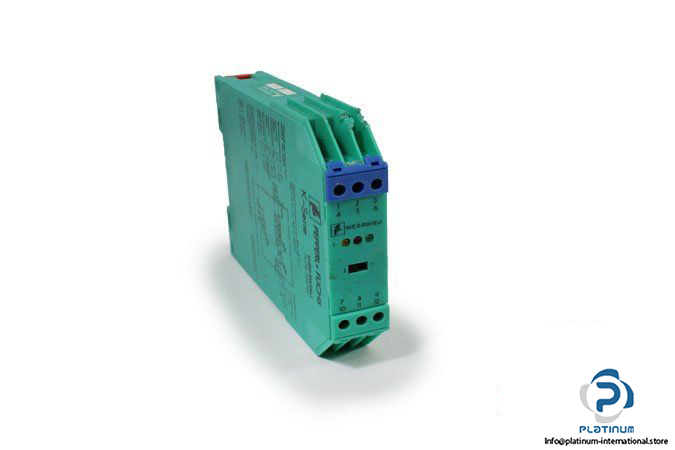

Pepperl+Fuchs KHD2-RW1/EX1 Transformer Isolated Barrier

Manufacturer: PEPPERL+FUCHS

Type: TRANSFORMER ISOLATED BARRIER

Model: KHD2-RW1/EX1

Part No.: 20276S

Nominal Voltage: 20.4  … 27.6 VDC

Max. Current Consumption: 30 mA

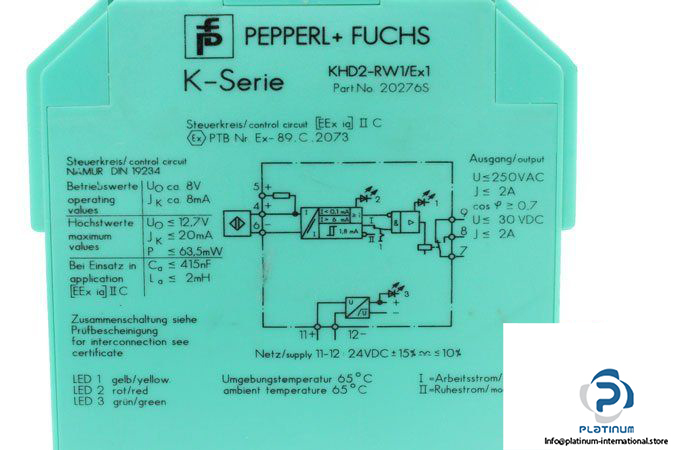

Connection: Terminals 11 (L+), 12 (L-)

Field Circuit:

Connection: Terminals 4+, 5+, 6-

Open Circuit Voltage / Short Circuit Current: ≈ DC 8 V / ≈ 8 Ma

Switch Point / Switching Hysteresis: 1.2 mA … 2.1 mA / ≈ 0.2 mA

Input Pulse Length / Input Pulse Pause: > 20 ms / > 20 ms

Output:

Connection: Terminals 7, 8, 9

Contact Load: AC: 250 V / 2 A / cos ϕ > 0.7; DC: 30 V / 2 A resistance load

Response Time Energising Delay / De-Energising Delay: ≈ 20 ms / ≈ 20 ms

Ambient Temperature: -20 … 65 °C

Protection Degree: IP20

Weight: approx. 0.15 Kg

Dimensions: 20 X 107 X 115 mm
