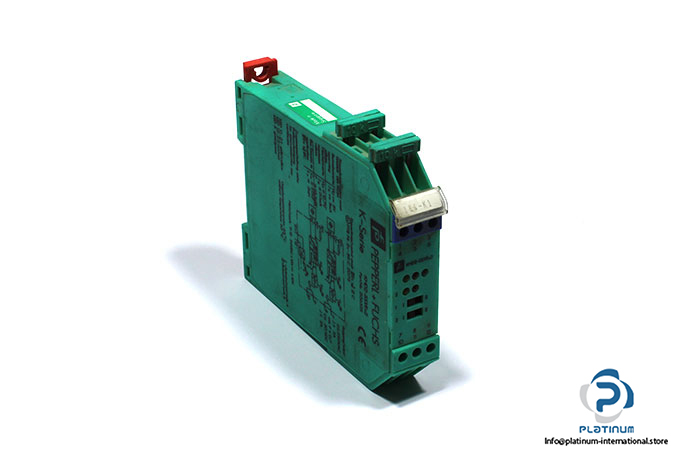

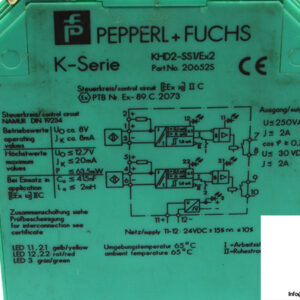

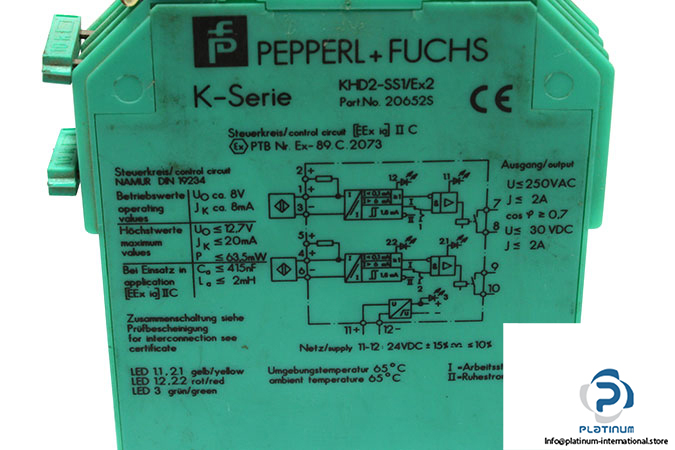

Pepperl+Fuchs KHD2-SS1/EX2 Isolated Switch Amplifier

In stock2 unitsReady to ship
SKU
995759
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: PEPPERL+FUCHS

Type:
Isolated Switch Amplifier

Model:
KHD2-SS1/EX2

Part No.:
20652S

Supply Voltage: 24 VDC

Max. Current Consumption:
30 mA

Input:

Connection: terminals
1+, 2+, 4+, 5+, 3-, 6-

Open Circuit Voltage / Short Circuit Current: ≈
DC 8 V / ≈ 8 Ma

Switch Point / Switching Hysteresis:
1.2 mA … 2.1 mA / ≈ 0.2 mA

Input Pulse Length / Input Pulse Pause:
> 20 ms / > 20 ms

Output:

Connection: terminals
7, 8, 9, 10

Contact Load:
AC: 250 V / 2 A / cos ϕ > 0.7; DC: 30 V / 2 A resistance load

Response Time Energising Delay / De-Energising Delay:
≈ 20 ms / ≈ 20 ms

Ambient Temperature: -20 … 65 °C

Protection Degree:
 IP20

Dimensions:
20 X 119 X 115 mm

Weight: 0.2 Kg
