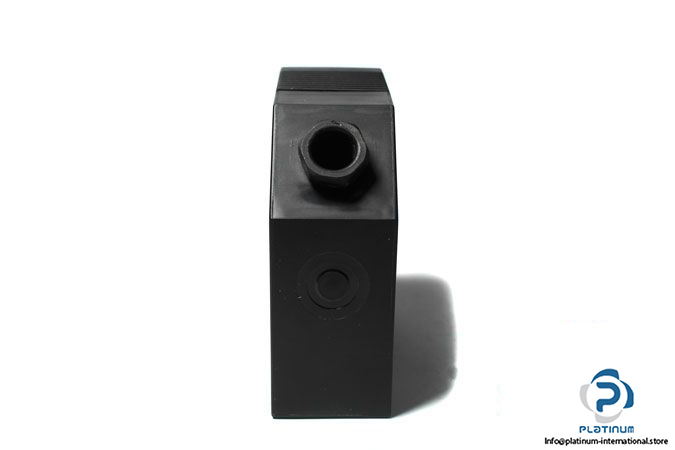

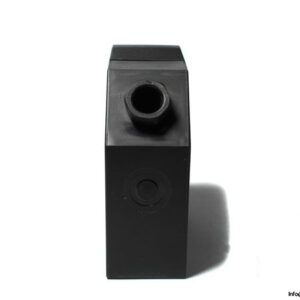

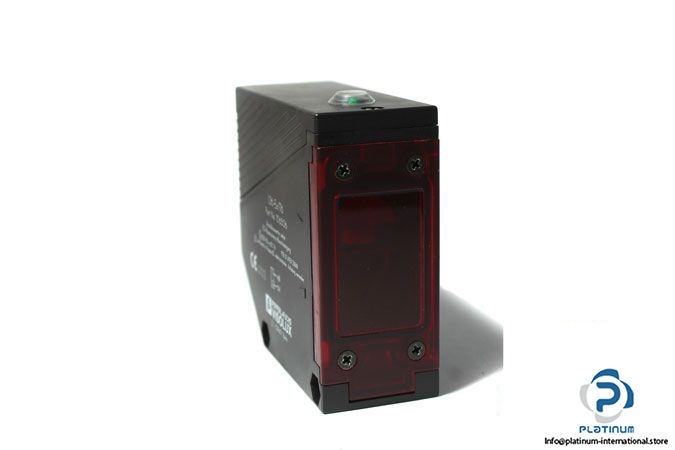

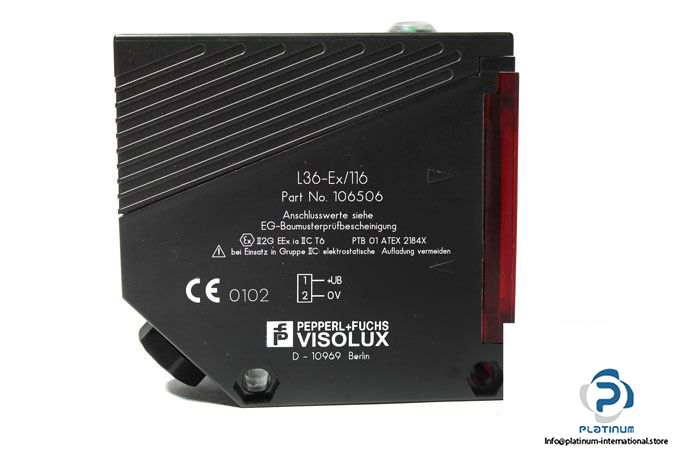

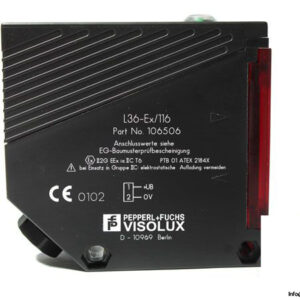

PEPPERL+FUCHS L36-Ex/116 EMITTER THRU-BEAM SENSOR

Manufacturer: Pepperl Fuchs

Type: Emitter Thru-Beam sensor

Model: L36-Ex/116

Part No.: 106506

Effective Detection Range: 0 … 30 m

Threshold Detection Range: 30 m

Light Source: LED , 660 nm

Light Type: Modulated Visible Red Light

Ambient Light Limit:

≤ 10000 Lux Sun Light

≤ 7500 Lux Halogen Light

Operating Voltage: 6 … 16 V DC

Current Consumption: Emitter: ≥ 2.2 mA , Receiver

Ambient Temperature: -25 … 70 °C

Degree of Protection: IP54

Connection: Terminal Compartment PG9

Housing: PMMA

Dimensions: 34 x 85 x 80 mm

Weight: 0.05 kg
