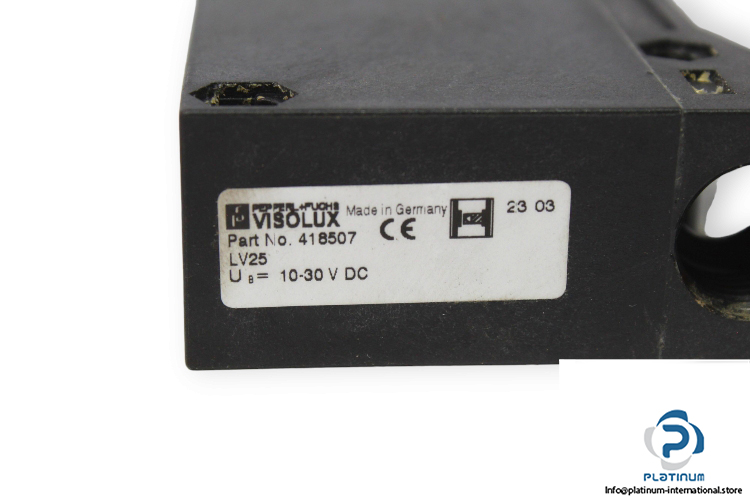

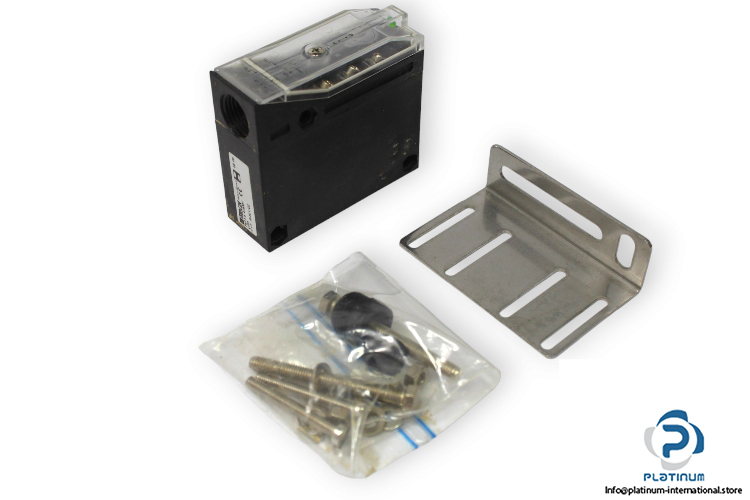

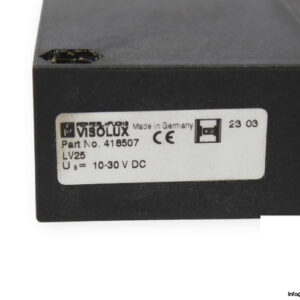

Pepperl+Fuchs LV25 Thru Beam Sensor

Manufacture: Pepperl+Fuchs
Type: Thru-beam sensor
Model: LV25
Part No.: 418507

Operating voltage: 10 … 30 V DC
No-load supply current: 40 mA
Test input: Emitter deactivation
Effective detection range: 0 … 30 m
Threshold detection range: 45 m
Light source: IRED
Obstacle size: 18 mm
Light type: infrared, modulated light
Diameter of the light spot: 350 mm at a distance of 10 m
Angle of divergence: Emitter: approx. 2 °, receiver: approx. 4 °
Ambient light limit: 60000 Lux
Output of the pre-fault indication: 1 pnp

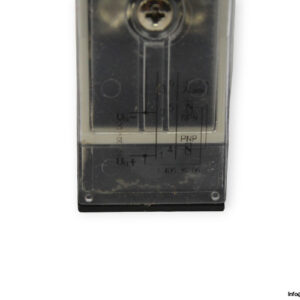

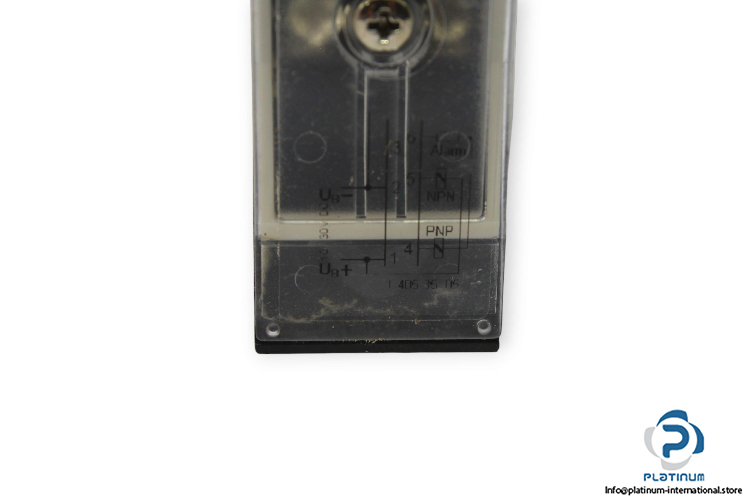

Signal output: 1 npn, 1 pnp synchronised-switching, short-circuit proof, protected against reverse polarity
Switching type: Light/dark ON, switchable
Response time: 2 ms
Protection degree: IP65
Connection: terminal compartment
Material: Housing: Terluran GV15, Optical face: glass
Ambient temperature: -20 … 60 °C
Dimensions: 72 x 63.5 x 25 mm
