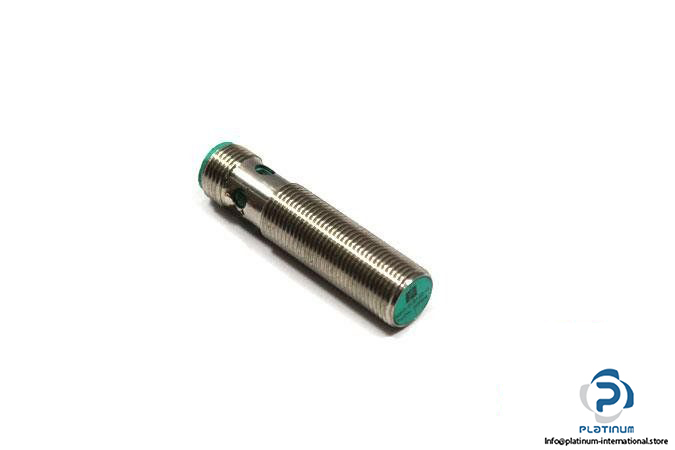

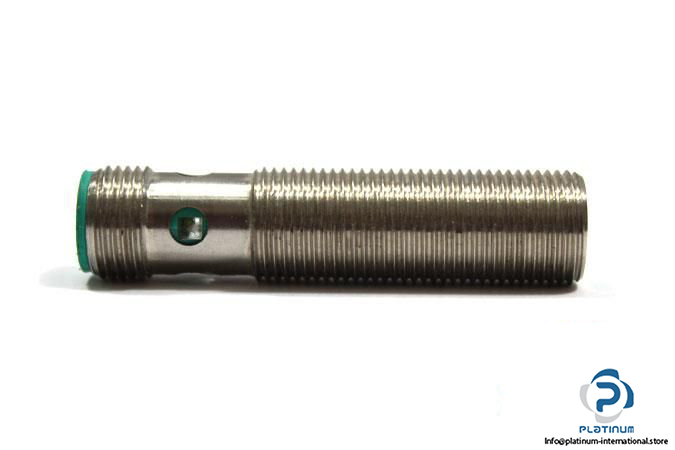

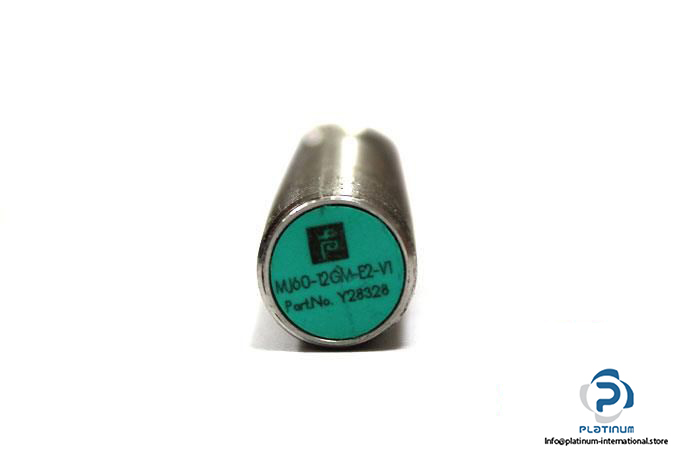

Pepperl+Fuchs MJ60-12GM-E2-V1 Magnetic Proximity Switch

Manufacturer: PEPPERL FUCHS

Type: MAGNETIC PROXIMITY SWITCHES

Model: MJ6012GME2V1

Part No.: Y28328

Rated Operating Distance: 60 mm

Assured Operating Distance: 0 …48.6 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching Frequency: 0 … 400 Hz

Electrical Design: PNP

Switching Output: Normally Open

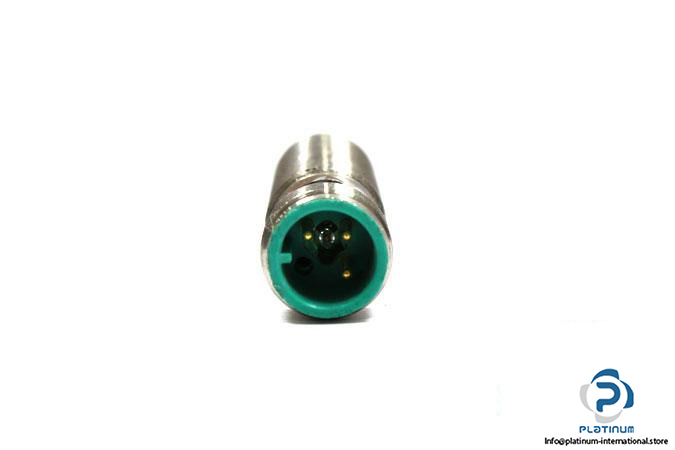

Connector Type: M12 Connector, 3-pin

Protection Class: II

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70°C

Diameter, Housing Length: 12, 51 mm

Housing Material: High Grade Steel

Sensing Face Material: PBT

Mounting: Flush Mountable
