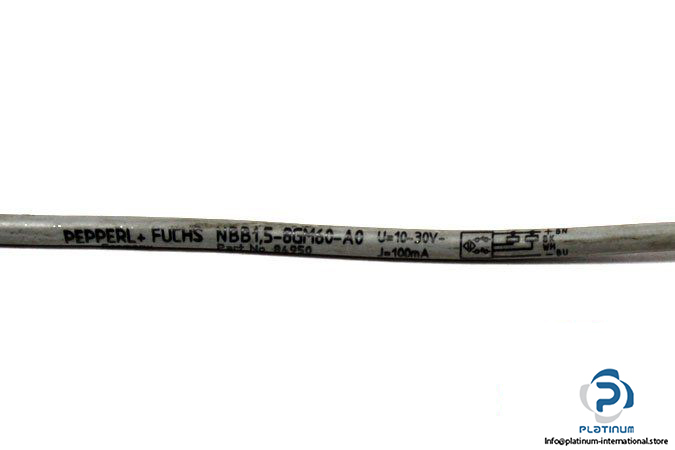

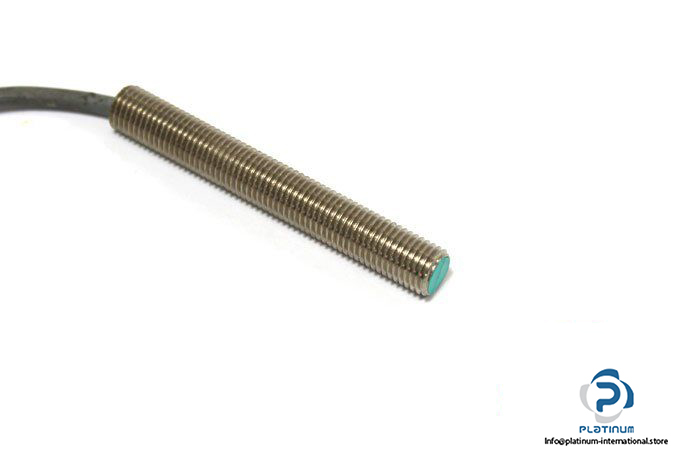

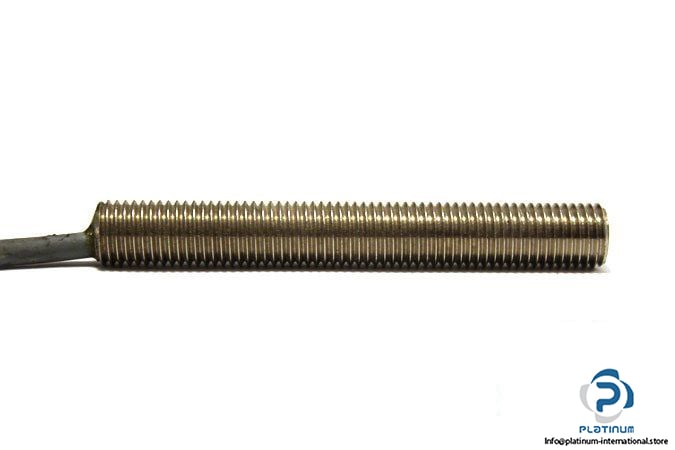

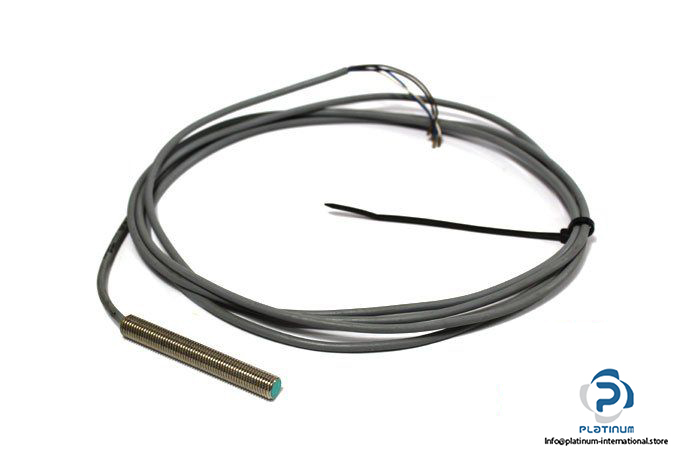

Pepperl+Fuchs NBB1,5-8GM60-A0 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NBB1.58GM60A0

Part No.: 84950

Rated operating distance: 0 … 1.5 mm

Assured operating distance: 0 … 1.215 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 100 mA

Switching frequency: 0 … 1500 Hz

Electrical design: NPN

Switching output: Normally open/Normally closed

Connector type: PVC Cable, 2 m

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 8, 60 mm

Housing material: Brass, nickel plated

Sensing face material: LCP

Mounting: Flush-mountable
